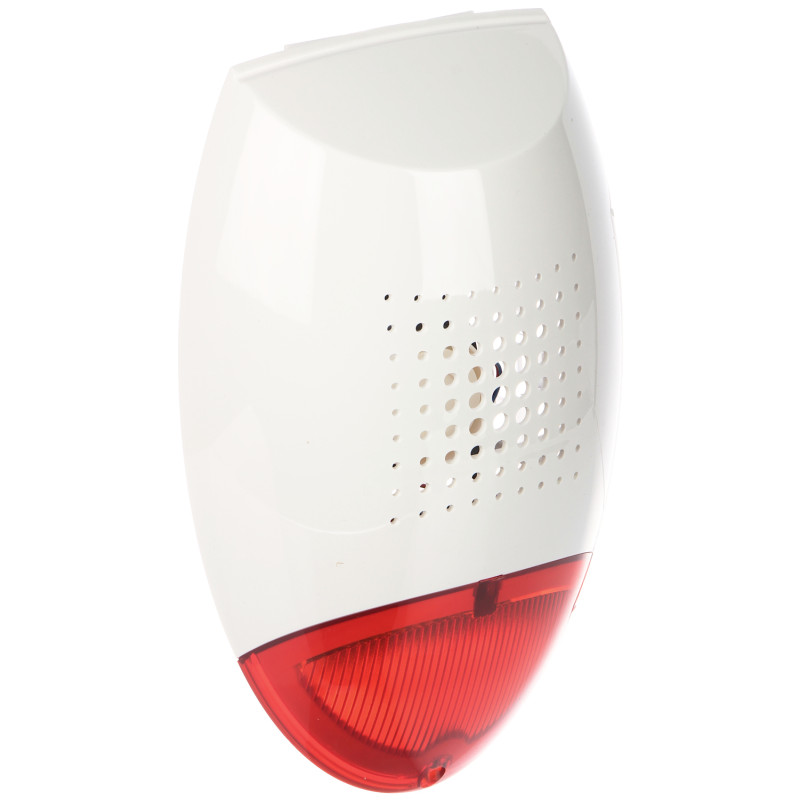

External Piezoelectric Optical-Acoustic Alarm Siren Red Anti-Sabotage Durable SATEL SP-500-R
zł193.13
Tax included
Professional external optical-acoustic siren designed for the highest level of security in alarm systems. This model performs the warning function in two ways: through intense light signals emitted by a red lamp and a powerful sound signal with an intensity of up to 120 dB, generated by a reliable piezoelectric transducer.
The device has been built for many years of operation in harsh outdoor conditions. The electronic circuit is made using advanced SMD technology, which translates into operational stability. Additionally, the entire electronics have been impregnated with a special protective agent that protects components against moisture, dust, and corrosion. The housing made of high-impact polycarbonate is extremely resistant to mechanical damage, impacts, and UV radiation, which prevents it from discoloring and crumbling over time.
A key advantage of the device is the extensive anti-sabotage system. It protects the system against attempts to neutralize the siren by detecting both the opening of the housing cover and the attempt to tear the entire device from the wall. Thanks to this, any attempt at interference by unauthorized persons will be immediately detected by the alarm control panel. The siren features a modern, aesthetic design that perfectly blends with the facade of modern buildings, maintaining an impeccable visual state for many years.
PRODUCT ADVANTAGES:
- Dual signaling (optical and acoustic) guarantees high deterrent effectiveness.
- High sound intensity (120 dB) audible from a long distance.
- Polycarbonate housing with extreme resistance to acts of vandalism.
- Full anti-sabotage protection increasing the security of the entire facility.
- Impregnation of electronics allowing for operation in extreme temperatures and high humidity.
- Energy efficiency while maintaining maximum alarm performance.
External Piezoelectric Optical-Acoustic Alarm Siren Red Anti-Sabotage Durable
Model: SATEL SP-500-R
EAN: 6931240036631 SKU: 931036633
- Acoustic signaling via piezoelectric transducer
- Optical signaling via red lamp
- Full anti-sabotage protection against housing opening
- Protection against tearing the device from the mounting surface
- Housing made of high-impact UV-resistant polycarbonate
- Electronics designed using surface-mount technology (SMD)
- Impregnated electronic circuits resistant to weather conditions
- Adapted for operation in a wide temperature range from -35°C to +60°C
Description
Professional external optical-acoustic siren designed for the highest level of security in alarm systems. This model performs the warning function in two ways: through intense light signals emitted by a red lamp and a powerful sound signal with an intensity of up to 120 dB, generated by a reliable piezoelectric transducer.
The device has been built for many years of operation in harsh outdoor conditions. The electronic circuit is made using advanced SMD technology, which translates into operational stability. Additionally, the entire electronics have been impregnated with a special protective agent that protects components against moisture, dust, and corrosion. The housing made of high-impact polycarbonate is extremely resistant to mechanical damage, impacts, and UV radiation, which prevents it from discoloring and crumbling over time.
A key advantage of the device is the extensive anti-sabotage system. It protects the system against attempts to neutralize the siren by detecting both the opening of the housing cover and the attempt to tear the entire device from the wall. Thanks to this, any attempt at interference by unauthorized persons will be immediately detected by the alarm control panel. The siren features a modern, aesthetic design that perfectly blends with the facade of modern buildings, maintaining an impeccable visual state for many years.
PRODUCT ADVANTAGES:
- Dual signaling (optical and acoustic) guarantees high deterrent effectiveness.
- High sound intensity (120 dB) audible from a long distance.
- Polycarbonate housing with extreme resistance to acts of vandalism.
- Full anti-sabotage protection increasing the security of the entire facility.
- Impregnation of electronics allowing for operation in extreme temperatures and high humidity.
- Energy efficiency while maintaining maximum alarm performance.
Specification
Device type
External optical-acoustic siren designed for intrusion and robbery alarm systems.
Acoustic signaling
Piezoelectric transducer generating a modulated sound signal with high frequency and volume.
Sound intensity level
120 dB - measured directly at the device, ensuring audibility in a loud urban environment.
Optical signaling
Built-in lamp with a red lens, performing the flashing function during an alarm trigger.
Supply voltage
12 V DC (direct current) with a tolerance of +/- 15%, allowing for stable cooperation with most alarm control panels.
Maximum current consumption
285 mA - total current consumption during simultaneous operation of the siren and optical lamp.
Anti-sabotage protection (Tamper)
Dual protection: contact detecting housing opening and contact reacting to being torn from the building wall.
Housing construction
Made of PC polycarbonate with increased resistance to mechanical impacts (IK) and sunlight exposure.
Production technology
SMD surface mounting guaranteeing miniaturization and high reliability of integrated circuits.
Electronics protection
Mainboard covered with a special impregnating coating (insulating varnish) protecting against water condensation.
Internal battery
None - the device requires constant power from a buffer power supply or alarm control panel board.
Operating temperature
Extreme range from -35 °C to +60 °C, allowing for installation in all climatic conditions.
Physical dimensions
300 x 195 x 97 mm - optimal size ensuring device visibility from ground level.
Device weight
660 grams net, which facilitates installation on various types of facades, including insulation.
Recommended cables
Standard YTDY alarm cable or UTP computer twisted pair for connection to the control panel.
Contents
1x Complete siren
1x Mounting screws and plugs
1x Installation manual
Dimensions, Weight
Product dimensions: 97 x 195 x 300 mm (D x W x H)
Packaging dimensions: 100 x 200 x 310 mm (D x W x H)
Product weight: 660 g
Weight with packaging: 872 g
