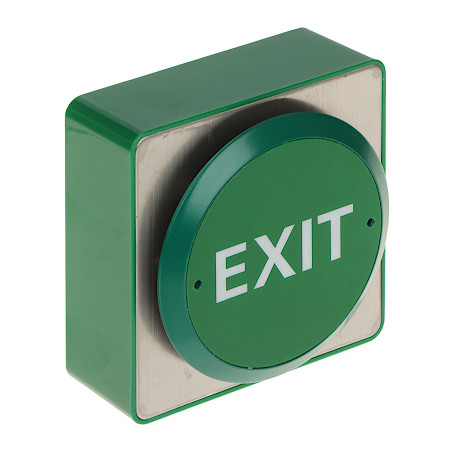

Hermetic Emergency Exit Button IP65 Access Control Green NO NC Monostable Switch Delta PW-86E
zł188.93
Tax included
The PW-86E door release button is a professional component for access control systems, designed for reliability and durability in demanding operating conditions. It is a monostable device, meaning it returns to its original position immediately after pressure is released, generating the impulse necessary to trigger an electric strike or electromagnetic lock.
A key advantage of the PW-86E model is its high IP65 ingress protection rating. Thanks to its hermetic design, the button is completely protected against dust ingress and resistant to water jets, making it an ideal solution for installation not only inside buildings but also in areas exposed to moisture or dust, such as production halls, warehouses, or covered outdoor entrances.
The device's construction, based on a combination of metal and high-quality plastic, guarantees resistance to mechanical damage and a long service life. The aesthetic green color complies with exit identification and evacuation system standards, facilitating intuitive location of the button in situations requiring quick evacuation from a room.
The button offers connection versatility thanks to NO (Normally Open) and NC (Normally Closed) type contacts. This allows for integration with almost any access controller or keypad lock available on the market. The device features a contact rating of 3A at 36V DC, which is fully sufficient for standard electric locks used in technical security systems.
Hermetic Emergency Exit Button IP65 Access Control Green NO NC Monostable Switch
Model: Delta PW-86E
EAN: 6931240055373 SKU: 931055379
- Monostable (momentary) button for access control systems
- Hermetic housing with high IP65 ingress protection rating
- Universal NO and NC type outputs
- Robust construction made of metal and durable plastic
- Distinctive green color for easy location
- High contact rating up to 3A / 36V DC
- Designed for surface mounting
- Resistance to harsh environmental and atmospheric conditions
Description
The PW-86E door release button is a professional component for access control systems, designed for reliability and durability in demanding operating conditions. It is a monostable device, meaning it returns to its original position immediately after pressure is released, generating the impulse necessary to trigger an electric strike or electromagnetic lock.
A key advantage of the PW-86E model is its high IP65 ingress protection rating. Thanks to its hermetic design, the button is completely protected against dust ingress and resistant to water jets, making it an ideal solution for installation not only inside buildings but also in areas exposed to moisture or dust, such as production halls, warehouses, or covered outdoor entrances.
The device's construction, based on a combination of metal and high-quality plastic, guarantees resistance to mechanical damage and a long service life. The aesthetic green color complies with exit identification and evacuation system standards, facilitating intuitive location of the button in situations requiring quick evacuation from a room.
The button offers connection versatility thanks to NO (Normally Open) and NC (Normally Closed) type contacts. This allows for integration with almost any access controller or keypad lock available on the market. The device features a contact rating of 3A at 36V DC, which is fully sufficient for standard electric locks used in technical security systems.
Specification
Contact type
NO/NC, monostable - The button has one contact that changes its state when pressed. Can be configured as a normally open (NO) or normally closed (NC) contact.
Contact rating
3 A / 36 V DC - The maximum current that can safely flow through the device contacts at 36V DC is 3 Amperes.
Material
Metal + Plastic - The combination of a metal base with plastic finishing elements provides a compromise between mechanical strength and aesthetics.
Ingress protection rating
IP65 - Full protection against dust and protection against water jets (12.5 l/min) sprayed onto the housing from any direction. Allows for installation in high humidity conditions.
Color
Green - Standard color for exit buttons and door lock release systems.
Warranty
2 years (24 months) provided by the manufacturer for the proper mechanical and electrical operation of the device.
Mounting type
Surface-mounted - Device adapted for installation directly on a wall or other flat surface.
Application
Access control systems, electric strike release, electromagnetic lock operation, intercom and video intercom systems.
Operating environment
Button adapted for operation both inside and outside buildings thanks to IP65 resistance.
System support
Compatible with brands such as Roger, ATLO, Hikvision, Dahua, and other systems operating on potential-free contacts.
NO/NC contact functions
NO (Normally Open) - circuit closed when pressed; NC (Normally Closed) - circuit interrupted when pressed.
Operating characteristics
Monostable operation - means the button has one stable resting state to which it returns automatically after releasing the key.
Electrical durability
Designed for a high number of switching cycles at full rated load.
UV resistance
Housing made of materials with increased resistance to discoloration caused by solar radiation.
Contents
1x PW-86E door release button
1x Set of mounting screws
Dimensions, Weight
Product dimensions: 40 x 89 x 89 mm (D x W x H)
Package dimensions: 48 x 105 x 93 mm (D x W x H)
Product weight: 250 g
Weight with packaging: 278 g
