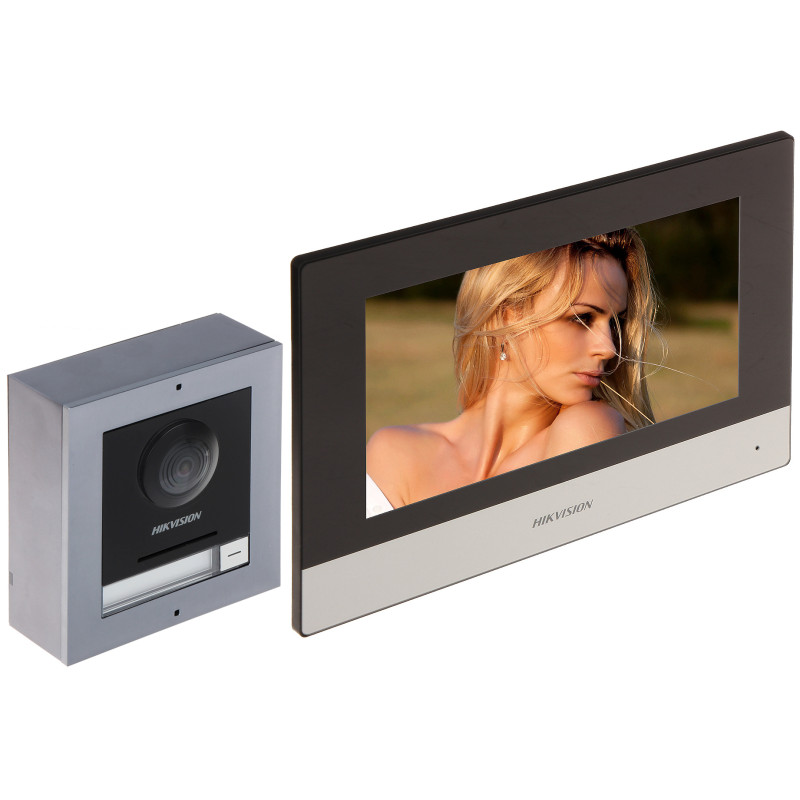

2-Wire IP Video Intercom Kit 7 inch WiFi LCD HD Hik-Connect Hikvision DS-KIS702Y
zł4,086.33
Tax included
The DS-KIS702Y video intercom kit by Hikvision is a modern solution for those seeking the highest level of security and convenience in managing property access. Thanks to the innovative 2-wire technology (Y-Series), this system is an ideal choice for both new buildings and modernized facilities, as it allows for the transmission of IP signals and power using only two wires, often enabling the reuse of existing intercom cabling.
The kit's door station is equipped with a high-class Full HD 1080p camera with a 2.1 Mpx CMOS sensor, which offers an unprecedented wide viewing angle of 146 degrees. This guarantees a full view of the area in front of the entrance, eliminating blind spots. Advanced image enhancement features, such as True WDR (Wide Dynamic Range) and digital noise reduction (DNR), ensure that the image remains clear and legible even in strong sunlight or at night, when supported by the integrated IR illuminator.
The heart of the system inside the house is an elegant, 7-inch monitor with a high-resolution capacitive touch screen. The device has a built-in WiFi module, which enables instant connection to the home network and operation of the video intercom via the free Hik-Connect mobile app. This allows the user to answer video calls, talk to visitors, and remotely open the gate or wicket from anywhere in the world via a smartphone.
The kit is extremely resistant to external factors – the door station has an IP65 ingress protection rating, which protects it from rain and dust. The system also supports MicroSD cards up to 128 GB, which allows for saving photos and short voice messages from visitors when residents are away. It is a comprehensive, intelligent solution that combines simple installation with powerful network and mobile features.
2-Wire IP Video Intercom Kit 7 inch WiFi LCD HD Hik-Connect
Model: Hikvision DS-KIS702Y
EAN: 6931240088630 SKU: 931088631
- Complete Hikvision 2-wire video intercom system
- Door station with Full HD 1080p camera and 146° wide viewing angle
- 7-inch touch LCD monitor with built-in WiFi module
- Full remote support via Hik-Connect mobile app (iOS/Android)
- True WDR function for excellent visibility in difficult lighting conditions
- Two-way communication with noise and echo cancellation
- Integration capability with Hikvision IP surveillance cameras
- Robust metal door station housing with IP65 ingress protection
- MicroSD card support up to 128 GB for photo and video recording
- Easy surface mounting using existing wiring
Description
The DS-KIS702Y video intercom kit by Hikvision is a modern solution for those seeking the highest level of security and convenience in managing property access. Thanks to the innovative 2-wire technology (Y-Series), this system is an ideal choice for both new buildings and modernized facilities, as it allows for the transmission of IP signals and power using only two wires, often enabling the reuse of existing intercom cabling.
The kit's door station is equipped with a high-class Full HD 1080p camera with a 2.1 Mpx CMOS sensor, which offers an unprecedented wide viewing angle of 146 degrees. This guarantees a full view of the area in front of the entrance, eliminating blind spots. Advanced image enhancement features, such as True WDR (Wide Dynamic Range) and digital noise reduction (DNR), ensure that the image remains clear and legible even in strong sunlight or at night, when supported by the integrated IR illuminator.
The heart of the system inside the house is an elegant, 7-inch monitor with a high-resolution capacitive touch screen. The device has a built-in WiFi module, which enables instant connection to the home network and operation of the video intercom via the free Hik-Connect mobile app. This allows the user to answer video calls, talk to visitors, and remotely open the gate or wicket from anywhere in the world via a smartphone.
The kit is extremely resistant to external factors – the door station has an IP65 ingress protection rating, which protects it from rain and dust. The system also supports MicroSD cards up to 128 GB, which allows for saving photos and short voice messages from visitors when residents are away. It is a comprehensive, intelligent solution that combines simple installation with powerful network and mobile features.
Specification
System standard
HIKVISION 2-wire - Y series (IP over 2 wires)
Outdoor station - Camera
2.1 Mpx CMOS sensor, Resolution 1920 x 1080 (1080p), Viewing angle 146°, Compression H.264
Outdoor station - Image functions
True WDR (Wide Dynamic Range), DNR (Digital Noise Reduction), BLC (Backlight Compensation), Motion detection
Outdoor station - Audio
Built-in microphone and speaker, Two-way communication, Audio noise suppression and echo cancellation
Outdoor station - Interfaces
1x Bell button, 4x Alarm input, 2x Relay output NO/NC, Tamper sensor (detachment from surface)
Outdoor station - Housing
Ingress protection IP65, Material: Metal + Plastic, Dimensions: 100 x 98 x 44 mm, Weight: 0.38 kg
Monitor - Display
7 inches, Capacitive touch screen, Resolution 1024 x 600 px
Monitor - Network and Communication
Built-in Wi-Fi module (IEEE 802.11 b/g/n), Compatibility with Hikvision IP cameras, Intercom between monitors
Monitor - Memory and Functions
Built-in memory 128 MB, Support for microSD cards up to 128 GB (16 GB included), Saving photos and voice messages
Monitor - Interfaces
8x Alarm input, 2x Alarm output, Dimensions: 200 x 140 x 25 mm, Weight: 0.32 kg
Distributor (2-wire switch)
6 HIKVISION 2-wire ports (4 for devices, 2 cascading), 1x RJ-45 LAN, DIN rail mounting TS-35, Dimensions: 144 x 90 x 66 mm
Software
The device works with the Hikvision ecosystem via iVMS-4200 software (PC) and the Hik-Connect mobile app (Android/iOS). The Hik-Connect app allows the user to receive video calls in real-time, conduct two-way conversations with the person at the entrance, and remotely control the electric strike and gate from anywhere in the world. The iVMS-4200 software is used for full technical configuration of the system, permission management, and integration with NVR recorders and IP surveillance cameras, which allows for creating one coherent security system in the facility.
Power supply
24 V DC (via 2-wire controller), Door station power consumption: < 4W, Monitor power consumption: ≤ 4W
Environmental conditions
Station operating temperature: -40 °C ... 60 °C, Monitor operating temperature: -10 °C ... 50 °C
General data
Supported languages: Polish and 14 others, Warranty: 3 years, SAP code: 305303992
Contents
1x Outdoor station (Video intercom)
1x Indoor panel (7" LCD monitor)
1x Modular surface housing
1x 2-wire switch / Distributor
1x System power supply
1x 16GB MicroSD memory card
1x Mounting accessories kit
Dimensions, Weight
Product dimensions: 25 x 200 x 140 mm (D x W x H)
Package dimensions: 170 x 395 x 185 mm (D x W x H)
Product weight: 1170 g
Weight with packaging: 1970 g
