- New

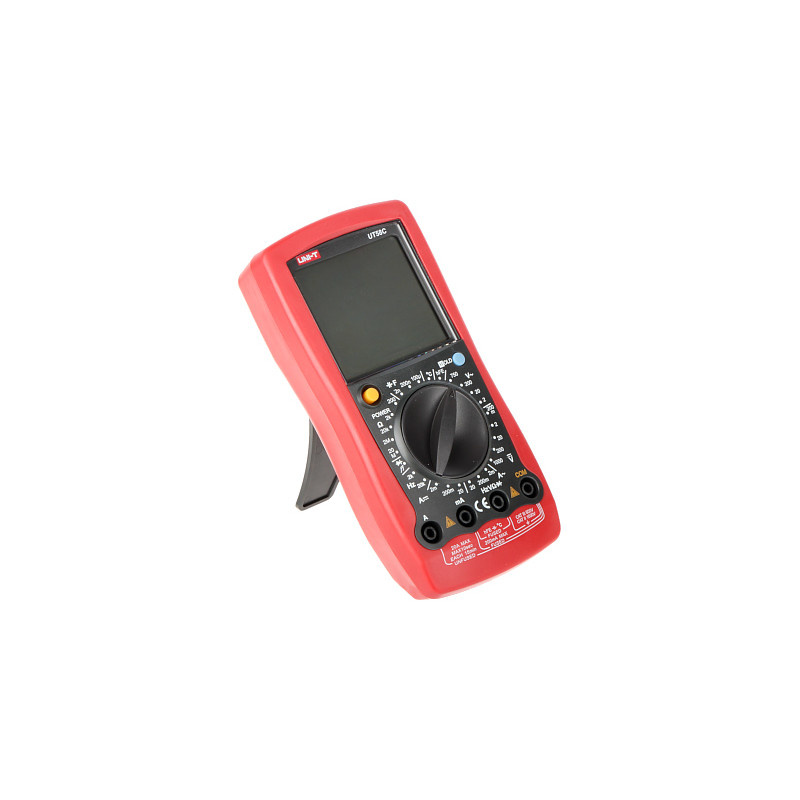

Digital Universal Multimeter LCD Temperature hFE Capacitance AC DC Measurement UNI-T UT-58C
zł212.48
Tax included
The UNI-T UT-58C is an advanced universal meter that is an essential tool in every professional electronics workshop and home DIY studio. The device is characterized by exceptional precision and a wide range of measured values, which makes it one of the most versatile multimeters in its class. Thanks to it, you can precisely measure DC and AC voltage, current intensity, as well as resistance and capacitor capacitance.
The advantage of the device is a large, extremely clear LCD display equipped with a backlight, which allows for comfortable work even in poorly lit places. A solid, ergonomic housing with a rubber holster ensures a secure grip and protects the meter against mechanical damage and falls. The Data Hold function allows you to calmly read the measurement result in difficult conditions.
The multimeter also offers the possibility of testing hFE transistors and diodes, which, combined with audible circuit continuity signaling, makes fault diagnostics fast and intuitive. An additional advantage is the temperature measurement function in a wide range, which allows for monitoring the heat generated by electronic circuits. The device has a built-in automatic shutdown system after 15 minutes of inactivity, which significantly extends battery life. By choosing the UT-58C model, you are investing in proven technology from the renowned manufacturer UNI-T, guaranteeing the reliability of results and safety of use in accordance with international standards.
Digital Universal Multimeter LCD Temperature hFE Capacitance AC DC Measurement
Model: UNI-T UT-58C
EAN: 6931240043967 SKU: 931043962
- Measurement of a wide spectrum of parameters: Voltage, Current, Resistance, Capacitance, Frequency, Temperature
- Large and clear LCD display with backlight function
- Data Hold function allowing to freeze the measurement result on the screen
- Possibility to test transistors (hFE) and semiconductor diodes
- Audible circuit continuity signaling (Buzzer)
- Auto Power Off system turning off the device after 15 minutes of inactivity
- Low battery indicator
- Durable housing with protective holster and stand
- Measurement adapter included to facilitate component testing
- Powered by a standard 9V battery included in the set
Description
The UNI-T UT-58C is an advanced universal meter that is an essential tool in every professional electronics workshop and home DIY studio. The device is characterized by exceptional precision and a wide range of measured values, which makes it one of the most versatile multimeters in its class. Thanks to it, you can precisely measure DC and AC voltage, current intensity, as well as resistance and capacitor capacitance.
The advantage of the device is a large, extremely clear LCD display equipped with a backlight, which allows for comfortable work even in poorly lit places. A solid, ergonomic housing with a rubber holster ensures a secure grip and protects the meter against mechanical damage and falls. The Data Hold function allows you to calmly read the measurement result in difficult conditions.
The multimeter also offers the possibility of testing hFE transistors and diodes, which, combined with audible circuit continuity signaling, makes fault diagnostics fast and intuitive. An additional advantage is the temperature measurement function in a wide range, which allows for monitoring the heat generated by electronic circuits. The device has a built-in automatic shutdown system after 15 minutes of inactivity, which significantly extends battery life. By choosing the UT-58C model, you are investing in proven technology from the renowned manufacturer UNI-T, guaranteeing the reliability of results and safety of use in accordance with international standards.
Specification
DC voltage measurement
200 mV ± (0.5% + 1) @ 0.1 mV ; 2 V ± (0.5% + 1) @ 1 mV ; 20 V ± (0.5% + 1) @ 10 mV ; 200 V ± (0.5% + 1) @ 100 mV ; 1000 V ± (0.8% + 2) @ 1 V
AC voltage measurement
2 V ± (0.8% + 3) @ 1 mV ; 20 V ± (0.8% + 3) @ 10 mV ; 200 V ± (0.8% + 3) @ 100 mV ; 750 V ± (1.2% + 3) @ 1 V
DC current measurement
2 mA ± (0.8% + 1) @ 1 µA ; 200 mA ± (1.5% + 1) @ 0.1 mA ; 20 A ± (2% + 5) @ 10 mA
AC current measurement
2 mA ± (1% + 3) @ 1 µA ; 200 mA ± (1.8% + 3) @ 0.1 mA ; 20 A ± (3% + 5) @ 10 mA
Resistance measurement
200 Ω ± (0.8% + 3) @ 0.1 Ω ; 2 kΩ ± (0.8% + 1) @ 1 Ω ; 20 kΩ ± (0.8% + 1) @ 10 Ω ; 2 MΩ ± (0.8% + 1) @ 1 kΩ ; 20 MΩ ± (1% + 2) @ 10 kΩ ; 200 MΩ ± (5% + 10) @ 100 kΩ
Capacitance measurement
2 nF ± (4% + 3) @ 1 pF ; 200 nF ± (4% + 3) @ 0.1 nF ; 100 µF ± (5% + 4) @ 0.1 µF
Frequency measurement
2 kHz ± (1.5% + 5) @ 0.001 kHz ; 20 kHz ± (1.5% + 5) @ 0.01 kHz
Temperature measurement
-40 °C ... 0 °C ± (3% + 9) @ 1 °C ; 1 °C ... 400 °C ± (1% + 7) @ 1 °C ; 401 °C ... 1000 °C ± (2% + 10) @ 1 °C
Semiconductor tests
hFE transistor gain measurement (adapter included); Diode test (checking voltage drop across the junction)
Continuity signaling
Built-in buzzer responding to low circuit resistance
Display and operation
Large LCD screen with white backlight; Data Hold mode (freezing the result); Manual range selection via dial
Energy saving
Auto Power Off function automatically disconnecting power after 15 minutes of inactivity; Low battery voltage alarm
Interface and system
The device is equipped with an advanced signal processor optimizing the result refresh rate. The device logic ensures precise analog-to-digital conversion. The meter's operating system continuously monitors input parameters, preventing erroneous readings at low energy levels. Built-in ambient temperature compensation algorithms ensure the stability of resistance and capacitance measurements even in variable environmental conditions.
Power supply and Safety
9V battery, type 6F22 (included); Design compliant with measuring equipment safety standards
Contents
1x UT-58C universal meter
1x Pair of test leads
1x Temperature probe (thermocouple)
1x Multifunctional adapter
1x 9V battery
1x User manual
Dimensions, Weight
Product dimensions: 39 x 88 x 179 mm (D x W x H)
Package dimensions: 60 x 160 x 260 mm (D x W x H)
Product weight: 360 g
Weight with packaging: 572 g
