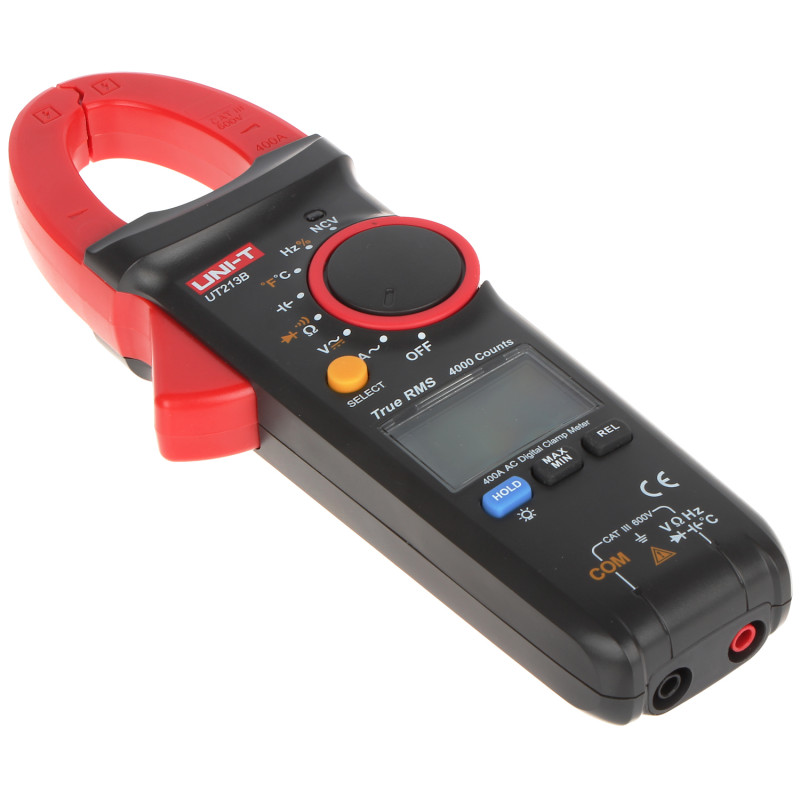

True RMS Digital Clamp Meter NCV Thermometer Ammeter Voltmeter LCD Backlit Flashlight

Model: UNI-T UT-213B

EAN: 6931240066409 SKU: 931066406

• True RMS converter for precise measurements of distorted waveforms
• Non-contact voltage detector NCV for improved work safety
• Wide AC current measurement range up to 400A using clamps
• Temperature measurement function in Celsius and Fahrenheit
• Built-in LED flashlight to illuminate the measurement point
• Large, high-contrast backlit LCD display
• Relative measurement mode REL and MAX/MIN and HOLD functions
• Automatic measurement range selection for greater convenience
• Robust housing and ergonomic shape adapted for one-handed operation
• Complete set with case, test leads, and batteries

Description

A professional clamp meter is an advanced diagnostic tool that combines the functionality of a traditional multimeter with the convenience of non-invasive measurements. The device is designed for installers, service technicians, and demanding hobbyists, offering precise readings across a wide range of electrical parameters. The main advantage of the device is the integrated clamp, which allows for safe measurement of alternating current (AC) intensity without the need to break the circuit, which significantly speeds up work and increases user safety.

A key advantage of the model is the presence of a True RMS converter. This function guarantees a true measurement of the effective value, which is essential when analyzing modern electrical installations generating distorted waveforms (e.g., switching power supplies, inverters). Additionally, the built-in NCV (Non-Contact Voltage) function allows for non-contact detection of voltage presence in wires, which serves as the first line of protection against electric shock. The meter also offers temperature measurement using the included probe, making it a complete tool for diagnosing HVAC systems and control cabinets.

The device is equipped with a large, readable LCD display with strong backlighting, facilitating work in difficult lighting conditions. The ergonomic housing made of high-quality plastic ensures a secure grip and resistance to mechanical damage. Additional features, such as a built-in LED flashlight, relative measurement mode (REL), and data hold function (HOLD), make work much more comfortable and efficient even in tight and dark switchboards.

Specification

DC voltage measurement

400 mV ± (1.0% + 8) @ 0.1 mV ; 4 V ± (0.8% + 1) @ 0.001 V ; 40 V ± (0.8% + 3) @ 0.01 V ; 400 V ± (0.8% + 3) @ 0.1 V ; 600 V ± (1.0% + 3) @ 1 V

AC voltage measurement

4 V ± (1.2% + 5) @ 0.001 V ; 40 V ± (1.2% + 5) @ 0.01 V ; 400 V ± (1.2% + 5) @ 0.1 V ; 600 V ± (1.5% + 5) @ 1 V

AC current measurement

4 A ± (2.5% + 30) @ 0.001 A ; 40 A ± (2.5% + 5) @ 0.01 A ; 400 A ± (1.8% + 9) @ 0.1 A

Resistance measurement

400 Ω ± (1.2% + 2) @ 0.1 Ω ; 4 kΩ ± (1.0% + 2) @ 0.001 kΩ ; 40 kΩ ± (1.0% + 2) @ 0.01 kΩ ; 400 kΩ ± (1.0% + 2) @ 0.1 kΩ ; 4 MΩ ± (1.2% + 3) @ 0.001 MΩ ; 40 MΩ ± (2.0% + 5) @ 0.01 MΩ

Capacitance measurement

40 nF ± (4.0% + 25) @ 0.01 nF ; 400 nF ± (4.0% + 5) @ 0.1 nF ; 4 µF ± (4.0% + 5) @ 0.001 µF ; 40 µF ± (4.0% + 5) @ 0.01 µF ; 400 µF ± (4.0% + 5) @ 0.1 µF ; 4 mF ± 10% @ 0.001 mF ; 40 mF @ 0.01 mF

Frequency measurement

10 Hz ... 1 MHz ± (0.1% + 4) @ 0.01 Hz ... 1 kHz

Temperature measurement °C

-40 ... 40 °C ± (3% + 5) ; 40 ... 400 °C ± (3% + 5) ; 400 ... 1000 °C ± (1% + 3) @ resolution 1 °C

Temperature measurement °F

-40 ... 104 °F ± (3% + 10) ; 104 ... 752 °F ± (3% + 10) ; 752 ... 1832 °F ± (1% + 6) @ resolution 1 °F

True RMS function

Yes - The device allows for precise measurement of the effective value (RMS) of AC voltage and current, regardless of whether the waveform is purely sinusoidal or distorted. This is crucial in modern electronic systems.

NCV function

Yes - Non-Contact Voltage allows for safe detection of an electric field (AC voltage) without the need for direct contact of wires with measurement probes, which is signaled visually or audibly.

Additional functions

REL (relative measurement), Max/Min (highest/lowest reading hold), Hold (screen freeze), Automatic range selection, Diode test, Continuity signaling (buzzer).

Interface and Display

Large LCD display with backlight. No RS-232 / USB interface. Built-in LED flashlight allowing illumination of the measurement point in dark spaces.

Safety and construction

Robust housing made of durable materials, aesthetic finish. Low battery alarm informing about the need to replace power cells.

Power supply and Parameters

Power supply: 3 x 1.5V AAA battery (LR03) - included in the set. Manufacturer warranty: 2 years.

Contents

1x UT-213B Clamp meter

1x Set of test leads

1x Temperature probe (thermocouple)

1x Carrying case

3x 1.5V AAA battery

Dimensions, Weight

Product dimensions: 41 x 77 x 221 mm (D x W x H)

Packaging dimensions: 60 x 90 x 270 mm (D x W x H)

Product weight: 250 g

Weight with packaging: 482 g
