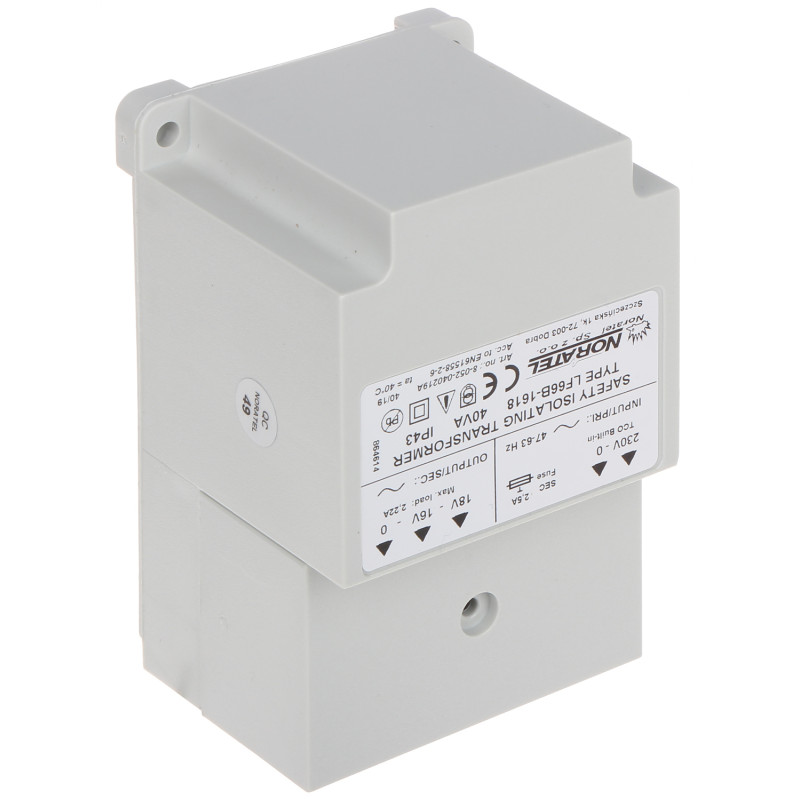

AC Transformer Power Supply 16V 18V 40VA IP44 Safety for Alarm Systems NORATEL TR-40VA/NORATEL
zł198.68
Tax included
The AC power supply is a key component of professional security systems, ensuring stable and safe power for terminal devices. The presented model is a single-phase safety transformer that stands out due to its built-in short-circuit and thermal protection, which significantly increases the protection level of the entire installation. The device has been designed and manufactured in strict compliance with the rigorous European standard EN61558-2-6, confirming its highest quality and reliability in professional applications.
The main advantage of this transformer is its versatility and high resistance to difficult operating conditions. The device windings are completely galvanically isolated and potted with a special polyurethane compound, which provides excellent insulation and protection against moisture. The entire unit is enclosed in a solid, self-extinguishing plastic housing, which minimizes the risk of fire spread in the event of a failure. The transformer offers two output voltages: 16V and 18V AC, allowing for flexible adaptation to the requirements of specific equipment, such as alarm control panel motherboards.
Using this type of power supply is necessary in installations that, according to the CE directive, require circuit separation and the highest degree of user safety. Thanks to a current efficiency of 2.22A and a rated power of 40VA, this product is ideal not only for alarm systems but also for building automation and low-voltage LED and halogen lighting systems. It is worth remembering that for continuous 24-hour operation, it is recommended to use a load not exceeding 80% of the maximum current, which guarantees component longevity and parameter stability over a long time horizon. The product is easy to install thanks to dedicated mounting points and clearly marked terminals under the cover.
AC Transformer Power Supply 16V 18V 40VA IP44 Safety for Alarm Systems
Model: NORATEL TR-40VA/NORATEL
EAN: 6931240061565 SKU: 931061560
- Single-phase safety transformer compliant with EN61558-2-6
- Built-in short-circuit and thermal protection
- Separated windings potted with polyurethane compound
- Robust housing made of self-extinguishing plastic
- Two voltage outputs: 16V AC and 18V AC
- Protection class II and IP44 ingress protection rating
- High current efficiency of 2.22A at 40VA power
- Ideal for powering Satel Integra and Perfecta alarm control panels
Description
The AC power supply is a key component of professional security systems, ensuring stable and safe power for terminal devices. The presented model is a single-phase safety transformer that stands out due to its built-in short-circuit and thermal protection, which significantly increases the protection level of the entire installation. The device has been designed and manufactured in strict compliance with the rigorous European standard EN61558-2-6, confirming its highest quality and reliability in professional applications.
The main advantage of this transformer is its versatility and high resistance to difficult operating conditions. The device windings are completely galvanically isolated and potted with a special polyurethane compound, which provides excellent insulation and protection against moisture. The entire unit is enclosed in a solid, self-extinguishing plastic housing, which minimizes the risk of fire spread in the event of a failure. The transformer offers two output voltages: 16V and 18V AC, allowing for flexible adaptation to the requirements of specific equipment, such as alarm control panel motherboards.
Using this type of power supply is necessary in installations that, according to the CE directive, require circuit separation and the highest degree of user safety. Thanks to a current efficiency of 2.22A and a rated power of 40VA, this product is ideal not only for alarm systems but also for building automation and low-voltage LED and halogen lighting systems. It is worth remembering that for continuous 24-hour operation, it is recommended to use a load not exceeding 80% of the maximum current, which guarantees component longevity and parameter stability over a long time horizon. The product is easy to install thanks to dedicated mounting points and clearly marked terminals under the cover.
Specification
Device type
Single-phase safety transformer
Power supply type
Transformer - passive with high efficiency
Supply voltage
230 V ... 250 V AC (sinusoidal alternating current)
Operating frequency
47 Hz ... 63 Hz
Output voltage
16 V AC or 18 V AC (selectable via taps)
Current efficiency
2.22 A (maximum current)
Power supply rating
40 VA (Volt-Ampere)
Compliance with standards
EN61558-2-6 (Safety transformers)
Test voltage
PRI/SEC: AC 4 kV RMS (galvanic isolation)
Protection / Insulation class
Class II / Class B (thermal resistance up to 130°C)
Ingress protection rating
IP44 (protection against water splashes and dust)
Construction
Windings potted with polyurethane compound in a self-extinguishing housing
Application
Alarm systems, industrial automation, low-voltage lighting
Operational recommendations
For continuous operation, load up to 80% of rated current; ensure cooling
Software
The device does not have built-in digital software. It is a passive transformer operating on the principle of electromagnetic induction. The operating characteristics are constant and result from the physical construction of the core and copper windings, which ensures immediate readiness for operation after connecting the power supply without the need for software configuration.
Contents
1x TR-40VA Transformer
1x Terminal cover
1x Set of mounting accessories
Dimensions, Weight
Product dimensions: 67 x 124 x 72 mm (D x W x H)
Package dimensions: 70 x 135 x 75 mm (D x W x H)
Product weight: 1010 g
Weight with packaging: 1050 g
