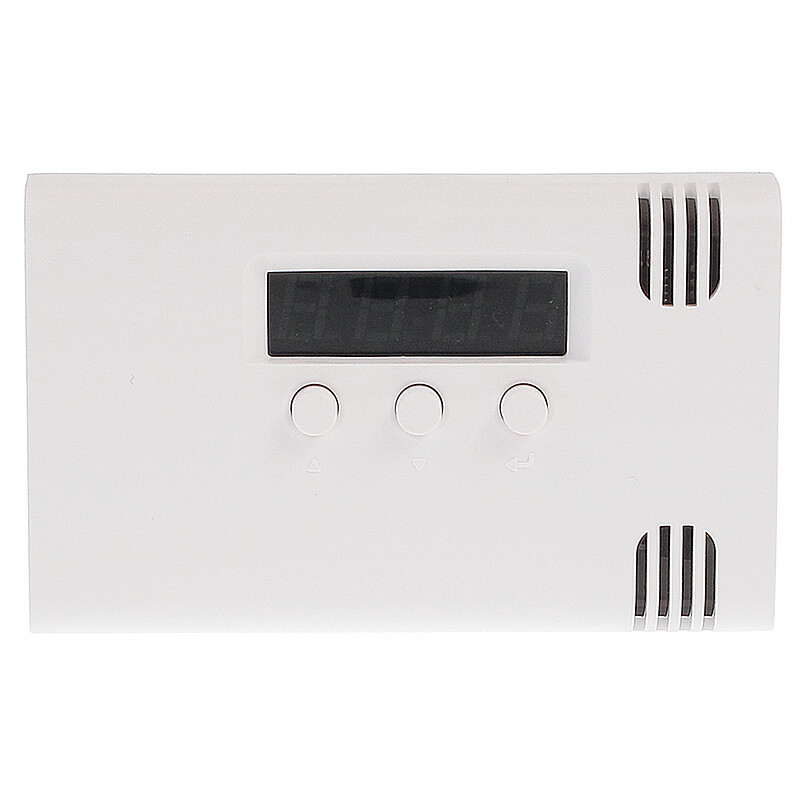

Programmable Temperature Detector External Probe Alarm Relay LCD Display Controller SATEL TD-1
zł276.48
Tax included
The advanced, wired SATEL TD-1 temperature detector is a professional solution designed for precise monitoring of thermal conditions in critical rooms. The device allows for programming critical thresholds and temperature change gradients, making it an indispensable element of security systems in places requiring a stable microclimate.
The main advantage of the detector is its versatility – it can operate as a standalone controller or part of an alarm system. Thanks to the built-in LCD display and configuration buttons, the user has full control over the device's operating parameters without the need for complex external software. The TD-1 is ideal for protecting server rooms from overheating, monitoring cold stores and food warehouses, as well as optimizing conditions in greenhouses, flower shops, or children's rooms.
The device is equipped with two independent relay outputs that can directly control fans, heating, or acoustic signalers. The included 3-meter waterproof probe allows for temperature measurement in hard-to-reach places or areas exposed to moisture, while the internal sensor monitors the environment of the enclosure itself. Solid Polish production guarantees reliability and longevity of the equipment, and the built-in tamper switch protects against unauthorized opening of the enclosure. Choose the SATEL TD-1 to ensure the highest level of thermal protection for your property and technological processes.
Programmable Temperature Detector External Probe Alarm Relay LCD Display Controller
Model: SATEL TD-1
EAN: 6931240070024 SKU: 931070028
- Programmable temperature thresholds (minimum and maximum)
- Possibility to set an allowable temperature change gradient
- Built-in LED display for easy configuration and reading
- Two independent relay outputs (1A / 30V DC)
- Included external, waterproof temperature probe (3m)
- Built-in piezoelectric transducer for audible signaling
- Tamper protection against opening the enclosure
- Wide operating temperature range from -35°C to +60°C
- Standard 12V DC power supply used in alarm systems
- Product of the renowned Polish manufacturer SATEL
Description
The advanced, wired SATEL TD-1 temperature detector is a professional solution designed for precise monitoring of thermal conditions in critical rooms. The device allows for programming critical thresholds and temperature change gradients, making it an indispensable element of security systems in places requiring a stable microclimate.
The main advantage of the detector is its versatility – it can operate as a standalone controller or part of an alarm system. Thanks to the built-in LCD display and configuration buttons, the user has full control over the device's operating parameters without the need for complex external software. The TD-1 is ideal for protecting server rooms from overheating, monitoring cold stores and food warehouses, as well as optimizing conditions in greenhouses, flower shops, or children's rooms.
The device is equipped with two independent relay outputs that can directly control fans, heating, or acoustic signalers. The included 3-meter waterproof probe allows for temperature measurement in hard-to-reach places or areas exposed to moisture, while the internal sensor monitors the environment of the enclosure itself. Solid Polish production guarantees reliability and longevity of the equipment, and the built-in tamper switch protects against unauthorized opening of the enclosure. Choose the SATEL TD-1 to ensure the highest level of thermal protection for your property and technological processes.
Specification
Operating standard
Wired alarm system / building automation
Detection method
Digital temperature measurement; temperature thresholds; temperature gradient (rate of change)
Alarm signaling
Activation of 2 relay outputs (NO/NC); visual LED indicators displaying current status and alarm; built-in piezoelectric acoustic signaler
Temperature sensor
Integrated internal sensor on the main board and included external measurement probe
Probe cable length
3 meters (external probe in waterproof insulation)
User interface and Software
Built-in firmware controlled by three configuration buttons located on the laminate under the cover. Menu displayed on a 3-digit seven-segment LED display. Software allows for: sensor calibration, hysteresis setting, defining two alarm thresholds (T1 and T2), and monitoring the rate of temperature rise or fall over time. The user can lock access to the menu with a code. The interface is clear and allows for quick switching between reading from the local sensor and the wired probe.
Relay switching capacity
Maximum resistive load of relay contacts is 1 A / 30 V DC (Direct Current)
Power supply
Rated voltage 12 V DC (±15%); current consumption in standby mode approx. 15 mA; maximum current consumption 50 mA
Measurement range
The detector supports a wide monitoring range from -35 °C to 60 °C, which allows for use in cold stores and hot server rooms
Tamper protection
Tamper switch reacting to opening the enclosure (NC)
Sensitivity adjustment
Full software adjustment of trigger thresholds with an accuracy of 0.5 degrees
Enclosure
High-quality white plastic; surface mounting
Application
Server rooms, cold stores, pharmaceutical warehouses, greenhouses, flower shops, incubators, children's rooms
Warranty and certification
2-year manufacturer's warranty; compliance with CE standards and environmental requirements for alarm systems
Contents
1x TD-1 Detector
1x External temperature probe with 3m cable
1x Set of mounting plugs
1x User manual
Dimensions, Weight
Product dimensions: 21 x 48 x 78 mm (D x W x H)
Packaging dimensions: 30 x 85 x 150 mm (D x W x H)
Product weight: 40 g
Weight with packaging: 110 g
