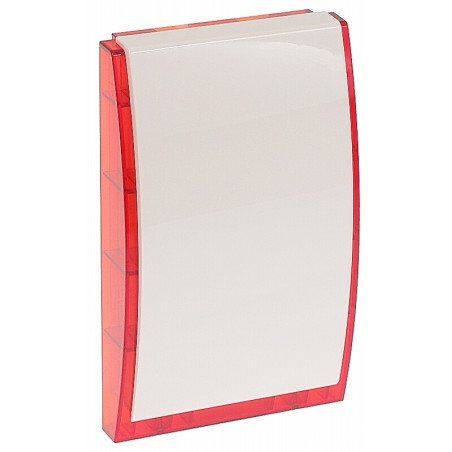

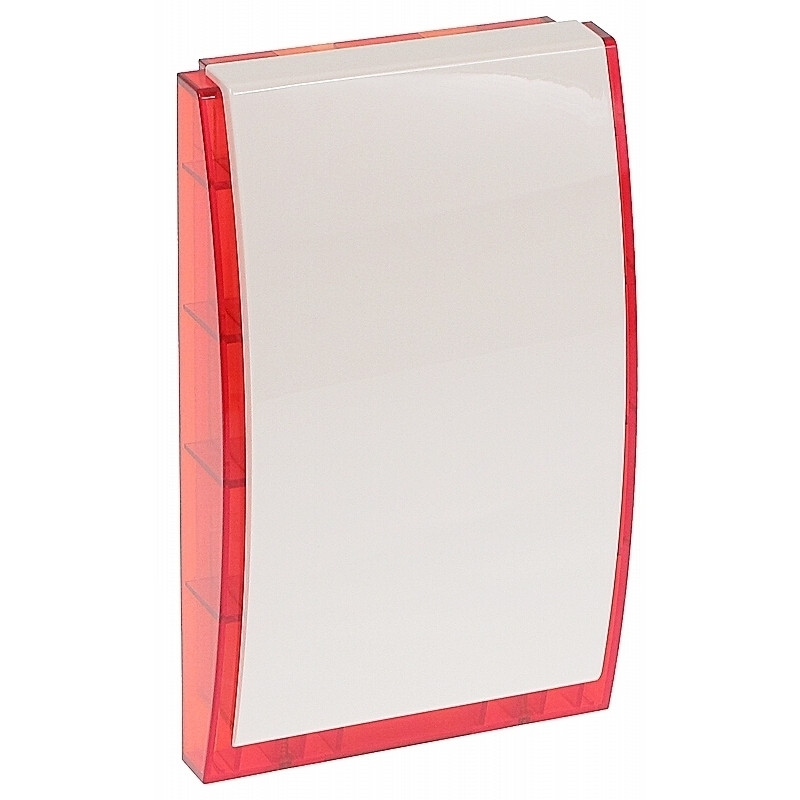

Grade 2 Piezoelectric LED Optical-Acoustic Outdoor Siren for Alarm Systems SATEL SP-4004-R
zł249.01
Tax included
The SATEL SP-4004-R outdoor siren is an advanced optical-acoustic device that serves as a key component of any professional intrusion and robbery signaling system (SSWiN). Designed for maximum reliability, it combines intense light signaling provided by modern LEDs with a powerful sound signal generated by a high-quality piezoelectric transducer with a volume of up to 120 dB. Thanks to this combination, the threat information is perfectly audible and visible from a long distance, which serves an important deterrent and informative function for the surroundings and intervention services.
The device housing is made of high-impact polycarbonate, a material valued for its exceptional resistance to mechanical damage and the influence of negative atmospheric factors, such as UV radiation, precipitation, or extreme temperatures. This ensures an aesthetic appearance and full functionality of the siren for many years of intensive outdoor use. Furthermore, the device design meets the rigorous Grade 2 safety requirements, making it an ideal choice for securing homes, offices, and commercial facilities.
Advantages of the device:
- Very high volume (120 dB) ensuring alarm effectiveness in all conditions.
- Use of energy-efficient and extremely durable LEDs as the main light source.
- High environmental class allowing operation in extreme outdoor temperatures from -25°C to 70°C.
- Double tamper protection against unauthorized opening and removal from the wall.
- Aesthetic, modern design that perfectly blends with the facade of modern buildings.
- Full compliance with rigorous European standards for Grade 2 alarm systems.
Grade 2 Piezoelectric LED Optical-Acoustic Outdoor Siren for Alarm Systems
Model: SATEL SP-4004-R
EAN: 6931240066638 SKU: 931066639
- Acoustic signaling: piezoelectric transducer (120 dB)
- Optical signaling: super bright LEDs
- Compliance with EN 50131-4 Grade 2 standard
- High-impact polycarbonate housing
- Tamper protection against opening and removal
- Internal galvanized steel shield
- Environmental class IV (outdoor operation)
- Selectable alarm signal (3 sound types)
Description
The SATEL SP-4004-R outdoor siren is an advanced optical-acoustic device that serves as a key component of any professional intrusion and robbery signaling system (SSWiN). Designed for maximum reliability, it combines intense light signaling provided by modern LEDs with a powerful sound signal generated by a high-quality piezoelectric transducer with a volume of up to 120 dB. Thanks to this combination, the threat information is perfectly audible and visible from a long distance, which serves an important deterrent and informative function for the surroundings and intervention services.
The device housing is made of high-impact polycarbonate, a material valued for its exceptional resistance to mechanical damage and the influence of negative atmospheric factors, such as UV radiation, precipitation, or extreme temperatures. This ensures an aesthetic appearance and full functionality of the siren for many years of intensive outdoor use. Furthermore, the device design meets the rigorous Grade 2 safety requirements, making it an ideal choice for securing homes, offices, and commercial facilities.
Advantages of the device:
- Very high volume (120 dB) ensuring alarm effectiveness in all conditions.
- Use of energy-efficient and extremely durable LEDs as the main light source.
- High environmental class allowing operation in extreme outdoor temperatures from -25°C to 70°C.
- Double tamper protection against unauthorized opening and removal from the wall.
- Aesthetic, modern design that perfectly blends with the facade of modern buildings.
- Full compliance with rigorous European standards for Grade 2 alarm systems.
Specification
Device type
Optical-acoustic outdoor siren
Acoustic signaling
High-performance piezoelectric transducer
Optical signaling
Set of ultra-bright, low-power LEDs
Sound intensity level
120 dB (measured on the device axis from a distance of 1m)
Security grade
Grade 2 (according to EN 50131-4 standard)
Environmental class EN 50130-5
IV (outdoor applications, high resistance to weather conditions)
Supply voltage
12 V DC ± 15% (powered by external source/control panel)
Current consumption
Maximum 600 mA (during full sound and light activation)
Operating temperature
-25 °C ... 70 °C (stable operation in temperate and harsh climates)
Tamper protection
Tamper switch detecting housing opening and base removal from the wall
Material
High-impact polycarbonate (mechanical impact resistance)
Internal shield
Additional metal galvanized steel shield protecting the electronics
Management and integration
The device does not have its own digital interface but is fully managed by low- or high-current outputs of the alarm control panel. This allows for full integration with the control panel's mobile software, such as INTEGRA CONTROL or PERFECTA CONTROL, enabling the user to remotely monitor the siren status and receive push notifications about tampering or alarm triggering. Thanks to the cooperation with the control panel logic, the siren can implement complex time schemes and differentiate sound signals depending on the type of detected threat (e.g., different sound for fire, different for burglary). All signal duration parameters are configured directly in the alarm control panel operating system, which gives the installer full control over the device's behavior in emergency situations.
Triggering method
Independent inputs for optical and acoustic sections
Warranty
2 years (24 months manufacturer warranty)
Contents
1x SATEL SP-4004-R Siren
1x Set of mounting screws
1x User manual in Polish
Dimensions, Weight
Product dimensions: 64 x 148 x 254 mm (D x W x H)
Packaging dimensions: 70 x 160 x 260 mm (D x W x H)
Product weight: 870 g
Weight with packaging: 1070 g
