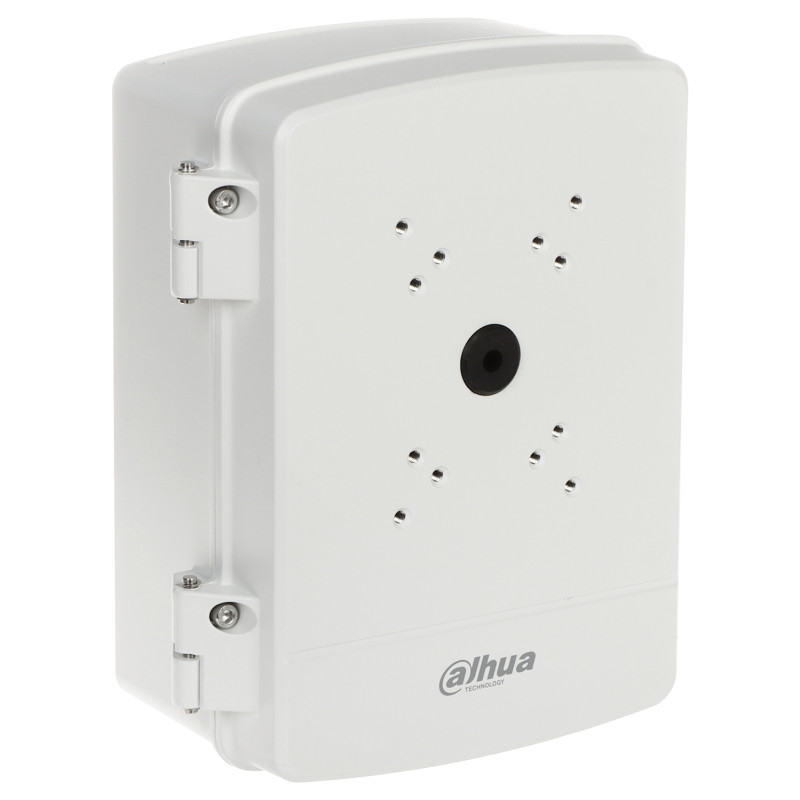

Wall mount junction box for Speed Dome cameras DIN rail space for power supply and battery DAHUA PFA6400S
zł968.01
Tax included
The PFA6400S mount is a professional mounting solution from the renowned Dahua brand, setting new standards in the organization of Speed Dome video surveillance systems. The main advantage of this model is its hybrid design, combining the function of a solid wall bracket with a spacious installation box. This gives the installer great freedom in arranging components accompanying the camera. The interior of the mount has been designed to easily accommodate not only complex bundles of cables and signal connectors, but also a complete switching power supply and even a backup battery.
This is crucial in places where high aesthetics must go hand in hand with maximum functionality and protection against vandalism or external factors. The use of cast aluminum as the main building material makes the structure lightweight, yet incredibly durable and completely corrosion-resistant, which is essential for professional outdoor installation. Inside the box, there are two TS-35 DIN rails, which is a huge advantage, allowing for the mounting of standard electrical modules, such as surge protectors, which protect the camera's expensive electronics.
The neutral white color makes the mount discreetly blend into the facades of office buildings, warehouses, or public utility facilities. Solid workmanship ensures that even heavy PTZ cameras with large optical zoom will operate stably, providing a smooth image free from vibrations caused by wind. By choosing this model, you invest in cable management, electronics safety, and the durability of the entire CCTV installation, significantly facilitating future service and maintenance work.
Wall mount junction box for Speed Dome cameras DIN rail space for power supply and battery
Model: DAHUA PFA6400S
EAN: 6931240037478 SKU: 931037476
- Dedicated to Speed Dome cameras
- Integrated high-capacity junction box
- Equipped with 2 TS-35 DIN rails for module mounting
- Special space for backup battery
- Made of high-quality aluminum
- Weather and corrosion resistant
- Allows for complete concealment of connectors and power supply
- Aesthetic white finish
Description
The PFA6400S mount is a professional mounting solution from the renowned Dahua brand, setting new standards in the organization of Speed Dome video surveillance systems. The main advantage of this model is its hybrid design, combining the function of a solid wall bracket with a spacious installation box. This gives the installer great freedom in arranging components accompanying the camera. The interior of the mount has been designed to easily accommodate not only complex bundles of cables and signal connectors, but also a complete switching power supply and even a backup battery.
This is crucial in places where high aesthetics must go hand in hand with maximum functionality and protection against vandalism or external factors. The use of cast aluminum as the main building material makes the structure lightweight, yet incredibly durable and completely corrosion-resistant, which is essential for professional outdoor installation. Inside the box, there are two TS-35 DIN rails, which is a huge advantage, allowing for the mounting of standard electrical modules, such as surge protectors, which protect the camera's expensive electronics.
The neutral white color makes the mount discreetly blend into the facades of office buildings, warehouses, or public utility facilities. Solid workmanship ensures that even heavy PTZ cameras with large optical zoom will operate stably, providing a smooth image free from vibrations caused by wind. By choosing this model, you invest in cable management, electronics safety, and the durability of the entire CCTV installation, significantly facilitating future service and maintenance work.
Specification
Product type
Specialized wall mount integrated with an installation box
Purpose
Professional mounting of Speed Dome cameras
Compatibility
DAHUA brand cameras (details in the manufacturer's compatibility list)
Material
High-class cast aluminum with high mechanical strength
Finish color
White - UV-resistant powder coating
Mounting type
Wall mounting using mounting holes
Internal space
Possibility to hide connectors, excess cables, and power supply inside the housing
Internal equipment
2 x Standard TS-35 DIN rail for mounting accessories
Space for backup power
Dedicated space for UPS battery mounting
Distance from the wall
109 mm - distance from the mounting surface to the front of the mount
External dimensions
297 x 248 x 131 mm (width x height x depth)
Internal dimensions
255 x 185 x 110 mm - usable box space
Net weight
3200 g (3.2 kg) - ensures stable camera mounting
Durability and operating conditions
High resistance to weather conditions, dust, and moisture
Warranty
2 years (24 months) provided by the manufacturer's service
Contents
1x PFA6400S wall mount
1x Set of mounting screws and wall plugs
2x TS-35 DIN rail
1x Mounting gasket
Dimensions, Weight
Product dimensions: 131 x 297 x 248 mm (D x W x H)
Package dimensions: 180 x 370 x 305 mm (D x W x H)
Product weight: 3200 g
Weight with packaging: 3916 g
