- New

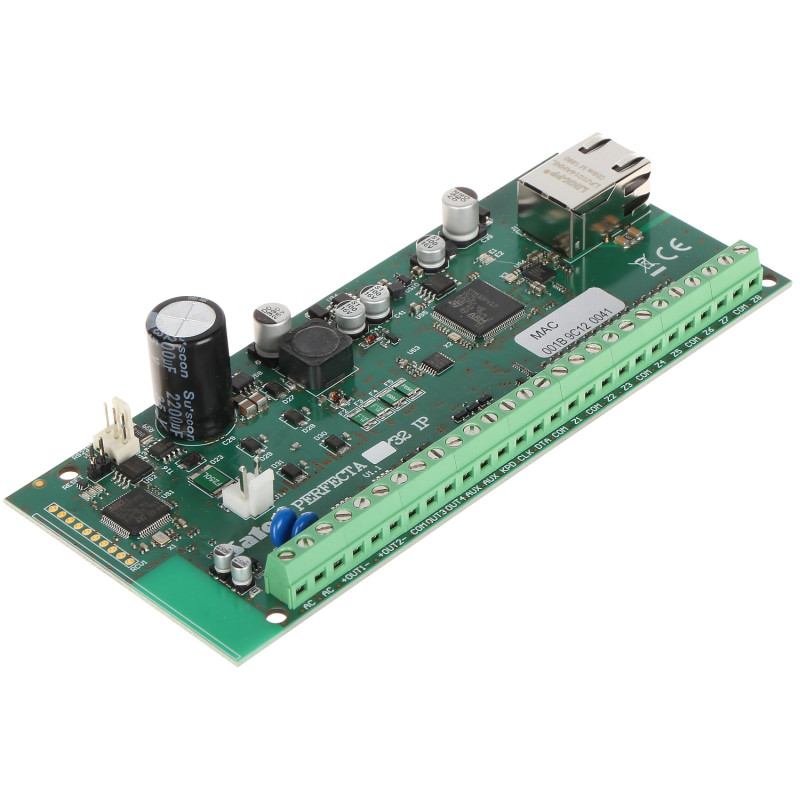

Alarm control panel board with built-in Ethernet module, 8-32 inputs, Grade 2, mobile app control SATEL PERFECTA-IP-32
zł857.31
Tax included
The heart of every advanced security system is a reliable control unit. This alarm control panel board is a modern solution designed for protecting small and medium-sized facilities, such as apartments, detached houses, offices, and retail outlets. The device meets the rigorous requirements of the EN 50131 Grade 2 standard, which guarantees a high level of security and resistance to sabotage attempts.
The greatest advantage of this model is the integrated Ethernet communicator. Thanks to it, the user gains the ability to fully control the system from anywhere in the world using an intuitive mobile application. The lack of need for additional communication modules significantly reduces installation costs and simplifies the configuration process. The system supports PUSH notifications, informing immediately about every event directly on the phone.
The control panel offers flexible expansion – from the base 8 inputs to a maximum of 32, which allows for adjusting protection to the growing needs of the user. The ability to divide into two zones with three arming modes in each of them makes the system extremely functional. Solid construction, advanced power supply self-diagnostics, and support for roller shutter and vibration detectors make it one of the most versatile solutions on the alarm system market.
Product advantages:
- Full compliance with Grade 2 for maximum property security.
- Built-in Ethernet enabling free internet communication.
- Access to a functional mobile application at no extra cost.
- Possibility of remote configuration by the installer, which shortens service time.
- Support for a wide range of expansion modules, including radio controllers.
- Precise timers automating the arming and disarming of zones.
Alarm control panel board with built-in Ethernet module, 8-32 inputs, Grade 2, mobile app control
Model: SATEL PERFECTA-IP-32
EAN: 6931240023426 SKU: 931023421
- Compliance with EN 50131 Grade 2 standard
- Built-in Ethernet module (monitoring, application, PUSH)
- From 8 to 32 programmable inputs on the board and via expansions
- From 4 to 12 programmable wired outputs
- System division into 2 independent zones
- 3 arming modes in each zone (full, day, night)
- Event memory with a capacity of up to 3584 entries
- Support for up to 4 PRF-LCD wired keypads
- Built-in 2A switching power supply with overload protection
- Firmware update capability
- Support for vibration and roller shutter detectors directly on inputs
- Remote configuration via dedicated PERFECTA Soft software
Description
The heart of every advanced security system is a reliable control unit. This alarm control panel board is a modern solution designed for protecting small and medium-sized facilities, such as apartments, detached houses, offices, and retail outlets. The device meets the rigorous requirements of the EN 50131 Grade 2 standard, which guarantees a high level of security and resistance to sabotage attempts.
The greatest advantage of this model is the integrated Ethernet communicator. Thanks to it, the user gains the ability to fully control the system from anywhere in the world using an intuitive mobile application. The lack of need for additional communication modules significantly reduces installation costs and simplifies the configuration process. The system supports PUSH notifications, informing immediately about every event directly on the phone.
The control panel offers flexible expansion – from the base 8 inputs to a maximum of 32, which allows for adjusting protection to the growing needs of the user. The ability to divide into two zones with three arming modes in each of them makes the system extremely functional. Solid construction, advanced power supply self-diagnostics, and support for roller shutter and vibration detectors make it one of the most versatile solutions on the alarm system market.
Product advantages:
- Full compliance with Grade 2 for maximum property security.
- Built-in Ethernet enabling free internet communication.
- Access to a functional mobile application at no extra cost.
- Possibility of remote configuration by the installer, which shortens service time.
- Support for a wide range of expansion modules, including radio controllers.
- Precise timers automating the arming and disarming of zones.
Specification
Standard and Security
Grade 2 according to EN 50131; designed for small and medium-sized facilities
System inputs
8 inputs on the main board (programmable); max. 32 inputs after expansion
System outputs
4 outputs on the main board (programmable); max. 12 outputs after expansion
System structure
2 zones; possibility to assign an input to two zones simultaneously
Users
15 standard users + 1 administrator
Ethernet communication
Built-in RJ45 port; support for PERFECTA CONTROL mobile application, PUSH notifications, monitoring to stations (security agencies)
Mobile software
PERFECTA CONTROL application for Android and iOS devices. It is an advanced tool enabling remote management of the alarm system. The user can arm and disarm zones from anywhere, check event history, control outputs (e.g., gate, lighting), and receive instant PUSH notifications about alarms or failures. The application interface is clear and fully localized, which ensures comfort in daily operation.
Configuration software
PERFECTA Soft is professional software intended for installers, enabling comprehensive programming of all control panel parameters. The application allows for local configuration (cable connection via TTL port) or remote configuration via the Ethernet module. The program offers a clear view of the system status in real-time, easy editing of user names, zones, and devices, as well as a power supply and communication bus diagnostic function. It minimizes the risk of errors when starting up the system.
Communication bus
Support for modules: PRF-LCD keypads, INT-E input expanders, INT-O / INT-ORS output expanders, INT-RX-S remote control module
Automation
8 independent timers with weekly schedule capability
Power supply
18V AC; built-in 2A power supply; 2 power outputs for detectors and accessories
Memory and Logic
3584 event memory; advanced power supply diagnostics; name editing facilitating supervision
Operating conditions
Temperature: -10 °C ... 55 °C; Permissible humidity: 93%
Mechanical parameters
Main board dimensions: 160 x 68 mm; Weight: 0.1 kg
Languages and Production
Polish language (cannot be changed); Made in Poland
Contents
1x PERFECTA-IP-32 control panel board
1x Antenna
Mounting elements (plugs, resistors)
Dimensions, Weight
Product dimensions: 20 x 160 x 68 mm (D x W x H)
Package dimensions: 55 x 230 x 130 mm (D x W x H)
Product weight: 100 g
Weight with packaging: 224 g
