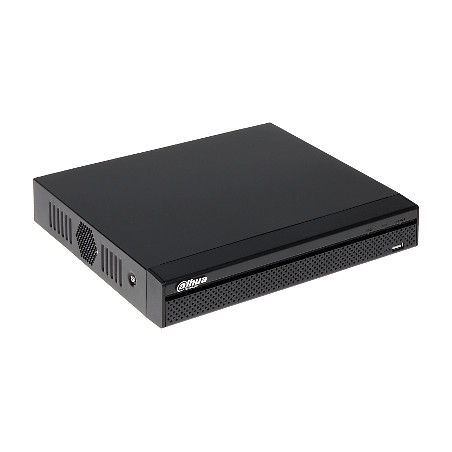

8 Channel 4K 12Mpx IP NVR 8x PoE H.265+ P2P Onvif CCTV Monitoring Recorder DAHUA NVR4108HS-8P-4KS3
zł2,048.22
Tax included
The modern IP recorder is the heart of a professional monitoring system, offering unparalleled image quality in 4K resolution (up to 12 Mpx). Thanks to the use of advanced Smart H.265+ compression, the device allows for significant hard drive space savings while maintaining crystal-clear recordings. The main advantage of the model is the built-in 8-port PoE switch, which eliminates the need to run separate power to each camera – signal and power are transmitted via a single twisted-pair cable, which drastically simplifies installation and reduces assembly costs.
The device supports intelligent SMD PLUS image analysis, which precisely classifies objects, distinguishing humans and vehicles from false alarms caused by leaves or animals. Additionally, features such as face detection, people counting, and heat maps make this recorder an ideal solution not only for home security but also for business analytics in retail. Operational stability is guaranteed by support for hard drives with a capacity of up to 20 TB, allowing for weeks of data archiving. The system offers full remote access via the intuitive DMSS mobile application, enabling viewing from anywhere in the world without complicated network configuration thanks to P2P technology.
A robust housing and a wide operating temperature range ensure reliability in all conditions. The recorder features a 4K HDMI output and VGA, allowing for the connection of modern monitors and televisions. An intuitive menu and support for the ONVIF standard make the device compatible with a wide range of cameras from various manufacturers, giving the user full flexibility when expanding the system.
8 Channel 4K 12Mpx IP NVR 8x PoE H.265+ P2P Onvif CCTV Monitoring Recorder
Model: DAHUA NVR4108HS-8P-4KS3
EAN: 6931240029275 SKU: 931029277
- Support for up to 8 IP cameras at a maximum resolution of 12 Mpx (4000x3000 px)
- Built-in 8-port PoE switch supporting 802.3af/at standards
- Advanced Smart H.265+ / H.265 image compression reducing bandwidth requirements
- Intelligent image analysis SMD PLUS - classification of humans and motor vehicles
- Support for one SATA hard drive with a massive capacity of up to 20 TB
- Remote viewing via cloud (P2P) without the need for a static IP address
- HDMI video output operating at 4K resolution and classic VGA output
- Support for two-way audio (RCA input and output)
- Full compatibility with ONVIF 22.12 standard
- Intuitive management via web browser and free DMSS application for Android/iOS
Description
The modern IP recorder is the heart of a professional monitoring system, offering unparalleled image quality in 4K resolution (up to 12 Mpx). Thanks to the use of advanced Smart H.265+ compression, the device allows for significant hard drive space savings while maintaining crystal-clear recordings. The main advantage of the model is the built-in 8-port PoE switch, which eliminates the need to run separate power to each camera – signal and power are transmitted via a single twisted-pair cable, which drastically simplifies installation and reduces assembly costs.
The device supports intelligent SMD PLUS image analysis, which precisely classifies objects, distinguishing humans and vehicles from false alarms caused by leaves or animals. Additionally, features such as face detection, people counting, and heat maps make this recorder an ideal solution not only for home security but also for business analytics in retail. Operational stability is guaranteed by support for hard drives with a capacity of up to 20 TB, allowing for weeks of data archiving. The system offers full remote access via the intuitive DMSS mobile application, enabling viewing from anywhere in the world without complicated network configuration thanks to P2P technology.
A robust housing and a wide operating temperature range ensure reliability in all conditions. The recorder features a 4K HDMI output and VGA, allowing for the connection of modern monitors and televisions. An intuitive menu and support for the ONVIF standard make the device compatible with a wide range of cameras from various manufacturers, giving the user full flexibility when expanding the system.
Specification
Standard and Network
Standard: TCP/IP; Network interface: 1 x RJ-45 10/100/1000 Base-TX; Protocols: HTTP, HTTPS, TCP/IP, IPv4/IPv6, UDP, NTP, DHCP, DNS, SMTP, UPnP, IP Filter, FTP, DDNS, SNMP, Alarm Server, P2P, Auto Register, IP Search
Video and Resolution
Supported resolutions: max. 12 Mpx - 4000 x 3000 px; Video outputs: 1 pc. HDMI 4K, 1 pc. VGA; Bitrate: max. 160 Mbps (without AI), max. 80 Mbps (AI)
Compression and Recording
Compression method: Smart H.265+ / H.265 / Smart H.264+ / H.264; Supported hard drives: 1 x 20 TB SATA; Recording modes: Manual, motion detection, schedule; Archiving: USB drive (pendrive, external drive)
Audio
Audio support: 8 Channels - Audio from cameras, Two-way audio support; Audio inputs: 1 pc. CINCH (RCA); Audio outputs: 1 pc. CINCH (RCA)
DMSS Software
The DMSS (Digital Mobile Surveillance System) mobile application for Android and iOS enables remote access to the system from anywhere. The user can use live view, playback recordings, and receive push notifications about alarms. The application supports P2P technology, which eliminates the need for port forwarding. Additionally, it offers management of multiple devices, two-way audio communication, and remote control of PTZ cameras, ensuring full control and security at your fingertips.
Playback Functions
Search and playback: Search by time and event type. Playback: forward, backward, fast forward, slow motion; Advanced search down to the second; Smart Playback function; Simultaneous playback from max. 8 cameras
Intelligent Image Analysis (AI)
SMD PLUS - search for an object classified as a human or motor vehicle; False alarm filtering; Perimeter protection; Scene change; Face detection (6 types of attributes); Face recognition; People counting; Heat map
Interfaces and Ports
USB: 2 pcs. USB 2.0; Serial ports: None; Alarm inputs/outputs: None; PTZ control: IP speed dome cameras
PoE Switch
Built-in 8-port PoE switch; Power: 25.5 W / Channel - PoE (802.3af/at); Maximum total switch load: 72 W
Additional Functions
Motion detection: Yes; Privacy zones: Yes; Built-in web server: Yes; Mouse support: Yes; ONVIF: version 22.12; Default IP address: 192.168.1.108
Access and Security
Default login/password: admin / admin (must be set upon first startup); Access ports: WWW (80, 37777), PC (37777), Mobile (37777); RTSP URL: Supported for main and sub stream
Electrical Parameters
Power supply: 53 V DC / 1.81 A; Power consumption: max. 10 W (without HDD)
Operating Conditions
Operating temperature: -10 °C ... 55 °C; Supported languages: Polish, English
Construction
Housing: HS type; Material: Metal/Plastic; Color: Black
Contents
1x NVR4108HS-8P-4KS3 Recorder
1x 53V/1.81A power adapter
1x USB computer mouse
1x Set of screws for drive mounting
1x Quick start guide
Dimensions, Weight
Product dimensions: 233 x 260 x 48 mm (D x W x H)
Package dimensions: 115 x 370 x 305 mm (D x W x H)
Product weight: 910 g
Weight with packaging: 2074 g
