- New

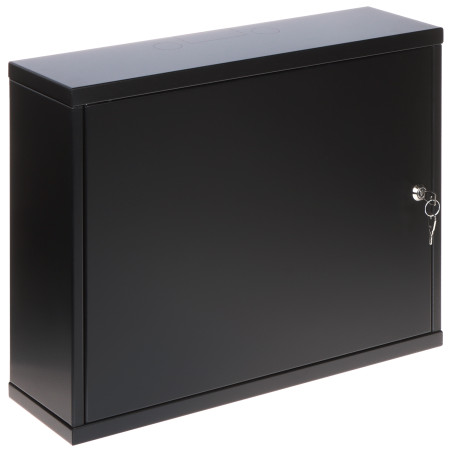

Surface mounted metal enclosure with wooden mounting plate black RAL9005 for alarm and CCTV systems cabinet STALFLEX MB-TPR5-MP-
zł203.11
Tax included
The professional surface-mounted metal enclosure with dimensions of 520 x 400 x 140 mm is a high-class solution dedicated to installers of security systems, telecommunications, and building automation. The product has been designed for the safe and aesthetic storage of devices such as video recorders, alarm control panels, power modules, or network switches. Made of solid 0.8 mm thick sheet steel, it guarantees high structural rigidity and durability for many years of use in indoor conditions.
The main advantage of the enclosure is the integrated wooden mounting plate with dimensions of 505 x 190 mm. Using wood (plywood) instead of metal allows for quick and trouble-free installation of electronic components using standard screws, which significantly shortens the installer's working time and allows for any interior arrangement without the need to drill holes in the metal. The entire unit is powder-coated in an elegant, deep black color (RAL9005), making the cabinet look professional in any room, from server rooms to offices and home technical backrooms.
The safety of the devices is ensured by a built-in cylinder lock, which effectively restricts access to sensitive electronics by unauthorized persons. Two keys are included. The design has also been optimized for cable management – there are a total of six entry holes (2 x 3 pieces) in the top and bottom of the enclosure, which allows for convenient routing of thick cable bundles from any side. By choosing this model, you gain a Polish product characterized by precision workmanship, which perfectly combines functionality with modern design.
Surface mounted metal enclosure with wooden mounting plate black RAL9005 for alarm and CCTV systems cabinet
Model: STALFLEX MB-TPR5-MP-B
EAN: 6931240061015 SKU: 931061016
- Solid construction made of 0.8 mm thick sheet steel
- Convenient wooden mounting plate for easy equipment installation
- Powder coated in black (RAL 9005)
- Security provided by a lock with two keys included
- Six ready-made cable entries (3 on top and 3 on bottom)
- Optimized internal dimensions for electronics mounting
- High-quality product of Polish origin
- Dedicated for indoor use
Description
The professional surface-mounted metal enclosure with dimensions of 520 x 400 x 140 mm is a high-class solution dedicated to installers of security systems, telecommunications, and building automation. The product has been designed for the safe and aesthetic storage of devices such as video recorders, alarm control panels, power modules, or network switches. Made of solid 0.8 mm thick sheet steel, it guarantees high structural rigidity and durability for many years of use in indoor conditions.
The main advantage of the enclosure is the integrated wooden mounting plate with dimensions of 505 x 190 mm. Using wood (plywood) instead of metal allows for quick and trouble-free installation of electronic components using standard screws, which significantly shortens the installer's working time and allows for any interior arrangement without the need to drill holes in the metal. The entire unit is powder-coated in an elegant, deep black color (RAL9005), making the cabinet look professional in any room, from server rooms to offices and home technical backrooms.
The safety of the devices is ensured by a built-in cylinder lock, which effectively restricts access to sensitive electronics by unauthorized persons. Two keys are included. The design has also been optimized for cable management – there are a total of six entry holes (2 x 3 pieces) in the top and bottom of the enclosure, which allows for convenient routing of thick cable bundles from any side. By choosing this model, you gain a Polish product characterized by precision workmanship, which perfectly combines functionality with modern design.
Specification
Device type
Surface mounted metal telecommunications enclosure
Application
Indoor CCTV installations, alarm systems, RACK network systems, home automation
Enclosure material
Galvanized sheet steel, powder coated with high scratch resistance
Color and finish
Black - RAL 9005 shade, matte/semi-matte structure
Material thickness
0.8 mm thick sheet steel ensuring structural rigidity
Mounting plate
Made of wood (technical plywood), allows for easy screwing of devices without pre-drilling
Mounting plate dimensions
505 x 190 mm (working surface for devices)
Locking system
Cylinder lock placed centrally on the front door
Cable entries
Cable entries located in the top and bottom of the enclosure (2 x 3 hole layout)
External dimensions
Width: 520 mm, Height: 400 mm, Depth: 140 mm
Internal dimensions
Width: 460 mm, Height: 340 mm, Depth: 118 mm
Net weight
4.56 kg (ensures stability when mounting heavier equipment)
Manufacturer warranty
24 months (2 years) from the date of purchase
Country of production
Poland (Polish product)
Contents
1x MB-TPR5-MP-B enclosure
2x Lock key
1x Wooden mounting plate (inside)
Dimensions, Weight
Product dimensions: 140 x 520 x 400 mm (Depth x Width x Height)
Packaging dimensions: 145 x 525 x 410 mm (Depth x Width x Height)
Product weight: 4560 g
Weight with packaging: 4828 g
