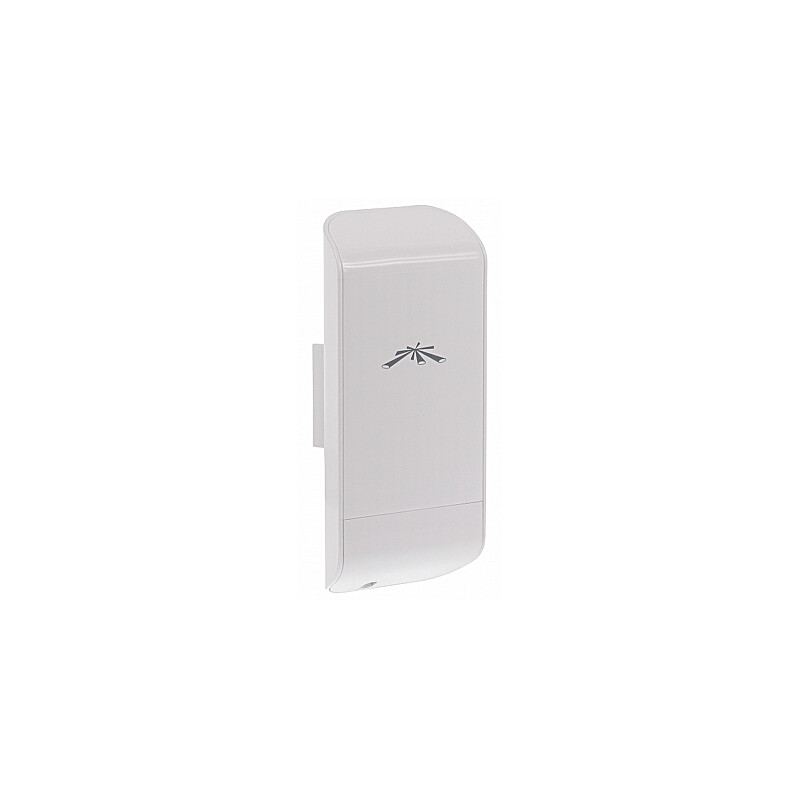

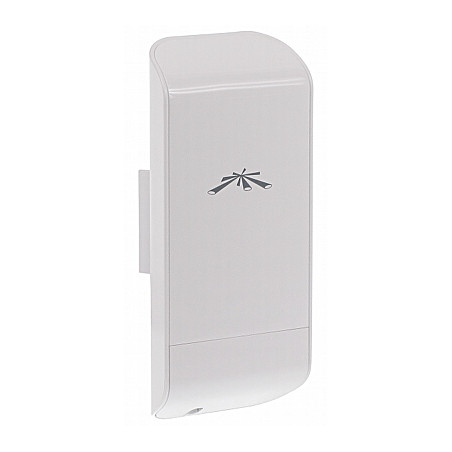

Outdoor Access Point 2.4GHz MIMO 8dBi Antenna WiFi Bridge Access Point WDS AirOS PoE UBIQUITI LOCO-M2
zł286.09
Tax included
The NanoStation LOCO-M2 is an advanced wireless device operating in the popular 2.4 GHz band, providing an excellent solution for building high-performance radio bridges and outdoor access points. By utilizing innovative 2x2 MIMO (Multiple Input Multiple Output) technology, the device provides significantly higher throughput compared to standard single-channel solutions. The heart of the device is an integrated 8 dBi gain antenna characterized by dual-polarized operation, which eliminates the need for external radiators and reduces cable losses.
The advantage of the device is its remarkable stability and resistance to harsh weather conditions, confirmed by a wide operating temperature range from -30 to +80 degrees Celsius. The compact housing allows for discreet mounting on a wall or mast, and power supply via passive PoE (Power over Ethernet) simplifies installation, allowing data and power to be transmitted via a single network cable over distances of up to several dozen meters. The NanoStation is an ideal choice for IP monitoring system installers, enabling wireless transmission of camera images in places where laying cabling is difficult or unprofitable.
The device runs on the legendary AirOS system, which is appreciated for its clarity and vast configuration capabilities. The interface is fully responsive and accessible via a web browser, allowing for rapid deployment and real-time network monitoring. The system offers a range of advanced diagnostic functions, including the airView spectrum analyzer, which helps detect interference in the area and select the cleanest operating channel. Additionally, built-in surge protection up to 15kV protects sensitive electronics from electrostatic discharge, which is crucial in outdoor installations.
Outdoor Access Point 2.4GHz MIMO 8dBi Antenna WiFi Bridge Access Point WDS AirOS PoE
Model: UBIQUITI LOCO-M2
EAN: 6931240066997 SKU: 931066993
- 2x2 MIMO standard operation ensuring high throughput
- Integrated dual-polarized antenna with 8 dBi gain
- Compact weather-resistant housing
- Powered via Passive PoE (24V 0.5A)
- Advanced AirOS operating system with diagnostic tools
- 15kV ESD surge protection for the radio path
- Fast Atheros MIPS 24KC 400MHz processor
- Wide operating temperature range from -30°C to 80°C
Description
The NanoStation LOCO-M2 is an advanced wireless device operating in the popular 2.4 GHz band, providing an excellent solution for building high-performance radio bridges and outdoor access points. By utilizing innovative 2x2 MIMO (Multiple Input Multiple Output) technology, the device provides significantly higher throughput compared to standard single-channel solutions. The heart of the device is an integrated 8 dBi gain antenna characterized by dual-polarized operation, which eliminates the need for external radiators and reduces cable losses.
The advantage of the device is its remarkable stability and resistance to harsh weather conditions, confirmed by a wide operating temperature range from -30 to +80 degrees Celsius. The compact housing allows for discreet mounting on a wall or mast, and power supply via passive PoE (Power over Ethernet) simplifies installation, allowing data and power to be transmitted via a single network cable over distances of up to several dozen meters. The NanoStation is an ideal choice for IP monitoring system installers, enabling wireless transmission of camera images in places where laying cabling is difficult or unprofitable.
The device runs on the legendary AirOS system, which is appreciated for its clarity and vast configuration capabilities. The interface is fully responsive and accessible via a web browser, allowing for rapid deployment and real-time network monitoring. The system offers a range of advanced diagnostic functions, including the airView spectrum analyzer, which helps detect interference in the area and select the cleanest operating channel. Additionally, built-in surge protection up to 15kV protects sensitive electronics from electrostatic discharge, which is crucial in outdoor installations.
Specification
Radio technology
2x2 MIMO (Multiple Input Multiple Output)
Frequency range
2412 MHz ... 2462 MHz
Wireless standards
IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Antenna type
Integrated, dual-polarized with 8 dBi gain
Processor and memory
Atheros MIPS 24KC, 400MHz; 32MB SDRAM, 8MB FLASH
Network interface
1 x 10/100 Mbps Ethernet Port (RJ-45)
Signal characteristics
VSWR 1.4:1; Beamwidth: 60° (H), 60° (V)
Receiver sensitivity
-83 dBm @ 1-24 Mbps, -80 dBm @ 36 Mbps, -77 dBm @ 48 Mbps, -75 dBm @ 54 Mbps
Transmitter power
23 dBm @ 1-24 Mbps, 21 dBm @ 36 Mbps, 19 dBm @ 48 Mbps, 18 dBm @ 54 Mbps
AirOS software
AirOS is an advanced operating system offering an intuitive web interface for device management. It provides tools such as airView (spectrum analyzer), advanced signal statistics, routing configuration, DHCP, and VLAN. It allows operation in Station, Station WDS, Access Point, and Access Point WDS modes, enabling flexible wireless network design. The system is optimized for connection stability in high-density network environments.
Security
15kV ESD surge protection for the radio path
Environmental conditions
Operating temperature: -30 °C ... 80 °C; Humidity: 5 % ... 95 %
Power parameters
24V / 0.5A Passive PoE (power adapter included)
Construction
UV-resistant plastic, pole or wall mounting
Contents
1x Access point
1x PoE power adapter 24V 0.5A
1x Power cable
1x Mounting zip tie
Dimensions, Weight
Product dimensions: 60 x 80 x 179 mm (D x W x H)
Packaging dimensions: 80 x 120 x 220 mm (D x W x H)
Product weight: 190 g
Weight with packaging: 550 g
