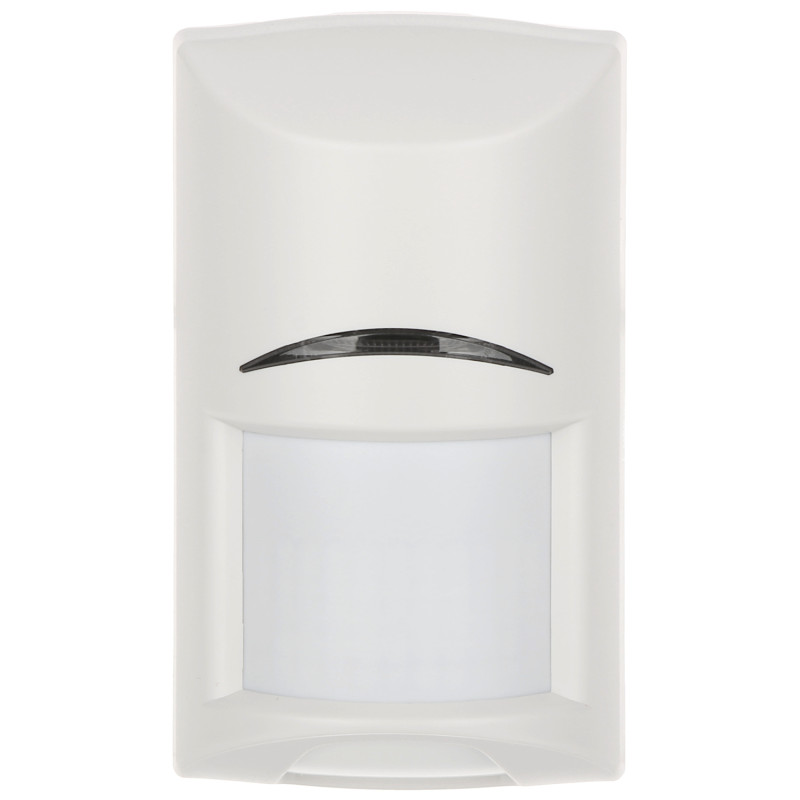

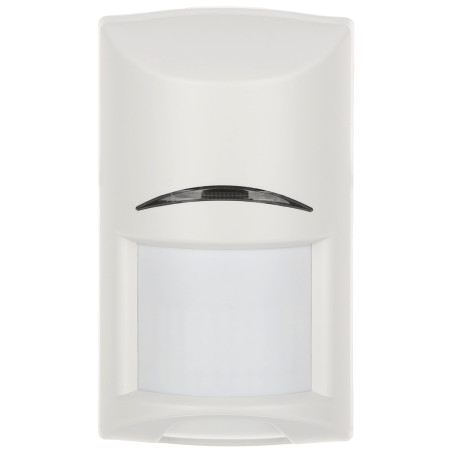

Dual PIR Microwave Indoor Grade 2 Pet Immune Detector up to 45kg TriFocus Optics Alarm Sensor BOSCH ISC-BDL2-WP12GE
zł262.61
Tax included
The Bosch ISC-BDL2-WP12GE digital dual detector is a professional device designed for advanced intrusion and robbery alarm systems. Equipped with two independent detection paths – passive infrared (PIR) and microwave (MW) – it ensures the highest level of effectiveness while minimizing the risk of false alarms. The device is ideal for challenging indoor environments where standard PIR detectors may fail, such as rooms exposed to drafts, intense air convection, or rapid temperature changes caused by fireplaces or forced-air heating systems.The main advantage of the ISC-BDL2-WP12GE model is the use of TriFocus optical technology, which utilizes lenses with three different focal lengths. This solution eliminates dead zones directly under the sensor and ensures uniform sensitivity across the entire 94-degree field of view with a range of up to 12 meters. Another advantage is the pet immunity function for animals weighing up to 45 kg, making this detector an excellent choice for dog or cat owners without compromising high-class facility security.The detector is certified compliant with the EN 50131-2-4 Grade 2 standard, confirming its suitability for professional alarm installations. Integrated digital temperature compensation allows for stable device operation even when the ambient temperature approaches human body temperature. Additionally, a built-in potentiometer allows for precise adjustment of the microwave path, adapting it to the dimensions of the protected room. The entire unit is enclosed in a modern, aesthetic self-locking housing that significantly speeds up the installation and maintenance process. Choosing a Bosch detector is a guarantee of reliability and security for your property for many years.
Dual PIR Microwave Indoor Grade 2 Pet Immune Detector up to 45kg TriFocus Optics Alarm Sensor
Model: BOSCH ISC-BDL2-WP12GE
EAN: 6931240094648 SKU: 931094644
- Advanced dual technology: PIR + Microwave (MW)
- TriFocus optics with three focal lengths to eliminate dead zones
- Pet immunity for animals weighing up to 45 kg
- EN 50131-2-4 Grade 2 security certification
- Digital temperature compensation for stable operation in all conditions
- Adjustable microwave sensitivity via potentiometer
- Modern self-locking housing for easy installation
- Built-in detection system self-diagnostic function
Description
The Bosch ISC-BDL2-WP12GE digital dual detector is a professional device designed for advanced intrusion and robbery alarm systems. Equipped with two independent detection paths – passive infrared (PIR) and microwave (MW) – it ensures the highest level of effectiveness while minimizing the risk of false alarms. The device is ideal for challenging indoor environments where standard PIR detectors may fail, such as rooms exposed to drafts, intense air convection, or rapid temperature changes caused by fireplaces or forced-air heating systems.
The main advantage of the ISC-BDL2-WP12GE model is the use of TriFocus optical technology, which utilizes lenses with three different focal lengths. This solution eliminates dead zones directly under the sensor and ensures uniform sensitivity across the entire 94-degree field of view with a range of up to 12 meters. Another advantage is the pet immunity function for animals weighing up to 45 kg, making this detector an excellent choice for dog or cat owners without compromising high-class facility security.The detector is certified compliant with the EN 50131-2-4 Grade 2 standard, confirming its suitability for professional alarm installations. Integrated digital temperature compensation allows for stable device operation even when the ambient temperature approaches human body temperature. Additionally, a built-in potentiometer allows for precise adjustment of the microwave path, adapting it to the dimensions of the protected room. The entire unit is enclosed in a modern, aesthetic self-locking housing that significantly speeds up the installation and maintenance process. Choosing a Bosch detector is a guarantee of reliability and security for your property for many years.Specification
Application
Indoor, professional alarm systems (SSWiN)
Sensor type
Passive Infrared (PIR) and Microwave (MW) - Dual detection technology
Pyroelement
Dual high-sensitivity
Detection range
12 x 12 meters (standard coverage area)
Detection angle
94 degrees (wide-angle characteristic)
Optics
TriFocus triple-focal optics; long, medium, and short-range lenses
Sensitivity adjustment
Smooth potentiometer adjustment for the microwave (MW) path
Self-diagnostics
Active system for testing the performance of both detection paths
Alarm outputs
NC (Normally Closed), housing tamper contact
Pet immunity
Yes, supports animals up to 45 kg (depending on settings)
Output load
Maximum 25V DC / 100 mA (0.1A)
Temperature compensation
Digital temperature compensation adjusting detection thresholds to the environment
Power supply
9V ... 15V DC (direct current)
Current consumption
Low power consumption: maximum 9 mA
Operating conditions
Temperature from -10°C to 55°C, relative humidity 0-95%
Security grade
EN 50131-2-4 Grade 2 (compliance with European standards)
Software and Logic
The detector's built-in software uses the First Step Processing (FSP) algorithm, which ensures an almost immediate reaction to human movement without generating false alarms from other sources. The digital signal processing system analyzes the amplitude, duration, and polarity of the signal from both paths (PIR and MW). Thanks to this, the device can distinguish a moving intruder from background noise, such as air movements or electromagnetic interference. The adaptive microwave signal processing function dynamically adjusts to room conditions, which significantly increases the stability of the entire alarm system.
Contents
1x Dual detector ISC-BDL2-WP12GE
1x Set of mounting screws
1x User manual
Dimensions, Weight
Product dimensions: 44 x 60 x 105 mm (D x W x H)
Packaging dimensions: 50 x 110 x 65 mm (D x W x H)
Product weight: 80 g
Weight with packaging: 113 g
