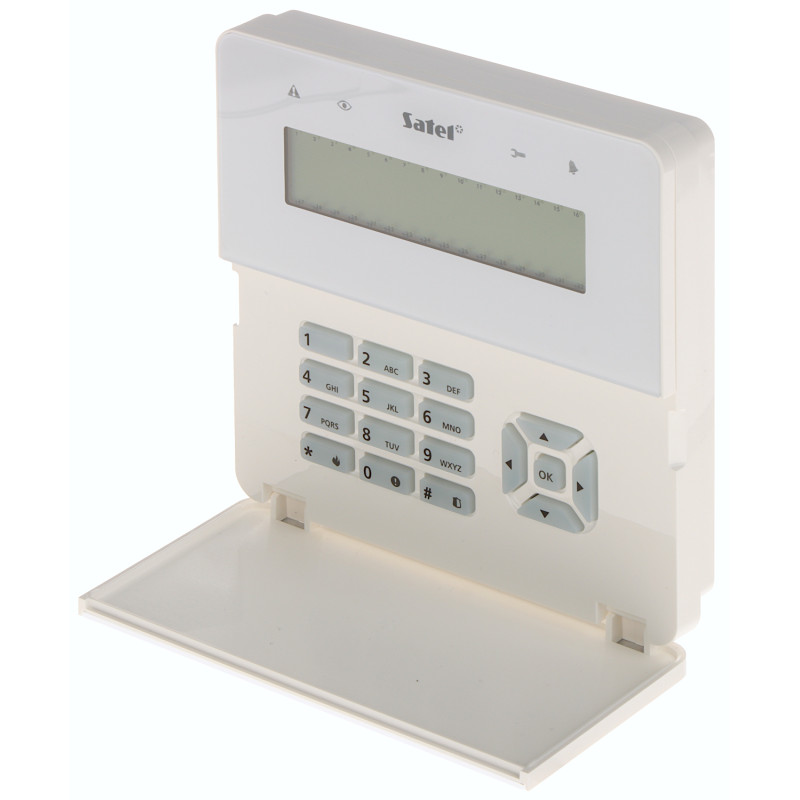

Wireless LCD Keypad with RFID Reader ABAX2 ABAX Alarm System White Wireless Manipulator SATEL INT-KWRL2-W
zł1,052.88
Tax included
The wireless keypad is an advanced peripheral device designed for full operation and programming of modern Integra series alarm control panels. The device operates within the two-way wireless ABAX and ABAX2 system, which guarantees the highest level of security and data transmission stability. Thanks to the use of a large, clear LCD display, the user receives clear and precise text messages, which significantly facilitates daily operation of even very extensive intrusion and robbery signaling systems.
A key advantage of this model is the built-in reader for proximity cards and key fobs operating in the Unique EM 125 kHz standard. It allows for quick arming and disarming without the need to enter a PIN code each time, which is an extremely convenient solution for the elderly or children. The manipulator features an elegant, white housing color that perfectly blends with modern home and office interiors. The product was entirely designed and manufactured in Poland, which is a guarantee of high-quality components and reliability.
System security is monitored by a number of tamper functions, including a microswitch detecting the opening of the housing or detachment from the surface. The user also has the ability to immediately call for help via dedicated PANIC, FIRE, and AUXILIARY alarms triggered directly from the keypad. Energy-efficient power management allows for long operation on a single set of CR123A batteries, which minimizes service costs and increases the comfort of using the wireless system.
Wireless LCD Keypad with RFID Reader ABAX2 ABAX Alarm System White Wireless Manipulator
Model: SATEL INT-KWRL2-W
EAN: 6931240052457 SKU: 931052456
- Compatibility with ABAX and ABAX2 wireless systems
- Built-in Unique EM 125kHz proximity card reader
- Large and clear LCD display with white backlight
- Full support and programming of INTEGRA series control panels
- FIRE, PANIC and AUXILIARY alarms triggered from the keypad
- Two-way, encrypted radio communication in the 868 MHz band
- Acoustic signaling of selected system events
- Tamper protection against opening and detachment from the mounting surface
- Battery power supply 2x CR123A ensuring long operation
- Aesthetic, white housing matching any interior
Description
The wireless keypad is an advanced peripheral device designed for full operation and programming of modern Integra series alarm control panels. The device operates within the two-way wireless ABAX and ABAX2 system, which guarantees the highest level of security and data transmission stability. Thanks to the use of a large, clear LCD display, the user receives clear and precise text messages, which significantly facilitates daily operation of even very extensive intrusion and robbery signaling systems.
A key advantage of this model is the built-in reader for proximity cards and key fobs operating in the Unique EM 125 kHz standard. It allows for quick arming and disarming without the need to enter a PIN code each time, which is an extremely convenient solution for the elderly or children. The manipulator features an elegant, white housing color that perfectly blends with modern home and office interiors. The product was entirely designed and manufactured in Poland, which is a guarantee of high-quality components and reliability.
System security is monitored by a number of tamper functions, including a microswitch detecting the opening of the housing or detachment from the surface. The user also has the ability to immediately call for help via dedicated PANIC, FIRE, and AUXILIARY alarms triggered directly from the keypad. Energy-efficient power management allows for long operation on a single set of CR123A batteries, which minimizes service costs and increases the comfort of using the wireless system.
Specification
Wireless standard
Two-way ABAX / ABAX2 system ensuring full control of device status and stable connectivity
Operating frequency
868.0 MHz ... 868.6 MHz band; encrypted transmission preventing signal interception
Radio communication range
ABAX2 (ACU-220/280): up to 800 m in open area; ABAX (ACU-120): up to 800 m; ABAX (ACU-270): up to 400 m
RFID reader
Unique EM 125kHz standard; support for proximity cards and key fobs for user authorization
Display
Alphanumeric LCD with backlight; presentation of zone status, inputs, and system messages
LED indicators
LEDs indicating arming status, alarms, and system faults
Acoustic signaling
Built-in piezo transducer for operation confirmation and entry/exit delay signaling
Alarm functions
Quick access buttons for special alarms: Fire, Auxiliary (medical), Panic
Tamper protection
Tamper switch reacting to opening the housing and tearing off the wall
Power supply
2 x 3V CR123A lithium batteries; advanced energy-saving mechanisms
Operating temperature
From -10 °C to +55 °C; adapted for indoor use
Housing color
White (classic SATEL aesthetics)
Software
The device integrates with the DLOADX configuration software used in Integra systems. The user interface on the keypad allows for full system management, including adding users, viewing event logs, blocking inputs, and changing control panel operating parameters. The keypad operating system is optimized for response speed in the wireless system, minimizing delays while maintaining high energy efficiency. The software supports menus in multiple languages, including Polish.
Compliance with standards
Compliance with European alarm system standards; CE declaration
Contents
1x INT-KWRL2-W Keypad
2x CR123A Battery
1x Mounting screw set
1x User manual
Dimensions, Weight
Product dimensions: 25 x 145 x 143 mm (D x W x H)
Packaging dimensions: 37 x 175 x 152 mm (D x W x H)
Product weight: 340 g
Weight with packaging: 454 g
