- New

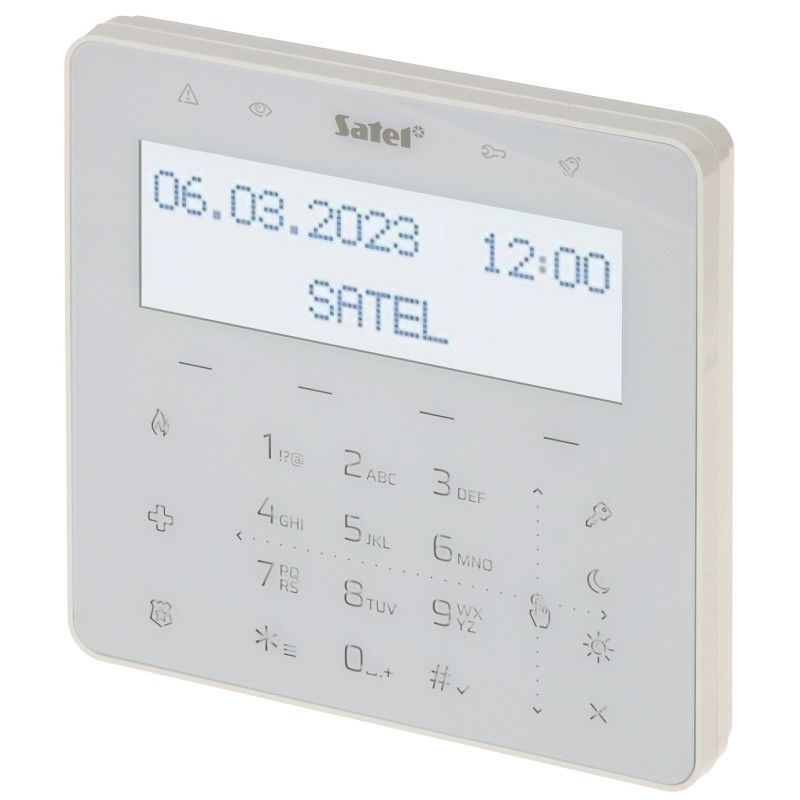

LCD sensory keypad for alarm systems white touch panel home automation controller SATEL INT-KSG2R-W
zł859.77
Tax included
The INT-KSG2R-W sensory keypad is a modern and highly aesthetic device that redefines how you interact with an advanced alarm system. Thanks to its minimalist white housing and flat profile, it blends perfectly into modern interiors, serving not only a functional role but also a decorative one. The device is designed to work with the flagship INTEGRA, INTEGRA Plus, and the latest PERFECTA 64 M control panels, making it a versatile choice for demanding users.The main advantage of the keypad is its intuitiveness. The use of a large, clear LCD display with customizable backlighting allows for quick reading of the system status even in total darkness. The keypad responds to touch with high precision, and support for swipe gestures makes navigating complex menus as simple as using a modern smartphone. This is crucial in stressful situations where quick access to security functions is a priority.This device is a true home automation control center. Thanks to the powerful MACRO functionality, the user can trigger a complex sequence of events with a single touch. For example, when leaving the house, you can simultaneously arm the alarm, close all external roller shutters, and turn off the lighting throughout the building. This saves time and ensures that no important task is overlooked. Additionally, built-in dedicated alarm buttons (PANIC, FIRE, AUXILIARY) ensure an immediate response in situations threatening life or property.Solid construction and advanced technology go hand in hand with ease of installation. The keypad has two additional inputs, allowing for the connection of local detectors (e.g., magnetic or vibration) directly to the keypad, reducing the amount of cabling in the building. Tamper protection monitors the safety of the device itself, immediately reporting any attempt to open the housing or detach it from the wall. By choosing this model, you are investing in the highest standard of security and unparalleled comfort in daily Smart Home system operation.
LCD sensory keypad for alarm systems white touch panel home automation controller
Model: SATEL INT-KSG2R-W
EAN: 6931240087718 SKU: 931087718
- Attractive and modern design with a white glass panel
- Large and clear LCD display with individual configuration options
- Gesture control support for easy menu navigation
- MACRO functions for one-touch home automation control
- Built-in 13.56 MHz S50 proximity reader (for future applications)
- Alarm buttons: FIRE, AUXILIARY, PANIC triggered directly from the panel
- Two additional wired inputs supporting roller shutter and vibration detectors
- Full tamper protection against opening and detachment from the wall
- Audible signaling of selected system events
- Compatibility with INTEGRA, INTEGRA Plus, and PERFECTA 64 M control panels
Description
The INT-KSG2R-W sensory keypad is a modern and highly aesthetic device that redefines how you interact with an advanced alarm system. Thanks to its minimalist white housing and flat profile, it blends perfectly into modern interiors, serving not only a functional role but also a decorative one. The device is designed to work with the flagship INTEGRA, INTEGRA Plus, and the latest PERFECTA 64 M control panels, making it a versatile choice for demanding users.
The main advantage of the keypad is its intuitiveness. The use of a large, clear LCD display with customizable backlighting allows for quick reading of the system status even in total darkness. The keypad responds to touch with high precision, and support for swipe gestures makes navigating complex menus as simple as using a modern smartphone. This is crucial in stressful situations where quick access to security functions is a priority.This device is a true home automation control center. Thanks to the powerful MACRO functionality, the user can trigger a complex sequence of events with a single touch. For example, when leaving the house, you can simultaneously arm the alarm, close all external roller shutters, and turn off the lighting throughout the building. This saves time and ensures that no important task is overlooked. Additionally, built-in dedicated alarm buttons (PANIC, FIRE, AUXILIARY) ensure an immediate response in situations threatening life or property.Solid construction and advanced technology go hand in hand with ease of installation. The keypad has two additional inputs, allowing for the connection of local detectors (e.g., magnetic or vibration) directly to the keypad, reducing the amount of cabling in the building. Tamper protection monitors the safety of the device itself, immediately reporting any attempt to open the housing or detach it from the wall. By choosing this model, you are investing in the highest standard of security and unparalleled comfort in daily Smart Home system operation.Specification
Cooperation and system
The device is fully compatible with Satel alarm control panels from the INTEGRA, INTEGRA Plus, and PERFECTA 64 M series. It provides full integration with security and home automation systems.
Display and interface
Large, alphanumeric LCD display with white backlighting. The standby screen can be individually configured to display the most important system parameters for the user or the date and time.
Keypad and control
High-sensitivity touch (sensory) panel. Supports swipe gestures for navigation. The keys are backlit, which facilitates operation at night.
MACRO functions
Allow for the execution of action sequences (e.g., controlling lighting, gates, roller shutters, and alarms) after touching a single button or entering a code.
Software and personalization
The system software of the control panels working with the keypad offers advanced interface personalization options. The installer can define up to 4 additional user menus, each of which can contain up to 16 unique items and quick-access functions. The system supports programming parametric resistance values for inputs and full diagnostics from the keypad level. The keypad firmware can be updated remotely via the RS-485 communication bus without the need to dismantle the device, ensuring access to the latest features and security patches.
Additional inputs
2 programmable wired inputs (supported by INTEGRA and INTEGRA Plus control panels). Support for EOL, 2EOL, 3EOL configurations and support for vibration and roller shutter detectors.
Security and Alarms
Quick triggering of special alarms from the keypad: PANIC, FIRE, AUXILIARY. LED indicators inform about the current status of zones and any system failures.
Proximity reader
Built-in card and proximity tag reader in the 13.56 MHz MIFARE S50 standard. Function dedicated to future applications within the development of INTEGRA control panel software.
Communication and bus
Connection to the control panel via a 4-wire communication bus. Support for the RS-485 protocol enabling stable data transmission over long distances.
Acoustic signaling
Built-in piezoelectric transducer for audible signaling of key presses, entry/exit time, and alarm events.
Tamper protection
Double tamper contact reacting to the opening of the housing and the detachment of the keypad from the wall or other mounting surface.
Power supply
Supply voltage: 12V DC (±15%). The maximum current consumption is 155 mA, which allows for stable operation even in extensive systems.
Operating conditions
Device intended for indoor use. Operating temperature range typical for Grade 2 alarm systems (Grade 2 security).
Construction and color
Housing made of high-quality white plastic. Front panel made of glass, scratch-resistant, and easy to keep clean.
Contents
1x INT-KSG2R-W sensory keypad
1x Mounting accessories (plugs, screws)
1x Quick installation guide
1x Parametric resistors
Dimensions, Weight
Product dimensions: 16 x 132 x 129 mm (D x W x H)
Package dimensions: 37 x 185 x 162 mm (D x W x H)
Product weight: 220 g
Weight with packaging: 346 g
