- New

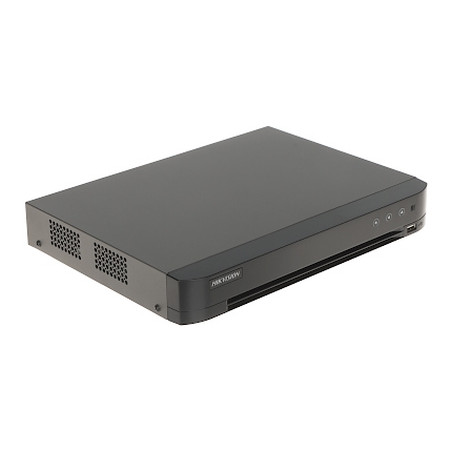

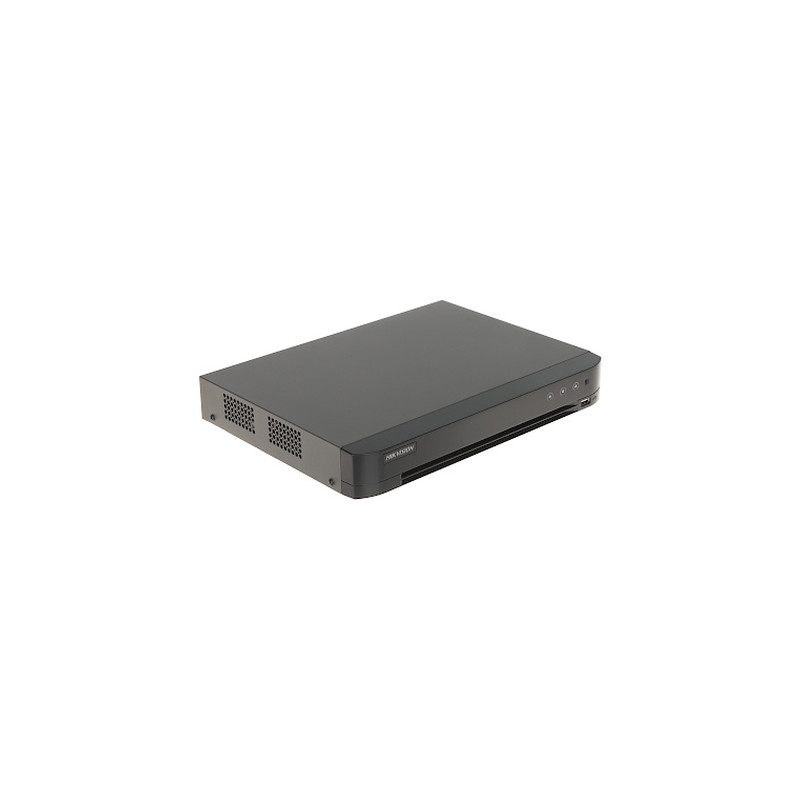

5-in-1 Hybrid DVR 4 Channels AcuSense Face Detection H.265+ 3K 5M-N Deep Learning Image Analysis Hikvision IDS-7204HQHI-M1/XT/4A
zł1,148.82
Tax included
The professional digital video recorder IDS-7204HQHI-M1/XT/4A+4/1ALM is an advanced hybrid device that redefines security standards in video surveillance systems. With support for five transmission standards: AHD, HD-CVI, HD-TVI, CVBS, and IP, the user gains unprecedented flexibility in camera selection. The greatest advantage of the device is the implemented AcuSense technology based on Deep Learning algorithms. It allows for intelligent filtering of false alarms by precisely recognizing human silhouettes and vehicles, which significantly reduces the number of unnecessary notifications generated by animals, rain, or leaves.
The DVR offers support for high resolutions, including 3K Lite and 5M-N, which guarantees a crystal-clear image necessary for identifying details. Advanced H.265 Pro+ compression allows for a drastic reduction in hard drive space usage without losing recording quality. The device features built-in perimeter protection functions, such as intrusion and line crossing, as well as a powerful face recognition module with the ability to compare them against a database of up to 16 images. An intuitive graphical menu and the free Hik-Connect mobile application make system management simple and possible from anywhere in the world. A robust design and a 3-year manufacturer's warranty confirm the highest quality of this model.
5-in-1 Hybrid DVR 4 Channels AcuSense Face Detection H.265+ 3K 5M-N Deep Learning Image Analysis
Model: Hikvision IDS-7204HQHI-M1/XT/4A+4/1ALM
EAN: 6931240088401 SKU: 931088402
- AcuSense technology - false alarm filtering (humans/vehicles)
- Support for 5 video standards: AHD, HD-CVI, HD-TVI, CVBS, IP
- Advanced H.265 Pro+ compression for disk space saving
- Intelligent image analysis: perimeter protection, face recognition
- Support for high resolutions 3K Lite and 5M-N
- Remote access via P2P cloud and Hik-Connect app
- Support for SATA hard drives up to 10 TB
- Built-in RS-485 interface for PTZ camera control
Description
The professional digital video recorder IDS-7204HQHI-M1/XT/4A+4/1ALM is an advanced hybrid device that redefines security standards in video surveillance systems. With support for five transmission standards: AHD, HD-CVI, HD-TVI, CVBS, and IP, the user gains unprecedented flexibility in camera selection. The greatest advantage of the device is the implemented AcuSense technology based on Deep Learning algorithms. It allows for intelligent filtering of false alarms by precisely recognizing human silhouettes and vehicles, which significantly reduces the number of unnecessary notifications generated by animals, rain, or leaves.
The DVR offers support for high resolutions, including 3K Lite and 5M-N, which guarantees a crystal-clear image necessary for identifying details. Advanced H.265 Pro+ compression allows for a drastic reduction in hard drive space usage without losing recording quality. The device features built-in perimeter protection functions, such as intrusion and line crossing, as well as a powerful face recognition module with the ability to compare them against a database of up to 16 images. An intuitive graphical menu and the free Hik-Connect mobile application make system management simple and possible from anywhere in the world. A robust design and a 3-year manufacturer's warranty confirm the highest quality of this model.
Specification
Video standard
AHD, HD-CVI, HD-TVI, CVBS, IP
Video Inputs/Outputs
4x BNC (Analog), 1x HDMI, 1x VGA, 1x CVBS (BNC socket)
Audio interfaces
4x CINCH input, 1x CINCH output, 4x Audio via coaxial cable (Coaxial audio)
Data compression
H.265 Pro+ / H.265 Pro / H.265 / H.264+ / H.264
Recording resolution
HD-TVI: 3K Lite (1480x1944px); HD-TVI/CVI/AHD: 5M-N (1296x1944px), 4M-N (1280x1440px), 1080p (1920x1080px), 1080N, 720p; CVBS: 960H; IP: up to 6 Mpx (3072x2048px)
Recording speed
6 Mpx IP @ 25 fps, 3K Lite @ 12 fps, 5M-N @ 12 fps, 4M-N/1080p @ 15 fps, 720p/1080N @ 25 fps
Hybrid mode
4 channels (Analog/TVI/CVI/AHD) + 2 channels IP (total up to 6 IP channels)
Data storage
1x SATA interface, support for drives up to 10 TB
Network and protocols
1x RJ-45 10/100 Base-T, ONVIF, support for up to 32 online users
AcuSense intelligent functions
Human and vehicle classification, perimeter protection (intrusion, line crossing), face recognition, Smart Search
Software and remote access
The Hik-Connect application (Android/iOS) provides full access to live view, push notifications, and playback of recordings. The system supports P2P cloud operation, eliminating the need for a static IP address. The built-in web server allows for configuration via IE browser, enabling remote archiving and changing operating parameters. The user interface is clear and responsive, offering advanced tools for managing users and system logs. The iVMS-4200 client software allows for integration with larger security systems.
Additional interfaces
2x USB 2.0, 1x RS-485 (Pelco-D/P), 4 alarm inputs / 1 alarm output
Power supply and consumption
12V DC / 1.5A (power adapter included), power consumption ≤ 18W (without HDD)
Physical parameters
Black color, standalone housing, weight 1.16 kg, dimensions 319 x 244 x 48 mm
Additional information
Support for 22 languages, 3-year warranty, SAP code 300228698
Contents
1x DVR IDS-7204HQHI-M1/XT/4A+4/1ALM
1x Power adapter 12V 1.5A
1x USB wired mouse
1x Set of cables for SATA drive connection
1x User manual
Dimensions, Weight
Product dimensions: 244 x 319 x 48 mm (D x W x H)
Package dimensions: 300 x 380 x 120 mm (D x W x H)
Product weight: 1160 g
Weight with packaging: 1850 g
