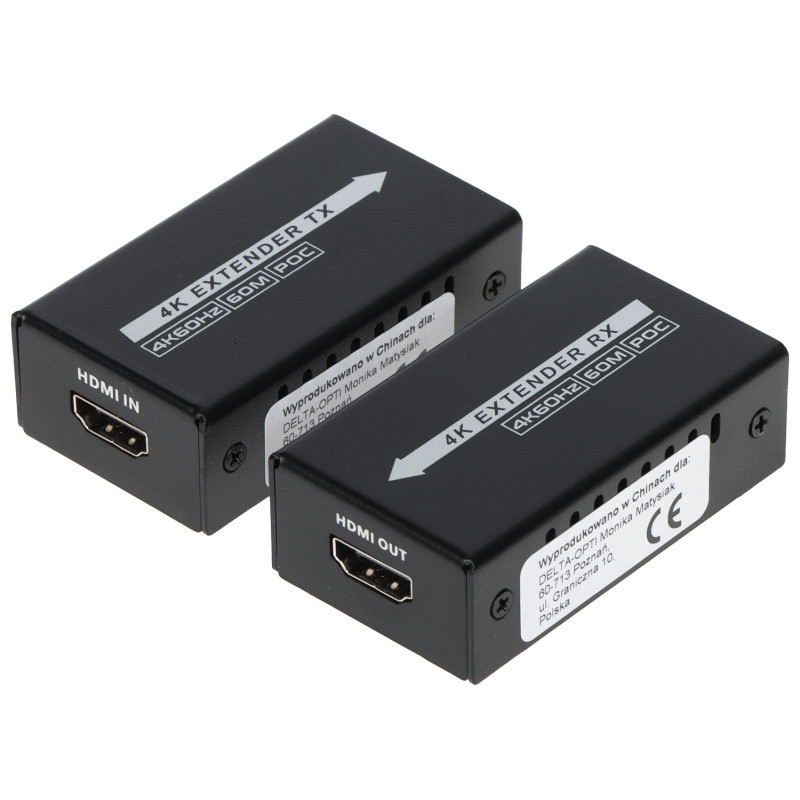

HDMI Extender 4K UHD 60m over RJ45 Cat.6/6A/7 Cable HDCP 2.2 PoC Mini Video Signal Converter Delta Multimedia HDMI-EX-60-4K-MINI
zł371.95
Tax included
The high-end HDMI-EX-60-4K-MINI extender is an innovative solution for transmitting ultra-high resolution 4K UHD video signals over long distances. This device is designed for users seeking reliability and superior image quality while maintaining aesthetics and installation simplicity. By using a standard Category 6, 6A, or 7 twisted pair cable, it is possible to transmit an HDMI signal to a receiver up to 60 meters away, which is a much more economical and practical solution than using long and expensive HDMI cables.
Advantages of using the HDMI-EX-60-4K-MINI extender:
Firstly, savings and flexibility. Twisted pair cable is significantly cheaper and easier to route through conduits or cable trays than rigid HDMI cable. Secondly, support for the 4K UHD standard guarantees a crystal-clear image, ideal for modern televisions, projectors, and monitors. The device supports the HDCP 2.2 protocol, ensuring full compatibility with the latest Blu-ray players, game consoles, and satellite tuners. Another significant advantage is the One-Way PoC (Power over Cable) function, which allows the entire set (transmitter and receiver) to be powered using only one power adapter connected to the transmitter. This reduces the number of electrical outlets needed near the TV, which significantly improves installation aesthetics.
Product applications:
The extender is perfect for home theater systems, conference rooms, monitoring centers, and Digital Signage advertising installations. The robust housing and built-in surge protection and electrostatic discharge (ESD) protection ensure longevity and operational stability even in demanding conditions. The compact "mini" dimensions make the device discreet and easy to hide behind a TV housing or in a RACK cabinet. This is a professional tool for anyone who requires seamless 4K signal transmission over long distances.
HDMI Extender 4K UHD 60m over RJ45 Cat.6/6A/7 Cable HDCP 2.2 PoC Mini Video Signal Converter
Model: Delta Multimedia HDMI-EX-60-4K-MINI
EAN: 6931240038635 SKU: 931038638
- HDMI signal transmission via Cat. 6/6A/7 twisted pair cable
- Supports 4K UHD resolution (3840x2160) @ 24/25Hz
- Maximum transmission range up to 60 meters
- Supports HDMI 2.0 and HDCP 2.2 standards
- One-Way PoC power supply - only one power adapter required at the transmitter
- Built-in surge and lightning protection
- ESD protection to ensure device durability
- Compact Mini housing for easy installation in tight spaces
- No signal transmission delay (Real-time transmission)
Description
The high-end HDMI-EX-60-4K-MINI extender is an innovative solution for transmitting ultra-high resolution 4K UHD video signals over long distances. This device is designed for users seeking reliability and superior image quality while maintaining aesthetics and installation simplicity. By using a standard Category 6, 6A, or 7 twisted pair cable, it is possible to transmit an HDMI signal to a receiver up to 60 meters away, which is a much more economical and practical solution than using long and expensive HDMI cables.
Advantages of using the HDMI-EX-60-4K-MINI extender:
Firstly, savings and flexibility. Twisted pair cable is significantly cheaper and easier to route through conduits or cable trays than rigid HDMI cable. Secondly, support for the 4K UHD standard guarantees a crystal-clear image, ideal for modern televisions, projectors, and monitors. The device supports the HDCP 2.2 protocol, ensuring full compatibility with the latest Blu-ray players, game consoles, and satellite tuners. Another significant advantage is the One-Way PoC (Power over Cable) function, which allows the entire set (transmitter and receiver) to be powered using only one power adapter connected to the transmitter. This reduces the number of electrical outlets needed near the TV, which significantly improves installation aesthetics.
Product applications:
The extender is perfect for home theater systems, conference rooms, monitoring centers, and Digital Signage advertising installations. The robust housing and built-in surge protection and electrostatic discharge (ESD) protection ensure longevity and operational stability even in demanding conditions. The compact "mini" dimensions make the device discreet and easy to hide behind a TV housing or in a RACK cabinet. This is a professional tool for anyone who requires seamless 4K signal transmission over long distances.
Specification
Supported HDMI standard
2.0 - High Definition Multimedia Interface providing high bandwidth for 4K video.
HDCP protocol compliance
2.2 - Image and sound control and security system required for Ultra HD content.
Supported HDMI resolutions
480i @ 60Hz, 480p @ 60Hz, 576i @ 50Hz, 576p @ 50Hz, 720p @ 50/60Hz, 1080i @ 50/60Hz, 1080p @ 50/60Hz, 4K UHD @ 24/25Hz.
Maximum transmission range
60 m using UTP Cat. 6, 6A, 7 cable. Range may be reduced with lower quality cables.
Transmission medium
Twisted pair cable Cat. 6/6A/7 (solid copper recommended).
Power supply (PoC)
5V DC / 2A. Powering only the transmitter is possible (RX powered via UTP cable).
Current and power consumption
≤ 5 W (total for transmitter + receiver set).
Protections
Lightning, surge, electrostatic (ESD).
Operating temperature
-20 °C ... 60 °C.
Device weight
Transmitter and receiver total: 0.09 kg (90 g).
Dimensions of a single module
67 x 39 x 22 mm.
Automatic adaptation
Auto-adjustment system matching signal parameters to the length and quality of the RJ45 cable.
Manufacturer warranty
2 years.
TMDS and EDID technology
The device features a built-in advanced microcontroller with firmware managing TMDS (Transition Minimized Differential Signaling) signal transmission. The system automatically copies and optimizes EDID (Extended Display Identification Data) from the receiver to the transmitter, ensuring immediate negotiation of the best available resolution and refresh rate without user intervention. The firmware monitors connection stability in real-time and corrects synchronization errors resulting from network cable attenuation, guaranteeing a smooth image without artifacts.
Contents
1x Transmitter (TX)
1x Receiver (RX)
1x 5V 2A Power adapter
1x User manual
Dimensions, Weight
Product dimensions: 22 x 67 x 39 mm (D x W x H)
Packaging dimensions: 75 x 155 x 120 mm (D x W x H)
Product weight: 90 g
Weight with packaging: 370 g
