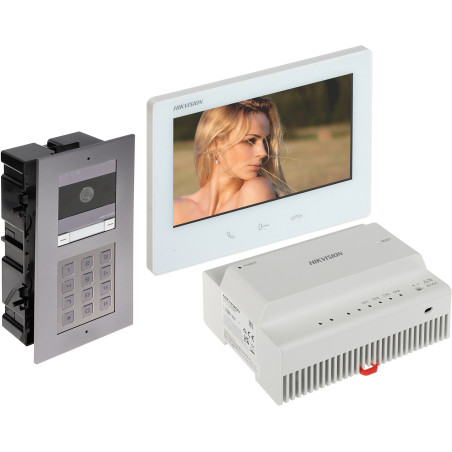

2-Wire HD Video Intercom Kit 7 Inch Touch Monitor Wi-Fi IP65 IK10 Hik-Connect Flush Mount Hikvision DS-KIS704EY-ACF2/ALUMINUM
zł2,766.27
Tax included
The professional 2-wire video intercom kit by Hikvision is a comprehensive solution for those seeking security and comfort in a modern design. The system, based on innovative 2-wire (HD) technology, allows the use of existing cabling, making it an ideal choice for both new buildings and modernized installations. The core of the kit is an elegant, 7-inch high-resolution touchscreen monitor that provides a crystal-clear image and intuitive operation.
The outdoor station, made of high-quality aluminum, is characterized by exceptional resistance to weather conditions (IP65) and mechanical damage (IK10), ensuring the longevity of the device. The built-in 2 MP camera with a wide 133-degree viewing angle and IR illuminator allows for clear identification of visitors even in total darkness. The kit is enhanced with a keypad module featuring backlit buttons, which significantly facilitates daily communication.
One of the biggest advantages of the system is full integration with the Hik-Connect mobile application. Thanks to the built-in Wi-Fi module in the monitor, the user can receive calls, conduct video conversations, and remotely open the wicket or gate from anywhere in the world using a smartphone. The system also offers advanced audio features, such as noise suppression and echo cancellation, ensuring the highest conversation quality. The entire setup is flush-mounted in a dedicated, robust housing, which ensures an aesthetic appearance for the facade.
2-Wire HD Video Intercom Kit 7 Inch Touch Monitor Wi-Fi IP65 IK10 Hik-Connect Flush Mount
Model: Hikvision DS-KIS704EY-ACF2/ALUMINUM
EAN: 6931240044186 SKU: 931044185
- Modern Hikvision 2-wire technology EY series
- Large 7-inch touchscreen monitor with 1024x600 px resolution
- Full HD 2 MP camera with wide 133° viewing angle
- Built-in Wi-Fi module for mobile app support
- High ingress protection rating IP65 and mechanical resistance IK10
- Two bell buttons with configuration options
- IR infrared illuminator for night operation
- microSD card support up to 128GB for photos and messages
- Two-way voice communication with noise reduction
- Aesthetic flush mounting in an aluminum housing
Description
The professional 2-wire video intercom kit by Hikvision is a comprehensive solution for those seeking security and comfort in a modern design. The system, based on innovative 2-wire (HD) technology, allows the use of existing cabling, making it an ideal choice for both new buildings and modernized installations. The core of the kit is an elegant, 7-inch high-resolution touchscreen monitor that provides a crystal-clear image and intuitive operation.
The outdoor station, made of high-quality aluminum, is characterized by exceptional resistance to weather conditions (IP65) and mechanical damage (IK10), ensuring the longevity of the device. The built-in 2 MP camera with a wide 133-degree viewing angle and IR illuminator allows for clear identification of visitors even in total darkness. The kit is enhanced with a keypad module featuring backlit buttons, which significantly facilitates daily communication.
One of the biggest advantages of the system is full integration with the Hik-Connect mobile application. Thanks to the built-in Wi-Fi module in the monitor, the user can receive calls, conduct video conversations, and remotely open the wicket or gate from anywhere in the world using a smartphone. The system also offers advanced audio features, such as noise suppression and echo cancellation, ensuring the highest conversation quality. The entire setup is flush-mounted in a dedicated, robust housing, which ensures an aesthetic appearance for the facade.
Specification
System Compatibility
HIKVISION 2-wire - EY series (2-Wire HD Technology)
Monitor - Screen and Resolution
7 inches - capacitive touchscreen, resolution 1024 x 600 px
Monitor - Communication and Features
Wi-Fi module IEEE 802.11 b/g/n, built-in microphone and speakers, two-way communication, automatic photo saving, voice message recording, microSD card support up to 128 GB
Monitor - Technical Parameters
Power supply 48V DC (2-wire), power consumption ≤ 5W, weight 0.35kg, dimensions 190 x 138 x 20 mm, color white + silver
Outdoor Station - Camera
Sensor 2 MP, viewing angle 133°, H.264 compression, IR illuminator for night operation
Outdoor Station - Interfaces
2 bell buttons, 2 alarm inputs, 1 relay output NO/NC, pulse output for electric lock (20V / 4A)
Outdoor Station - Construction
Metal housing, IP65 protection rating, mechanical resistance IK10, weight 0.28kg, dimensions 100 x 98 x 35 mm
Keypad Module
Large, backlit buttons, aluminum + plastic housing, IP65 protection rating, IK07 resistance, weight 0.27kg
2-Wire Switch
4 ports HIKVISION 2-wire (EY series), DIN rail mounting (TS-35), plastic housing, dimensions 144 x 90 x 66 mm
Mounting Box
Flush mounting, space for 2 modules, aluminum front panel, external dimensions 236 x 124 x 60 mm
Hik-Connect Software
The advanced Hik-Connect mobile application enables full remote management of the video intercom system. Thanks to it, the user receives real-time push notifications of doorbell rings, can conduct video calls with people at the door, and remotely unlock the bolt or gate. The application allows for viewing the camera feed at any time, browsing saved photos, and recordings from the memory card. It supports P2P cloud technology, which eliminates the need for a public IP address. The interface is clean, available in multiple languages, and allows for sharing permissions with other household members.
Audio Features
Full Duplex two-way communication, ambient noise suppression, acoustic echo cancellation
System Power Supply
48V DC system power supply, power and signal distribution via 2 wires to the monitor and station
Operating Conditions and Languages
Operating temperature: -40°C to +60°C (outdoor), -10°C to +50°C (monitor). Supported languages: Polish, English, German, French, and others.
Warranty
3 years (Hikvision manufacturer)
Contents
1x 7" Wi-Fi touchscreen monitor
1x 2 MP outdoor station
1x Keypad module
1x 2-module flush-mount box
1x 2-wire switch
1x Mounting accessories
Dimensions, Weight
Product dimensions: 60 x 236 x 124 mm (D x W x H)
Package dimensions: 180 x 320 x 220 mm (D x W x H)
Product weight: 1450 g
Weight with packaging: 2100 g
