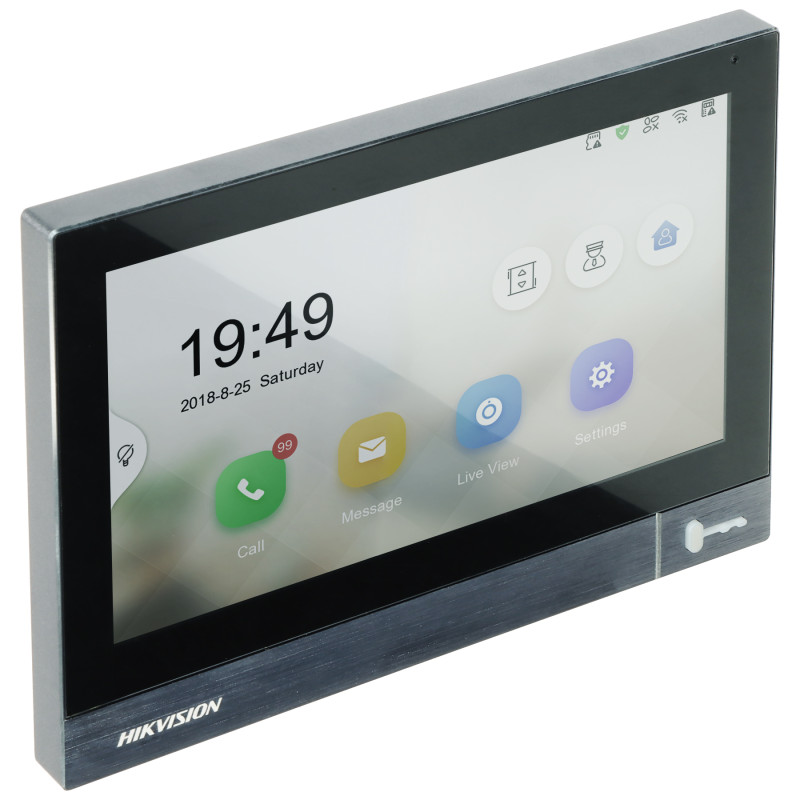

7-inch IP Wi-Fi Video Intercom Indoor Station IPS Hik-Connect Alarm Touch Silver

Model: Hikvision DS-KH8381-WTE1

EAN: 6931240099353 SKU: 931099351

• High-quality 7-inch IPS touch screen with 1024x600 resolution
• Built-in 2.4 GHz Wi-Fi module (IEEE 802.11 b/g/n) for wireless connectivity
• Support for 8 alarm inputs - simplified alarm control panel function
• 4 NO/NC relay outputs for building automation control
• Integrated microSD card slot for up to 128 GB (not included)
• Two-way audio communication via built-in microphone and speakers
• Power supply via PoE (802.3af/at) or standard 12V DC
• Full integration with the Hikvision ecosystem via Hik-Connect app and iVMS-4200 software
• Elegant and durable housing made of high-quality aluminum
• Automatic photo capture of visitors in case of no response

Description

The DS-KH8381-WTE1 panel is a modern and extremely advanced device designed to create a simple yet highly effective local communication system within a home IP network. This elegant monitor is dedicated to direct cooperation with Hikvision IP video intercom systems, which guarantees users the highest image quality and crystal-clear sound.

One of the most important advantages of the presented model is its multifunctionality. The device not only allows for conversations with people at the entrance but, thanks to its architecture, can also act as a simplified alarm control panel. Support for up to 8 alarm inputs allows for the integration of the panel with various types of sensors (e.g., motion, smoke, flood), which significantly increases the overall security level of the facility. Furthermore, 4 NO/NC relay outputs give the user the ability to remotely control additional home automation elements, such as driveway lighting, garage door drives, or gate strikes.

The heart of the device is a high-class 7-inch screen made with IPS technology with a resolution of 1024 x 600 pixels. The IPS matrix provides excellent viewing angles and faithful color reproduction, which is crucial for identifying visitors. The capacitive touch panel makes navigating the menu smooth and intuitive. An additional advantage is the built-in Wi-Fi module operating in the 2.4 GHz standard, which drastically facilitates the installation process in places where running a traditional network cable would be difficult or impossible. The whole unit is enclosed in a stylish aluminum housing that combines durability and modern design, perfectly fitting into contemporary residential and office interiors.

Specification

System compatibility

The device is fully compatible with Hikvision IP video intercom systems. It works with outdoor stations and other monitors within the same installation, enabling the intercom function.

Display and screen

Matrix type: 7-inch IPS - capacitive touch screen. IPS technology provides wide viewing angles and high contrast. Control is performed via touch.

Image parameters

Screen resolution: 1024 x 600 px. The system supports smooth adjustment of monitor parameters, including image brightness, which allows for adapting the display to the lighting conditions in the room.

Memory and data storage

Built-in internal memory: 128 MB. The device has a slot for microSD memory cards with a maximum capacity of up to 128 GB (card not included). Ability to save photos and short voice messages.

Wi-Fi wireless connectivity

Built-in Wi-Fi module operating at 2.4 GHz frequency, IEEE 802.11 b/g/n standards. Allows connection to a home router without the need to run network cables to the monitor.

Communication interfaces

The monitor is equipped with an RS-485 interface (data transmission standard via two-wire cable) and an RS-232 interface, which allows for advanced integration with external systems.

Alarm inputs and outputs

Alarm inputs: 8 units (sensor support). Relay outputs: 4 x NO/NC. Additionally, the device has a 12 V DC / 0.5 A power output for powering accessories.

Audio parameters

Built-in high-sensitivity microphone and built-in speakers. The system supports two-way communication (duplex), allowing for free conversation with the person at the outdoor station.

Management and Software

The device is fully configurable via iVMS-4200 software. iVMS-4200 is a professional client application for managing security systems, allowing for full device parameterization, video preview, and permission management. The monitor also works with the Hik-Connect mobile app available for Android/iOS. Hik-Connect allows for receiving video intercom calls on a smartphone, remote door opening, viewing Hikvision IP cameras, and receiving alarm event notifications from anywhere in the world.

System functions

Physical door opening button on the housing. Remote opening via software. Support for photo capture during calls. Smooth volume adjustment for ringtone and conversation. Automatic photo saving in case of no response.

Power supply and power consumption

Two power supply methods: PoE in 802.3af/at standard or external 12 V DC / 1.5 A power supply. The maximum power consumption of the device is ≤ 12 W.

Construction and aesthetics

Housing made of aluminum, ensuring high mechanical resistance and an elegant look. Colors: Silver combined with a black front panel.

Environmental conditions

Operating temperature: from -10 °C to 50 °C. Device intended for indoor installation.

Logistics data

Monitor dimensions: 180 x 128 x 22 mm. Net weight: 0.49 kg. Cardboard packaging dimensions: 250 x 175 x 60 mm. Gross weight of the set: 0.752 kg. SAP code: 305305631.

Contents

1x DS-KH8381-WTE1 indoor station

1x Mounting accessories

1x User manual

Dimensions, Weight

Product dimensions: 22 x 180 x 128 mm (D x W x H)

Packaging dimensions: 60 x 250 x 175 mm (D x W x H)

Product weight: 490 g

Weight with packaging: 752 g

Zum Download

• CE Declaration
• SAFETY COMPLIANCE
