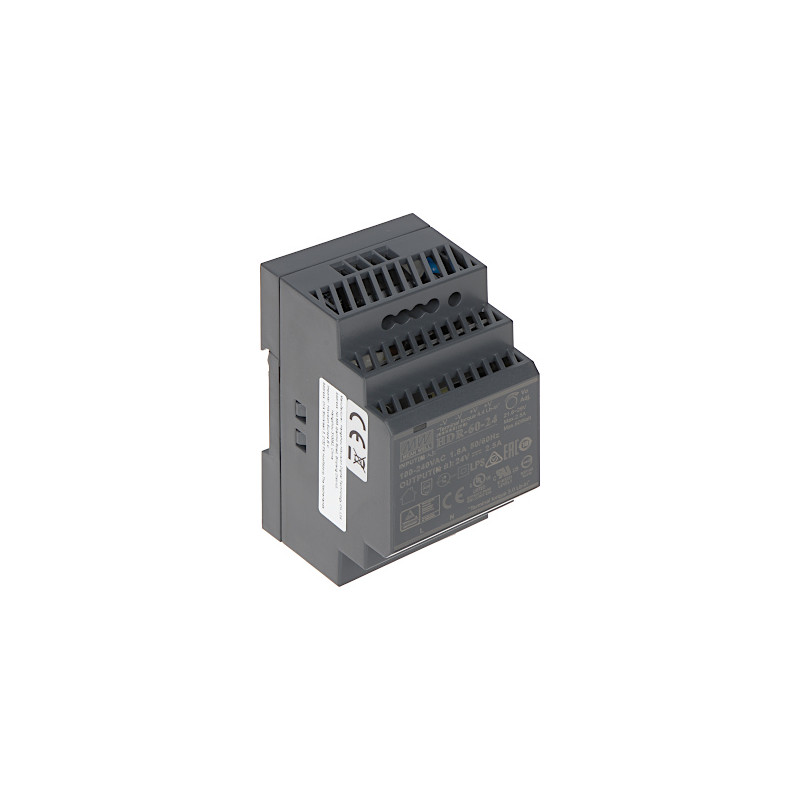

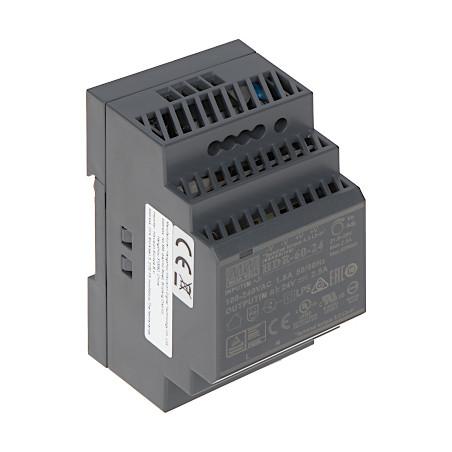

24V DC 2.5A 60W Industrial DIN Rail Switching Power Supply Adjustable

Model: Hikvision DS-KAW60-2N

EAN: 6931240013311 SKU: 931013318

• Designed for mounting on DIN rail TS35/7.5 or 15
• High energy efficiency and operational stability
• Wide AC input voltage range
• Output voltage regulation in the range of 21.6V ... 29V
• Resistance to mechanical vibration
• Capable of operating in extreme temperatures up to 70°C
• Dual DC power output
• Built-in complete set of electronic protections

Description

The professional switching power supply DS-KAW60-2N is a high-end device designed for the reliable power supply of building automation systems, video intercom systems, and modern CCTV industrial television. Thanks to its advanced electronic design, this power supply provides an exceptionally stable 24V DC output voltage at a current capacity of up to 2.5A, which totals a rated power of 60W. The greatest advantage of the device is its installation versatility – it is fully adapted for professional installation on a standard DIN rail (TS35/7.5 or 15), making it an ideal solution for control cabinets, electrical switchboards, and home telecommunication boxes.

Specification

Operational safety is a priority, which is why the power supply is equipped with a complete set of protections: short-circuit, overload, and overvoltage. A solid housing made of high-quality plastic protects the precise internal components from mechanical damage. Two independent power outputs allow for convenient and aesthetic connection of receivers without the need for additional distribution strips. This is a product dedicated to demanding installers and users who do not accept compromises regarding the stability of power systems that are critical for safety and automation.

A key feature of the DS-KAW60-2N model is its high resistance to harsh and variable environmental conditions. The device has been designed to operate flawlessly in a wide temperature range from -30°C to +70°C. This characteristic allows for the safe use of the power supply in unheated technical rooms, production halls, or appropriately protected external enclosures. The high energy efficiency of the module minimizes energy losses and heat emission, which directly translates into an increased service life of the power supply itself and other components inside the mounting cabinet.

Power standard

Switching - high-frequency voltage converter ensuring stable operating parameters.

Supply voltage (input)

85 ... 264 V AC - wide range of supported alternating voltages.

Output voltage (rated)

24 V DC - direct current ideal for automation and intercom systems.

Voltage regulation range

21.6 V ... 29 V - possibility of precise voltage fine-tuning to receiver requirements.

Current efficiency

2.5 A - maximum continuous current delivered to the load.

Total power

60 W - parameter defining the total energy capacity of the device.

Number of power outputs

2 pcs - facilitates connection of multiple devices directly to the power supply.

Housing type and mounting

DIN - standard modular housing adapted for snapping onto a TS35 rail.

Short-circuit protection

Yes - automatic power cut-off in case of a detected short circuit in the secondary circuit.

Overload protection

Yes - protection against current draw exceeding the power supply standards.

Overvoltage protection

Yes - reduction of effects of sudden voltage spikes in the power grid.

Resistance to external factors

Vibration resistance - allows for installation near operating machines.

Operating conditions

Temperature: -30 °C ... 70 °C; Relative humidity: 20 ... 95 % (non-condensing).

SAP parameters

SAP code: 305301453 - unique manufacturer logistic identifier.

Manufacturer warranty

3 years - long service protection period confirming high build quality.

Dimensions, Weight

Product dimensions: 58 x 51 x 93 mm (D x W x H)

Package dimensions: 100 x 65 x 60 mm (D x W x H)

Product weight: 190 g

Weight with packaging: 207 g
