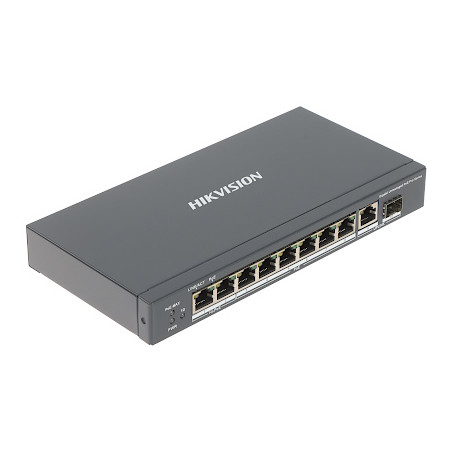

8 Port PoE+ Switch 2x Hi-PoE Gigabit SFP RJ45 Extender 300m Watchdog Metal Housing CCTV

Model: Hikvision DS-3E0510HP-E

EAN: 6931240038796 SKU: 931038791

• 8 Gigabit Ethernet ports with PoE support
• 2 ports supporting Hi-PoE standard (802.3bt) with up to 90W power
• 6 ports supporting PoE standard (802.3af/at) with up to 30W power
• Two Uplink ports: 1x Gigabit RJ45 and 1x Gigabit SFP
• Extend mode allowing for range up to 300m (on ports 7 and 8)
• PoE Watchdog function for automatic restart of frozen devices
• Built-in port isolation for improved network security
• 6kV surge protection on PoE ports
• Robust, metal desktop housing
• Plug & Play technology - no complicated configuration required

Description

This high-class 8-port PoE switch is a reliable desktop device that will prove perfect for expanding modern home and office networks. The main advantage of this model is support for the Hi-PoE standard on the first two ports, which allows for powering the most demanding devices, such as PTZ dome cameras, with power reaching up to 90W per port. The remaining 6 ports support the PoE standard (802.3af/at) with up to 30W each, making it a universal solution for IP cameras, access points, and VoIP phones.

Specification

The device offers a unique 'Extend' feature, which, once activated, allows for data and power transmission over an impressive distance of up to 300 meters. This is an ideal solution for situations where the standard 100 meters of twisted-pair cabling proves insufficient. An additional advantage is the built-in PoE Watchdog mechanism, which constantly monitors the status of connected devices. In case of detecting a lack of response, the switch automatically resets the power on the given port, which allows for automatic system recovery without technician intervention. The robust metal housing ensures excellent heat dissipation and resistance to mechanical damage, while the Gigabit uplink ports (RJ45 and SFP) guarantee smooth data transmission to the network core without creating bottlenecks.

LAN Ports

8 x RJ45 10/100/1000 Base-TX (2x Hi-PoE 802.3af/at/bt + 6x PoE 802.3af/at)

Uplink Ports

1 x RJ45 10/100/1000 Base-TX, 1 x SFP 1000 Base-X

Transmission Speed

10 / 100 / 1000 Mb/s for LAN and Uplink ports; 1000 Mb/s for SFP port

Maximum Output Power

90W per Hi-PoE port (Port 1, 2); 30W per PoE port (Port 3-8)

Maximum Total Power

110 W (total budget for all PoE ports)

PoE Standards

IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt (Hi-PoE)

MAC Address Table

4k - ensures efficient handling of multiple devices on the network

Operating Modes (switches)

Extend Off (100m/1000Mb/s), Extend On (300m/10Mb/s on ports 7 and 8), Port Isolation, Watchdog PoE

Software and Intelligence

The device features an implemented intelligent power management algorithm that prioritizes lower-numbered ports. A key element of the firmware is the PoE Watchdog (PD Alive) function. This is advanced system logic that analyzes network traffic on each PoE port in real-time. If the algorithm detects that the connected device (e.g., an IP camera) has stopped responding to queries, the system automatically performs a hard power reset on that specific channel. Thanks to this solution, monitoring downtime is reduced to a minimum, and system stability increases without the need for manual handling by a network administrator.

Security

6kV surge protection for PoE ports; Kensington-lock compatibility

Signaling

LED Indicators: Power, Link/Act, PoE, PoE Max

Power Supply

54 V DC / 2.22 A (external power adapter included in the set)

Power Consumption

Maximum 120 W at full PoE load

Housing and Environment

Powder-coated metal housing; Operating temperature from -10 °C to 40 °C

Dimensions and Weight

Dimensions: 218 x 109 x 28 mm; Net weight: 0.58 kg

Dimensions, Weight

Product dimensions: 109 x 218 x 28 mm (D x W x H)

Package dimensions: 140 x 265 x 95 mm (D x W x H)

Product weight: 580 g

Weight with packaging: 1336 g
