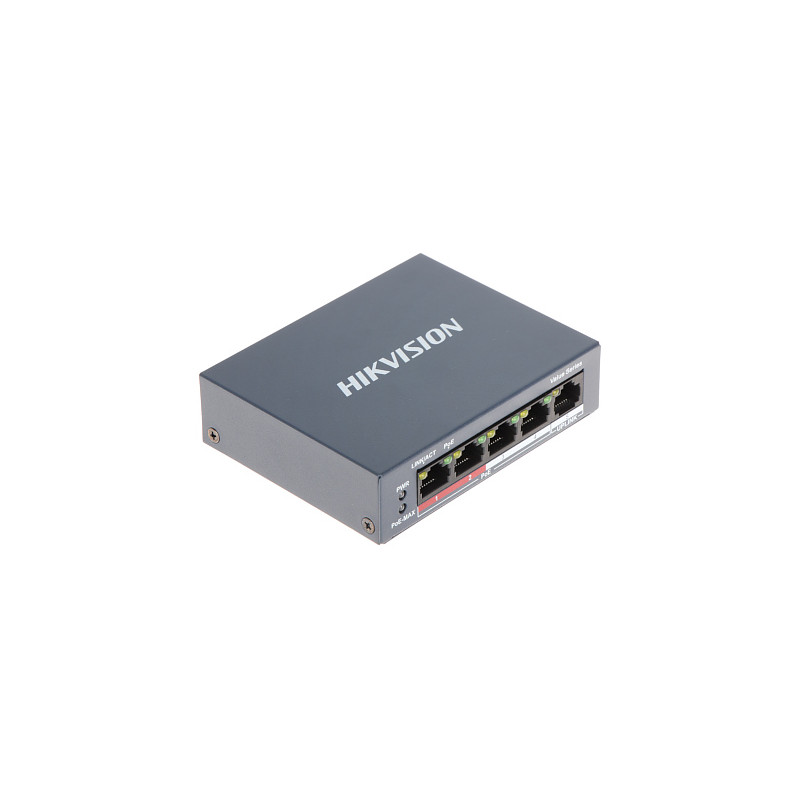

PoE Switch 4 Ports + 1 Uplink LAN RJ45 Extended Range 300m Stable Network Transmission

Model: Hikvision DS-3E0105P-E/M(B)

EAN: 6931240062791 SKU: 931062791

• 4 x 10/100 Mbps PoE ports and 1 x 100 Mbps Uplink port
• Support for IEEE 802.3af and IEEE 802.3at standards
• Maximum output power up to 30W per port (total budget 35W)
• Extend mode enabling transmission up to 300m at 10 Mbps speed
• Transmission prioritization on ports 1 and 2 for video stability
• Store-and-forward technology to minimize transmission errors
• PoE port surge protection up to 6 kV
• Durable, metal desktop housing, fanless design
• LED indicators for power status and port activity

Description

Thanks to its reliability and high-quality transmission, the 4-port desktop PoE switch DS-3E0105P-E/M(B) is an ideal solution for expanding home or office networks. Four ports support Power over Ethernet (PoE) functionality, allowing for direct power supply to devices such as IP cameras or access points via a network cable.

The device is characterized by exceptional performance and is dedicated to video surveillance systems. A key advantage of this model is the long-range mode, which enables data and power transmission up to 300 meters, significantly reducing installation costs in large facilities. The switch features high-priority ports (1 and 2) that ensure stable signal reception from the most critical cameras without the risk of dropped frames.

The solid metal housing provides excellent heat dissipation and a long lifespan, while the fanless design ensures silent operation. It is a Plug and Play device, meaning it requires no user configuration – simply connect the cables, and the system will automatically optimize operating parameters.

Product advantages:

- Support for IEEE 802.3af/at (PoE/PoE+) standards

- Extend mode increasing range up to 300 meters

- High surge protection for PoE ports

- Intelligent power budget management with PoE Max LED

- Compact dimensions ideal for small telecommunications cabinets

Specification

Standards

IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at

LAN Ports

1 x RJ45 100 Base-T (Uplink), 4 x 10/100 Base-T (PoE 802.3af/at)

Transmission speed

10 / 100 Mbps for all ports

Maximum PoE power

30 W per PoE port, total device power budget is 35 W

Operating modes

Extend On: range up to 300 m at 10 Mbps (UTP Cat. 5e/6) | Extend Off: range up to 100 m at 100 Mbps

Prioritization

Ports 1 and 2 marked as high transmission priority ports

MAC address table

1k - automatic address learning and updating

LED indicators

Power, PoE Max (power budget information), Link/Act (connection status/activity)

Management

Unmanaged device, Plug & Play with internal PoE control logic

Certificates

CE, RoHS

Protection

High surge protection up to 6 kV for power ports

Operating conditions

Temperature: -10 °C ... 55 °C, humidity up to 95% non-condensing

Power supply

48 V DC / 800 mA (external power adapter included)

Software

The device is equipped with advanced logic for automatic detection of connected PoE Powered Devices (PD). The system intelligently monitors power consumption on each channel to prevent overloads. If the permissible 35W power budget is exceeded, the built-in circuit manages priorities, cutting off power from lower-priority ports to maintain the stability of critical devices. As a result, the surveillance system operates continuously even during peak energy demand.

Warranty

3 years (36 months)

Content

1x PoE Switch DS-3E0105P-E/M(B)

1x Power adapter 48V DC / 0.8A

1x User manual

Dimensions, Weight

Product dimensions: 86 x 105 x 28 mm (D x W x H)

Package dimensions: 110 x 195 x 95 mm (D x W x H)

Product weight: 200 g

Weight with package: 686 g
