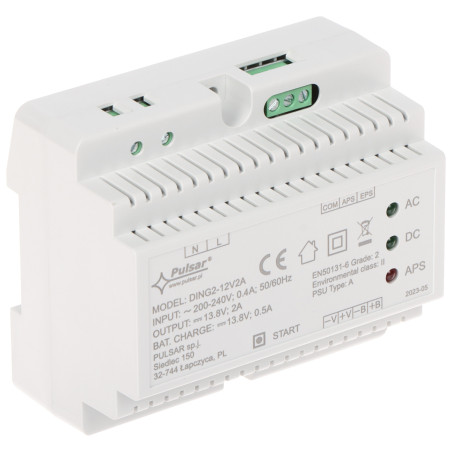

DIN rail switch-mode buffer power supply 12V 2.5A for CCTV and access control systems

Model: PULSAR DING2-12V2A

EAN: 6931240056226 SKU: 931056222

• Compliance with EN50131-6 standard (Grade 1, 2)
• DIN rail mounting (TS-35)
• High efficiency up to 90%
• Cold start function
• Battery deep discharge protection
• EPS FLT and APS FLT technical outputs (OC type)
• Dynamic battery test
• Compact housing with 6U width

Description

The Pulsar DING2-12V2A is a professional switch-mode buffer power supply designed for uninterruptible power supply of critical security system components. The device is ideal for alarm systems, access control installations, CCTV, and any application requiring high reliability and voltage stability. The main function of the power supply is to provide 13.8V DC to receivers while simultaneously charging a lead-acid or AGM battery. In the event of a 230V mains power failure, the device switches to battery operation instantly and without interruption, ensuring system continuity.

Specification

Device advantages:

- High output voltage stability to protect sensitive electronics.

- DIN rail (TS-35) mounting, which significantly facilitates installation in standard electrical switchboards.

- Advanced battery charging system with current control to prevent damage.

- Cold start function allowing the power supply to be started directly from the battery without AC mains.

- Intelligent diagnostic system monitoring mains status, battery voltage, and circuit continuity.

- Compact housing taking up only 6 units (U) on the mounting rail.

- A series of protections against short circuits, overloads, overvoltages, and deep battery discharge.

- Dedicated OC technical outputs allowing for remote monitoring of the power status.

One of the most important advantages of this model is its full compliance with rigorous safety standards. The power supply meets the requirements of EN50131-6:2017 in Grade 1 and Grade 2, making it suitable for professional low-to-medium risk alarm systems. Furthermore, it complies with the EN60839-11-2 standard for access control systems. The device is characterized by very high energy efficiency of 90%, which translates into low heat dissipation and longer lifespan of the electronics.

Power supply type

Switch-mode buffer power supply intended for continuous operation in professional security systems.

Input voltage

200V AC ... 240V AC (alternating current) / 50Hz.

Output voltage

13.8V DC (direct current) ensuring stable operation of 12V devices in buffer systems.

Current efficiency

Total output current is 2.5A, which allows powering multiple sensors and devices simultaneously.

Power and efficiency

The rated power of the device is 34.5W with an energy efficiency level of ≤ 90%.

Battery charging

Battery charging current 0.5A; protection against short circuit and reverse polarity connection.

Electronic protection

Short circuit protection (SCP), overload protection (OLP), overvoltage protection (OVP), and surge protection.

Battery protection

Protection against excessive deep discharge (UVP) disconnecting the battery at critically low voltage.

Signaling and control

Optical LED signaling of AC and DC power status and dynamic battery efficiency test function.

Technical outputs

EPS FLT (AC power failure) and APS FLT (battery failure/absence) implemented using Open Collector (OC) technology.

Additional functions

Ability to start without mains power (cold start), monitoring of battery circuit continuity and voltage.

Design and mounting

Plastic housing, DIN rail (standard TS-35) mounting occupying 6 units (U).

Compliance with standards

EN50131-6:2017 (Grade 1, 2) and EN60839-11-2:2015+AC:2015 in environmental class II.

Environmental parameters

Operation in environmental class II, convection cooling, permissible operating temperature in accordance with EN50131-6.

Warranty and logistics

2-year manufacturer warranty; device weight 260g; housing dimensions 106 x 91 x 60 mm.

Dimensions, Weight

Product dimensions: 60 x 106 x 91 mm (Depth x Width x Height)

Package dimensions: 65 x 115 x 100 mm (Depth x Width x Height)

Product weight: 260 g

Weight with package: 316 g
