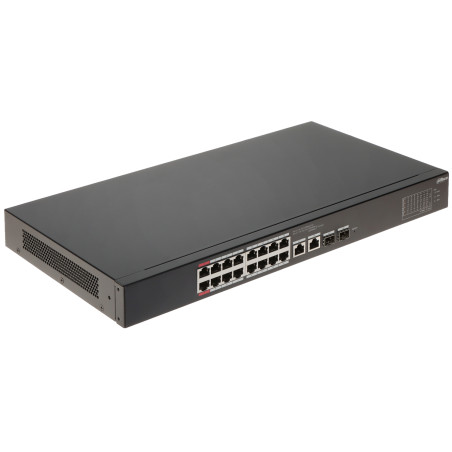

16 Port PoE Switch SFP Cloud Managed 240W Hi-PoE Watchdog VLAN 19 Inch Rack CCTV Network Device DAHUA CS4218-16ET-240
zł1,004.91
Tax included
The professional 16-port PoE switch CS4218-16ET-240 is an advanced network solution dedicated to IP monitoring systems and extensive office networks. The device offers 16 LAN ports at 10/100 Mbps speed, of which 14 support the 802.3af/at PoE standard, and the first 2 ports offer ultra-efficient Hi-PoE (802.3bt) with power up to 90W per channel. Thanks to this, the switch is ideal for powering PTZ cameras, POS terminals, or smart lighting systems. The main advantage of the product is its full manageability, both through an intuitive web browser interface and the modern DoLynk Care cloud platform, allowing remote network administration from anywhere in the world.
An additional benefit of the device is the 2 Combo Uplink ports, combining 10/100/1000 Mbps RJ45 sockets with 1000 Mbps SFP ports, which enables flexible integration with fiber-optic backbones and network trunks. The switch has been designed with the highest reliability in mind – it features built-in protection against atmospheric discharges (up to 4kV) and intelligent functions such as PoE Watchdog, which automatically restarts hung end devices by interrupting and restoring power. Support for Extend technology allows for data and power transmission over a distance of up to 250 meters, significantly reducing installation costs in large facilities. The durable 19-inch rack-mount metal chassis ensures easy installation in telecommunication cabinets and effective heat dissipation, translating into equipment longevity.
16 Port PoE Switch SFP Cloud Managed 240W Hi-PoE Watchdog VLAN 19 Inch Rack CCTV Network Device
Model: DAHUA CS4218-16ET-240
EAN: 6931240056707 SKU: 931056700
- 16 PoE ports 10/100 Mbps providing power and data transmission
- 2 Combo Uplink ports (RJ45/SFP) for high-speed backbone connections
- Supports Hi-PoE standard (802.3bt) up to 90W on ports 1 and 2
- Cloud management via DoLynk Care app and web interface
- PoE Watchdog function automatically detecting and resetting hung cameras
- Extend mode enabling transmission up to 250 meters over Cat 5e/6 UTP cable
- VLAN port isolation for increased network security and performance
- High resistance to surges and electrostatic discharges
- Standard 19-inch 1U rack-mount housing
- High PoE power budget of 240W for the entire device
Description
The professional 16-port PoE switch CS4218-16ET-240 is an advanced network solution dedicated to IP monitoring systems and extensive office networks. The device offers 16 LAN ports at 10/100 Mbps speed, of which 14 support the 802.3af/at PoE standard, and the first 2 ports offer ultra-efficient Hi-PoE (802.3bt) with power up to 90W per channel. Thanks to this, the switch is ideal for powering PTZ cameras, POS terminals, or smart lighting systems. The main advantage of the product is its full manageability, both through an intuitive web browser interface and the modern DoLynk Care cloud platform, allowing remote network administration from anywhere in the world.
An additional benefit of the device is the 2 Combo Uplink ports, combining 10/100/1000 Mbps RJ45 sockets with 1000 Mbps SFP ports, which enables flexible integration with fiber-optic backbones and network trunks. The switch has been designed with the highest reliability in mind – it features built-in protection against atmospheric discharges (up to 4kV) and intelligent functions such as PoE Watchdog, which automatically restarts hung end devices by interrupting and restoring power. Support for Extend technology allows for data and power transmission over a distance of up to 250 meters, significantly reducing installation costs in large facilities. The durable 19-inch rack-mount metal chassis ensures easy installation in telecommunication cabinets and effective heat dissipation, translating into equipment longevity.
Specification
Standards and LAN Ports
16 x RJ45 10/100 Base-T; 2 Combo ports (SFP 1000 Base-X / RJ45 10/100/1000 Base-T) as Uplink
Management and Configuration
L2 management via web browser and DoLynk Care cloud system; support for LLDP protocol and Port Based VLAN (up to 32 groups)
PoE Power Parameters
Ports 1-2: Hi-PoE / PoE (802.3bt) up to 90W; Ports 3-16: PoE (802.3af/at) up to 30W; Total power budget: 240W; 8-pin power supply
Switching Performance
MAC address table: 8k; support for 802.3x flow control; automatic MAC address learning
Special Features
PoE Watchdog (automatic device restart), Loop Protection, Extend mode (range up to 250m at 10Mbps)
DoLynk Care Software
An advanced cloud platform enabling comprehensive management of network infrastructure from anywhere. The mobile application and web interface allow for real-time monitoring of port status, checking current power consumption by individual cameras, and receiving push notifications about failures or connection loss. The system offers graphical visualization of network topology, facilitating error diagnostics in large CCTV installations. It is possible to remotely restart PoE ports, change VLAN configuration, and update switch firmware without the need for physical presence at the installation site, which significantly reduces service costs.
Surge Protection
Protection against atmospheric discharges (common/differential mode): 4 kV / 2 kV; ESD protection: 6 kV (contact) / 8 kV (air)
Optical Signaling
LED indicators for parameters: Link, PoE status, Power, System, and PoE budget load indicators (50%, 80%, 100%)
Construction and Housing
Solid metal Desktop / 19-inch Rack (1U) housing; passive/active cooling adapted for continuous operation
Device Power Supply
Built-in AC 100V - 240V power supply, frequency 47 - 63 Hz; Maximum device power consumption: 265W
Operating Conditions
Operating temperature: -10 °C to 55 °C; Air humidity: 10% - 90% non-condensing
Protocols and Compliance
Compliance with IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x
Network Administration
Built-in DHCP client, option to restore factory settings via RESET button, support for system logs
Certification
Full compliance with CE standards and international safety and EMC standards
Manufacturer Warranty
High level of support and reliability confirmed by a 5-year warranty period
Contents
1x PoE Switch CS4218-16ET-240
1x Power cable
1x Mounting bracket kit for 19" RACK cabinet
1x User manual
Dimensions, Weight
Product dimensions: 220 x 440 x 44 mm (D x W x H)
Package dimensions: 340 x 540 x 90 mm (D x W x H)
Product weight: 2290 g
Weight with package: 3188 g
