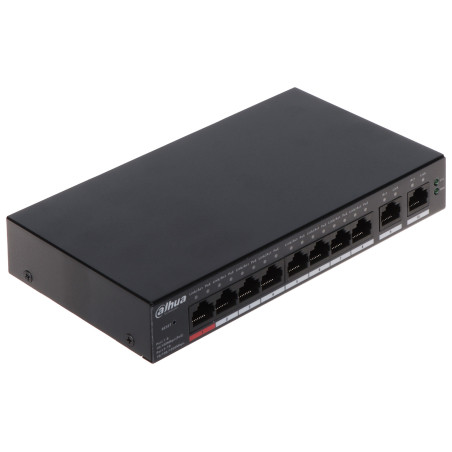

8 Port PoE Switch 10/100 Mbps + 2x Gigabit Uplink Hi-PoE 90W Managed Cloud L2 DAHUA CS4010-8ET-110
zł410.82
Tax included
The DAHUA CS4010-8ET-110 PoE switch is a professional networking solution designed for IP monitoring systems and modern office networks. Equipped with 8 LAN ports 10/100 Mbps supporting Power over Ethernet technology and 2 Gigabit Uplink ports, it ensures smooth data transmission and reliable power for end devices. The main advantage of the device is the support for the Hi-PoE standard on the first port, which allows for delivering up to 90W of power – ideal for PTZ cameras with high power consumption. The remaining seven ports offer up to 30W of power per channel.
The device is distinguished by an intelligent management system via a Web interface and the manufacturer's innovative cloud. Thanks to mobile app support, administrators can monitor network status from anywhere in the world. Another asset is the Extend mode, which enables data and power transmission over an impressive distance of up to 250 meters using standard Cat 5e/6 Ethernet cable, significantly reducing installation costs in large facilities. The durable metal desktop housing protects electronics from mechanical damage and ensures optimal heat dissipation, which translates into stable operation in a wide temperature range from -10°C to 55°C. The PoE Watchdog system automatically restarts the port if a connected camera is detected as unresponsive, minimizing the need for on-site service visits. By choosing this switch, you invest in the security and continuity of your network infrastructure.
8 Port PoE Switch 10/100 Mbps + 2x Gigabit Uplink Hi-PoE 90W Managed Cloud L2
Model: DAHUA CS4010-8ET-110
EAN: 6931240092040 SKU: 931092042
- 8 PoE ports 10/100 Mbps for powering IP cameras
- 2 Uplink ports 10/100/1000 Mbps for fast connection to recorder
- Hi-PoE 90W support on port number 1 for demanding PTZ devices
- Total PoE power budget of 110W
- L2 management via web browser and DoLynk Care cloud
- Extend mode allowing PoE range up to 250 meters
- PoE Watchdog function – automatic recovery of unresponsive devices
- High surge protection up to 4kV
- Robust, metal desktop casing with wall-mount capability
- 54V DC power adapter included for stable operation under full load
Description
The DAHUA CS4010-8ET-110 PoE switch is a professional networking solution designed for IP monitoring systems and modern office networks. Equipped with 8 LAN ports 10/100 Mbps supporting Power over Ethernet technology and 2 Gigabit Uplink ports, it ensures smooth data transmission and reliable power for end devices. The main advantage of the device is the support for the Hi-PoE standard on the first port, which allows for delivering up to 90W of power – ideal for PTZ cameras with high power consumption. The remaining seven ports offer up to 30W of power per channel.
The device is distinguished by an intelligent management system via a Web interface and the manufacturer's innovative cloud. Thanks to mobile app support, administrators can monitor network status from anywhere in the world. Another asset is the Extend mode, which enables data and power transmission over an impressive distance of up to 250 meters using standard Cat 5e/6 Ethernet cable, significantly reducing installation costs in large facilities. The durable metal desktop housing protects electronics from mechanical damage and ensures optimal heat dissipation, which translates into stable operation in a wide temperature range from -10°C to 55°C. The PoE Watchdog system automatically restarts the port if a connected camera is detected as unresponsive, minimizing the need for on-site service visits. By choosing this switch, you invest in the security and continuity of your network infrastructure.
Specification
Standards and Ports
LAN Ports: 8 x RJ45 10/100 Base-T (1 x Hi-PoE / PoE 802.3bt + 7 x PoE 802.3af/at), Uplink Ports: 2 x RJ45 10/100/1000 Base-T, Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, IEEE 802.3af/at/bt
Transmission Performance
Transmission speed: 10 / 100 Mbps (Ports 1-8), 10 / 100 / 1000 Mbps (Uplink), MAC address table: 8k
PoE Power Supply
Maximum power port 1: 90 W (Hi-PoE), Maximum power ports 2-8: 30 W (PoE), Total power budget: 110 W, Power mode: 8-pin (wires 1-2+, 3-6-, 4-5+, 7-8-)
Layer 2 Features
Management: Yes (Web / Cloud), VLAN: Port Based VLAN (up to 32 groups), Protocols: Spanning Tree STP/RSTP, LLDP, Flow Control: 802.3x
Operating Modes and Range
Extend mode: On - range up to 250m at 10 Mbps, Cabling: UTP cat. 5e, 6
Reliability
PoE Watchdog: Yes, Loop Protection: Yes, DHCP: DHCP Client
Electrical Protection
Surge protection: 4 kV (common) / 2 kV (differential), ESD protection: 6 kV (contact) / 8 kV (air)
LED Indicators
Indicator LEDs: Power, System, PoE, Link/Act
Construction
Casing type: Desktop, Metal, Reset button: Yes, Mounting: Wall-mount capability
Environmental Conditions
Operating temperature: -10 °C ... 55 °C, Humidity: 10% - 90% (non-condensing)
Main Power Supply
External power supply: 54 V DC / 2.22 A, Maximum power consumption: 110 W
Certification
Certifications: CE
Warranty
Warranty period: 3 years
DoLynk Care Software
The DoLynk Care software management system is a modern cloud platform designed for installers and network administrators. The software enables comprehensive real-time monitoring of device technical status. With DoLynk Care, the user has access to network topology visualization, allowing for instant identification of fault locations. The platform offers features for remote configuration, restarting PoE ports without the need for physical presence at the switch, and receiving push notifications about critical events, such as a network loop or camera disconnection. It is a high-security tool ensuring stable cooperation between surveillance systems and IT infrastructure.
Contents
1x PoE Switch CS4010-8ET-110
1x Power adapter 54V/2.22A
1x Power cable
1x User manual
Dimensions, Weight
Product dimensions: 106 x 190 x 30 mm (D x W x H)
Packaging dimensions: 245 x 260 x 85 mm (D x W x H)
Product weight: 490 g
Shipping weight: 1250 g
