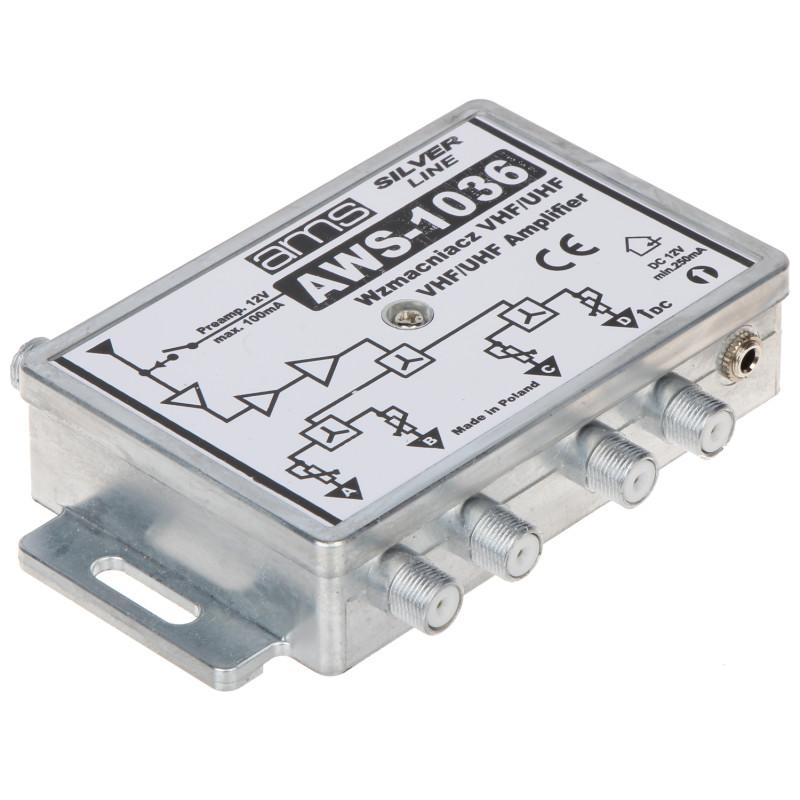

Professional TV DVB-T2 Subscriber Amplifier 4-output 27dB Gain Control Shielded Active Splitter AMS AWS-1036
zł218.20
Tax included
The AWS-1036 subscriber amplifier is a professional device designed for amplifying and precisely distributing the television signal to 4 independent branches of the antenna installation. It is an ideal solution for home TV systems where the signal from a passive antenna or an antenna set connected by a combiner requires amplification before being supplied to multiple TV receivers.
The product features a unique advantage in the form of smooth gain adjustment, which allows the installer to precisely match the signal level throughout the installation, eliminating problems with tuner overloading or a signal that is too weak due to attenuation in coaxial cables. The design based on a metal housing provides excellent shielding, which is crucial for protection against external interference, including interferences coming from LTE mobile networks.
Another significant advantage is power supply flexibility. The device can be powered traditionally using the included power supply plugged directly into the DC jack or remotely via a coaxial cable connected to the amplifier output (using a power injector). This guarantees ease of installation even in places where access to a 230V mains socket is difficult, e.g., in attics.
The amplifier has been designed with modern broadcasting standards in mind, ensuring full compatibility with DVB-T2 terrestrial television in HD and 4K quality. As a Polish product, it is characterized by high manufacturing quality and longevity, which is confirmed by the manufacturer's 2-year warranty. Robust F-type connectors guarantee a secure contact and minimal connection losses, which translates into a stable and clear image without artifacts.
Professional TV DVB-T2 Subscriber Amplifier 4-output 27dB Gain Control Shielded Active Splitter
Model: AMS AWS-1036
EAN: 6931240092385 SKU: 931092380
- Amplification and distribution of TV signal to 4 home installations
- Smooth gain adjustment in the range of 0 ... 14 dB
- Full compatibility with DVB-T2 standard and 4K quality
- Excellent shielding thanks to a metal housing
- Two power supply methods: direct (DC) or remote (via output)
- Polish production ensuring high reliability
- Stable operation in a wide temperature range from -25°C to +55°C
- F-type connectors ensuring a professional connection
Description
The AWS-1036 subscriber amplifier is a professional device designed for amplifying and precisely distributing the television signal to 4 independent branches of the antenna installation. It is an ideal solution for home TV systems where the signal from a passive antenna or an antenna set connected by a combiner requires amplification before being supplied to multiple TV receivers.
The product features a unique advantage in the form of smooth gain adjustment, which allows the installer to precisely match the signal level throughout the installation, eliminating problems with tuner overloading or a signal that is too weak due to attenuation in coaxial cables. The design based on a metal housing provides excellent shielding, which is crucial for protection against external interference, including interferences coming from LTE mobile networks.
Another significant advantage is power supply flexibility. The device can be powered traditionally using the included power supply plugged directly into the DC jack or remotely via a coaxial cable connected to the amplifier output (using a power injector). This guarantees ease of installation even in places where access to a 230V mains socket is difficult, e.g., in attics.
The amplifier has been designed with modern broadcasting standards in mind, ensuring full compatibility with DVB-T2 terrestrial television in HD and 4K quality. As a Polish product, it is characterized by high manufacturing quality and longevity, which is confirmed by the manufacturer's 2-year warranty. Robust F-type connectors guarantee a secure contact and minimal connection losses, which translates into a stable and clear image without artifacts.
Specification
Frequency range
87 MHz ... 790 MHz - Band covering FM, VHF, and UHF ranges, optimized for terrestrial television.
Number of inputs/outputs
1 antenna input / 4 subscriber outputs - allows for direct powering of four TV receivers without additional losses.
Input/output impedance
75 Ω - standard value for television systems and coaxial cables.
Connector type
F - professional threaded sockets ensuring the lowest attenuation and resistance to cable pulling.
Gain
20 dB / 27 dB ± 2 dB. Decibel (dB) is a logarithmic measure of power ratio, defining signal gain by the device.
Gain control
0 dB ... 14 dB (+/- 1dB) - allows for attenuating a signal that is too strong to avoid interference in the tuner.
Noise figure
≤ 5 dB ± 1 dB - low internal noise level guarantees high signal quality even at high gain.
Maximum output level
102 dBµV. dBµV is a voltage level unit referenced to 1 microvolt, defining the maximum output power.
Intermodulation IMA3 60dB
96 dBµV - parameter defining signal clarity while simultaneously amplifying multiple channels.
Intermodulation IMA2 60dB
83 dBµV - the device's ability to reduce unwanted frequency mixing products.
Return loss
10 dB - parameter defining how much of the signal is reflected at the connections (the higher the value, the better).
Operating temperature
-25 °C ... 55 °C - the device can be safely mounted in unheated rooms such as attics.
Power supply parameters
12 V DC / 250 mA. The device requires a stable DC voltage for proper operation of transistor amplifiers.
Manufacturer / Brand / Warranty
AMS / Polish Product / 2 years warranty protection.
Contents
1x AWS-1036 amplifier
1x 12V mains power adapter
1x User manual
Dimensions, Weight
Product dimensions: 27 x 124 x 88 mm (Depth x Width x Height)
Packaging dimensions: 75 x 140 x 115 mm (Depth x Width x Height)
Product weight: 300 g
Weight with packaging: 462 g
