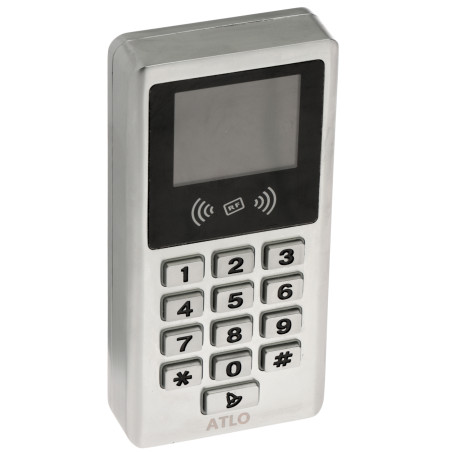

Autonomous WiFi RFID 125kHz PIN Access Control Keypad Tuya Smart Metallic Silver 10000 Users

Model: ATLO ATLO-KRMW-501

EAN: 6931240047514 SKU: 931047515

• Autonomous operation without the need for a central hub
• Support for up to 10,000 users (card/PIN)
• Integrated Wi-Fi module and Tuya Smart app support
• Durable, metallic housing in silver color
• Wide supply voltage range 12V - 24V DC
• Backlit keypad for easy operation in the dark
• Support for 125kHz Unique EM proximity cards
• Wiegand 26 / 58 bit interface
• Can operate in extreme temperatures from -40°C to 60°C
• Built-in doorbell button

Description

The ATLO-KRMW-501 is a modern and highly functional autonomous access controller that combines traditional identification methods with the latest IoT technology. The device has been designed for demanding users who seek security, convenience, and full control over access to their premises. Thanks to the built-in Wi-Fi module and integration with the Tuya Smart ecosystem, access management becomes easier than ever before.

Specification

Unique EM 125kHz - a standard of proximity technology allowing data to be read and written via radio waves at a frequency of 125 kHz.

One of the key advantages of the device is its huge capacity, allowing it to store up to 10,000 users. Users can gain access via 125kHz Unique EM proximity cards, a unique PIN code, or directly from the smartphone app. The solid, metallic silver housing not only looks elegant but also ensures resistance to harsh weather conditions and tampering, which is confirmed by the wide operating temperature range from -40°C to as high as 60°C.

Using the Tuya Smart app provides the administrator with a number of advanced capabilities. From the phone, one can remotely open the door, manage the user database, set time schedules, or generate one-time codes for guests. A full event history with the exact date and time is available at your fingertips, which significantly increases the security level. The device will be perfect for offices, warehouses, housing communities, and private homes, offering stable performance and seamless integration with other smart home elements. The lack of a need for additional hubs makes the installation quick and economical.

Autonomous (Standalone) - the device does not require an external controller for proper operation.

RFID Standard

Support for up to 10,000 indexed users with the option to assign cards or PIN codes.

Operating Mode

RFID proximity card, PIN code, Tuya Smart mobile app.

System Capacity

Voltage: 12V ... 24V DC; Power consumption: 60 mA (standby), 100 mA (active).

Identification Methods

Wiegand 26 - Wiegand 58 bit - universal communication standard in access control systems.

Power and electrical parameters

Free application available for Android and iOS systems (App Store / Google Play). The Tuya Smart software allows for full control over access to the facility from anywhere in the world. It enables remote door unlocking, adding and removing users, and assigning time-based permissions, which is crucial in rental systems or offices. The user receives real-time event notifications, and the administrator has access to the full history of entries (ID, date, time). The software integrates with other smart home devices, creating complex automation scenarios.

Communication Interface

1x NO/NC relay output; support for electric strikes, electromagnetic locks, and reverse bolts.

Tuya Smart Software

Doorbell button, blue keypad backlight, compatibility with door opening sensor and exit button.

Relay Outputs

Remote schedule management, granting access within specific time frames, programming one-time guest codes.

Additional Features

Metallic housing, silver color; Operating temperature: -40 °C ... 60 °C; Permissible humidity: 0 % ... 95 %.

User Management

None (according to the manufacturer's technical specification).

Housing and Resistance

Metallic construction with increased mechanical strength.

Tamper Output

Polish, English, Chinese (application interface and manual).

Vandal Resistance

2 years (24 months) provided by authorized service.

Supported Languages

1x ATLO-KRMW-501 Access Controller

1x Set of mounting screws

1x User manual in Polish

Warranty

Dimensions, Weight

Product dimensions: 26 x 62 x 131 mm (Depth x Width x Height)

Package dimensions: 65 x 125 x 195 mm (Depth x Width x Height)

Product weight: 420 g

Weight with package: 522 g
