- New

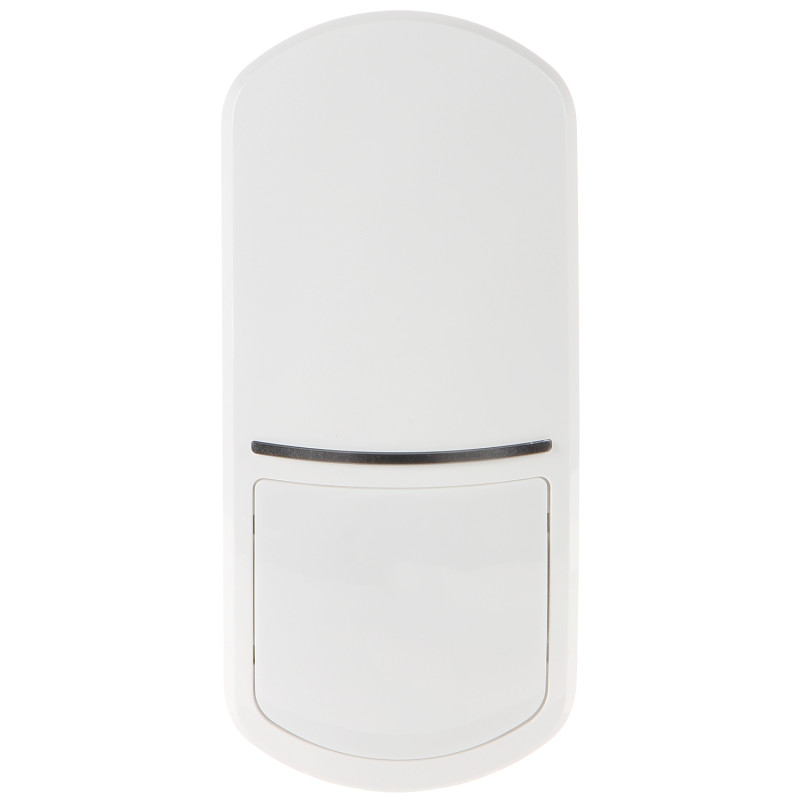

Wireless PIR motion detector pet immune up to 20kg alarm system 2000m range SATEL APD-200-PET
zł317.20
Tax included
The APD-200-PET wireless motion detector is an advanced device designed to work within professional ABAX and ABAX 2 alarm systems. Its main task is to effectively detect intruders moving inside a protected area. Thanks to the use of a modern quad pyro element and a high-quality infrared path, the device is characterized by exceptional precision and minimization of false alarm risks.
A key advantage of this model is the PET function, which makes the detector immune to the movement of small domestic animals weighing up to 20 kilograms. It is an ideal solution for dog or cat owners who want to secure their home without sacrificing protection while their pets are inside. The device works perfectly in residential buildings, as well as in commercial facilities such as kiosks, boutiques, garages, or workshops, where wiring installation would be troublesome.
The APD-200-PET detector offers an impressive radio communication range, reaching up to 2000 meters in an open area when working with the ACU-220 controller. The use of encrypted transmission technology ensures a high level of data security. Additionally, the device features remote configuration and firmware update capabilities, which significantly facilitates work for installers and system maintainers. A robust housing with tamper protection protects against unauthorized opening or detachment from the surface.
The high energy efficiency of the detector translates into a long operating time on one CR123A lithium battery, which is approximately 2 years. The built-in LED allows for easy range and detection testing. The product meets the stringent requirements of the EN 50131 standard for Grade 2, which confirms its high quality and reliability in daily operation. By choosing this model, you gain the certainty of uncompromising protection while maintaining interior aesthetics due to the lack of unnecessary wires.
Wireless PIR motion detector pet immune up to 20kg alarm system 2000m range
Model: SATEL APD-200-PET
EAN: 6931240048993 SKU: 931048991
- Compatible with ABAX and ABAX 2 wireless systems
- Pet immunity for domestic animals weighing up to 20 kg (PET function)
- Quad pyro element providing high detection sensitivity
- Radio communication range up to 2000 m in open area
- Compliance with Security Grade 2 standard according to EN 50131-2-2
- Remote configuration and firmware update of the device
- Long battery life - up to approx. 2 years
- Tamper protection against enclosure opening and detachment from the wall
- Universal adjustable mounting bracket included
- Built-in LED for alarm signaling in test mode
Description
The APD-200-PET wireless motion detector is an advanced device designed to work within professional ABAX and ABAX 2 alarm systems. Its main task is to effectively detect intruders moving inside a protected area. Thanks to the use of a modern quad pyro element and a high-quality infrared path, the device is characterized by exceptional precision and minimization of false alarm risks.
A key advantage of this model is the PET function, which makes the detector immune to the movement of small domestic animals weighing up to 20 kilograms. It is an ideal solution for dog or cat owners who want to secure their home without sacrificing protection while their pets are inside. The device works perfectly in residential buildings, as well as in commercial facilities such as kiosks, boutiques, garages, or workshops, where wiring installation would be troublesome.
The APD-200-PET detector offers an impressive radio communication range, reaching up to 2000 meters in an open area when working with the ACU-220 controller. The use of encrypted transmission technology ensures a high level of data security. Additionally, the device features remote configuration and firmware update capabilities, which significantly facilitates work for installers and system maintainers. A robust housing with tamper protection protects against unauthorized opening or detachment from the surface.
The high energy efficiency of the detector translates into a long operating time on one CR123A lithium battery, which is approximately 2 years. The built-in LED allows for easy range and detection testing. The product meets the stringent requirements of the EN 50131 standard for Grade 2, which confirms its high quality and reliability in daily operation. By choosing this model, you gain the certainty of uncompromising protection while maintaining interior aesthetics due to the lack of unnecessary wires.
Specification
Wireless system
Compatibility with two-way ABAX and ABAX 2 systems (frequency 868 MHz ... 868.6 MHz)
Radio range
Up to 2000 m in open area with ACU-220 controller; up to 1600 m with ACU-280; up to 500 m in classic ABAX system
Motion detection
Quad pyro element (quad) providing high sensitivity and stability of operation; high-quality infrared path
Detection area
Wide viewing angle of 83 degrees with a range of 16 x 14 meters
Pet immunity (PET)
Digital signal processing allowing for ignoring the movement of animals up to 20 kg
Security
Compliance with Security Grade 2 standard according to EN 50131-2-2; full tamper protection (opening, detachment); Grade 2 certification
Power supply and battery
CR123A 3 V lithium battery included; lifetime up to approx. 2 years; low battery level control function
Mounting
Recommended mounting height 2.4 m; universal adjustable bracket for wall or ceiling mounting included
Environmental conditions
Environmental class II according to EN 50130-5; operating temperature from -10°C to +55°C
Software and configuration
Remote configuration of parameters and firmware update via radio. System management is carried out through DLOADX software, which enables full diagnostics of wireless devices. The program allows monitoring signal strength, battery status, and changing detector sensitivity without the need for physical access to the device. The INTEGRA CONTROL mobile application allows the user to view the status of detectors and receive push notifications about detected motion or tampering attempts directly to their smartphone, providing full control over facility security from anywhere in the world.
Signaling
Built-in LED for signaling violations in test mode; remote LED switching on/off
Compliance with standards
EN 50131-1, EN 50130-4, EN 50130-5, CE certification
Optical system
High-quality Fresnel lens with precise infrared path and quad pyro element
Technology
Advanced digital temperature compensation adapting sensitivity to ambient conditions
Contents
1x APD-200-PET Detector
1x CR123A Battery
1x Mounting bracket
1x Set of dowels and screws
1x User manual
Dimensions, Weight
Product dimensions: 42 x 62 x 137 mm (D x W x H)
Packaging dimensions: 50 x 65 x 180 mm (D x W x H)
Product weight: 120 g
Weight with packaging: 154 g
