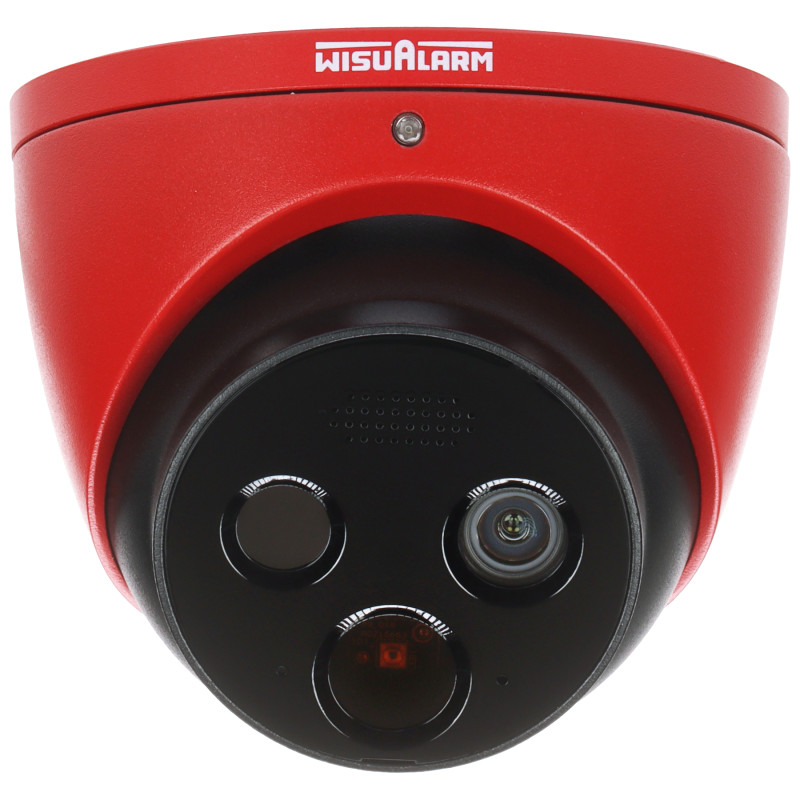

Hybrid IP Thermal Optical Camera Fire Detection 4MP IR15m IP66 Audio Alarm

Model: WISUALARM HY-FT431LDP-TD1F4-MB

EAN: 6931240042816 SKU: 931042813

• Hybrid imaging system: combination of VOx thermal imaging and 4MP CMOS optical image
• Advanced flame detection: 10x10cm fire detection from a distance of 10 meters
• Early warning: analysis of sudden temperature rise before fire appears
• Intercom function: built-in speaker and microphone for two-way audio communication
• Integrated alarm: alarm inputs and outputs for integration with external systems
• High resistance: IP66 metal housing adapted to harsh weather conditions
• Support for PV and EV installations: dedicated to protecting photovoltaic farms and charging stations
• PoE power supply: simple installation using a single RJ45 network cable

Description

The WisuAlarm HY-FT431LDP-TD1F4-MB hybrid IP camera is an advanced security solution combining the world of visible imaging and thermal imaging. The device is designed for early detection of fire hazards, making it a key component of modern property and life protection systems. Due to the use of a dual sensor, the user receives a complete situational overview, combining the high detail of a 4 Mpx CMOS sensor with the analytical capabilities of a VOx thermal sensor.

Specification

The robust, IP66-rated metal dome housing guarantees failure-free operation both indoors and in demanding outdoor conditions. The camera has an integrated intercom (built-in speaker and microphone), which enables two-way communication and the emission of warning messages after an alarm is detected. Integration with the DMSS mobile application allows for remote viewing and receiving notifications in real-time, which significantly increases the level of control over the protected facility. Due to support for PoE (Power over Ethernet) standards and 12V DC power supply, the installation process is flexible and simplified, eliminating the need to run additional power cabling.

The main advantage of the device is the ability to precisely detect flames with dimensions of 10x10 cm from a distance of up to 10 meters, which allows for immediate reaction in the initial phase of a fire. The sudden temperature rise detection function enables threat identification even before visible fire appears. The camera is perfect for specific applications, such as protecting photovoltaic farms, energy storage facilities, electric vehicle (EV) charging stations, and industrial halls where monitoring inverters or switchboards is critical for maintaining safety and process continuity.

Type and Purpose

Hybrid IP thermal camera with fire and flame detection function

Thermal Sensor

Uncooled VOx microbolometer; Sensor resolution: 120 x 90 px; Pixel size: 17 µm

Thermal Imaging Optical Parameters

Lens: 1.2 mm, F1.1; Field of view: 90°; Thermal sensitivity (NETD): < 60 mK @ F1.0; Spectral range: 8 µm ... 14 µm; Color palettes: 12

Temperature Measurement

Range: -10 °C ... 200 °C; Modes: Spot, Line, Area; Accuracy: MAX (±5°C, ±5%); Hot and cold spot tracking

Vision Sensor

1/2.7 " Progressive Scan CMOS; Resolution: 2688 x 1520 (4 Mpx), 1920 x 1080 (1080p); Sensitivity: 0.0052 Lux (color) / 0.0028 Lux (B/W)

Lens and Vision Lighting

Focal length: 4.0 mm; Field of view: 85°; IR illuminator range: 15 m; Day/Night: Automatic ICR filter

Standards and Compression

Standard: IP; Compression methods: Smart H.265+ / H.265 / Smart H.264+ / H.264 / MJPEG

Interfaces and Audio

Network interface: 10/100 Base-T (RJ-45); Audio: Built-in microphone and speaker, Two-way audio (Intercom), Audible alarm signaling; Alarm inputs/outputs: 1 / 1

Intelligent Image Analysis (AI)

Flame detection: 10 x 10 cm @ 10 m; Flame tracking and positioning; Fire detection; Sudden temperature rise detection

Advanced Image Features

Dual Image (overlay image); D-WDR (Wide Dynamic Range); 2D-DNR / 3D-DNR (Noise reduction); BLC/HLC; AGC; WB (White balance); Corridor mode; Privacy zones (max. 4); NAS support

Network and Remote Access

ONVIF: Yes; Max. 10 users online; Default IP address: 192.168.1.108; Ports: 80, 37777; RTSP support

DMSS Software

The DMSS (Dahua Mobile Surveillance System) application is a professional mobile tool enabling full management of the security system. The application allows for smooth live viewing in high resolution, remote playback of recording archives, and receiving instant push notifications upon fire or flame detection. The user can use the two-way talk function, remotely activate alarm outputs, and manage multiple devices within a single P2P cloud platform. The interface is optimized for Android and iOS systems, offering intuitive operation and a stable connection to the camera from anywhere in the world.

Physical Parameters

Housing: Dome, Metal; Ingress protection: IP66; Operating temperature: -10 °C ... 55 °C; Weight: 0.49 kg; Dimensions: Ø 110 x 90 mm; Color: Red + Black

Power Supply

PoE (802.3af) or 12 V DC / 250 mA; Power consumption: ≤ 3 W

Warranty and Language

Warranty: 3 years; Supported languages: English

Dimensions, Weight

Product dimensions: 110 x 110 x 90 mm (Depth x Width x Height)

Packaging dimensions: 150 x 150 x 150 mm (Depth x Width x Height)

Product weight: 490 g

Weight with packaging: 750 g
