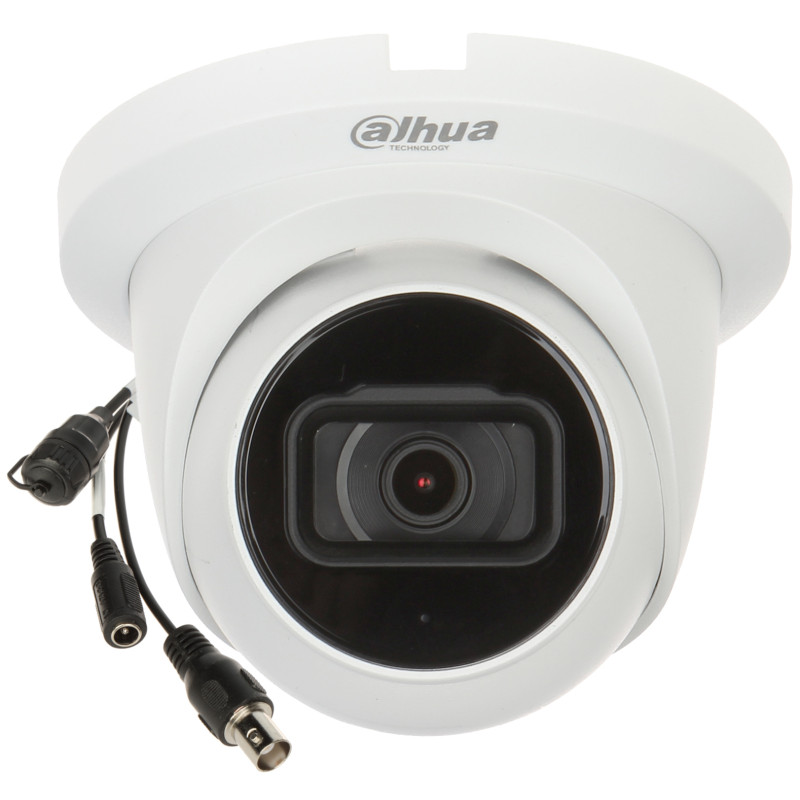

5MP 4-in-1 Dome Camera 60m IR WDR 120dB Audio IP67

Model: DAHUA HAC-HDW2501TMQ-A-028

EAN: 6931240096048 SKU: 931096043

• 5MP resolution (2880 x 1620) - high image detail
• 4-in-1 technology - support for HD-CVI, HD-TVI, AHD, and CVBS standards
• Very wide viewing angle - 111° thanks to 2.8 mm lens
• Powerful night range - IR illuminator up to 60 meters with Smart IR function
• Built-in microphone - audio recording and transmission over coaxial cable (CVI)
• True WDR 120dB - excellent visibility in challenging lighting conditions
• IP67 ingress protection - full resistance to weather conditions and dust
• Durable housing - made from a combination of metal and high-quality plastic
• Advanced noise reduction - 2D-DNR and 3D-DNR systems
• Long manufacturer warranty - 3 years of security

Description

The Dahua HAC-HDW2501TMQ-A-0280B-S2 camera is a modern and versatile solution for video surveillance systems, combining high 5-megapixel resolution with the reliability of analog transmission. The device operates on 4-in-1 technology, ensuring full compatibility with HD-CVI, HD-TVI, AHD standards, and traditional CVBS (PAL) signals. Thanks to such broad integration, the camera is perfect for upgrading older systems, offering 4K image quality without the need to replace existing coaxial cabling.

Specification

The heart of the camera is an advanced 1/2.7" Progressive Scan CMOS sensor, which generates an extremely detailed image with a resolution of 2880 x 1620 pixels. The 2.8 mm fixed-focus lens provides a very wide viewing angle (up to 111 degrees), making it an ideal choice for monitoring offices, shops, or private properties. A key advantage is the powerful infrared illuminator with a range of up to 60 meters, which automatically adjusts its power (Smart IR), ensuring a clear image even in complete darkness.

The safety and durability of the device are confirmed by the IP67 ingress protection rating, meaning the camera is completely resistant to dust and strong water jets, enabling trouble-free outdoor operation in extreme temperatures from -40°C to 60°C. Additionally, this model features a high-quality built-in microphone. In HD-CVI technology, audio is transmitted directly via the coaxial cable along with the video signal, which drastically reduces installation costs and simplifies mounting. The WDR (120dB) function allows the camera to perform excellently in high-contrast lighting conditions, extracting details from both very bright and shaded parts of the scene.

Standard

HD-CVI, HD-TVI, AHD, CVBS

Sensor

1/2.7" Progressive Scan CMOS

Matrix size

5 MP

Resolution

2880 x 1620 (5 MP - 16:9 format), 2560 x 1440 (3.7 MP), 1920 x 1080 (1080p), 960 x 576 (960H)

IR illuminator range

60 m (automatic Smart IR power adjustment)

Lens

2.8 mm

Viewing angle

111° (horizontal), 108° (manufacturer's HD-CVI tests)

Audio

Built-in microphone, audio support over coaxial cable (only in HD-CVI mode)

Selected image functions

WDR - 120 dB (Wide Dynamic Range), 2D-DNR / 3D-DNR (Noise reduction), BLC/HLC (Light compensation), ICR (Mechanical infrared filter), AGC (Automatic Gain Control), WB (White balance), Mirror, Sharpness, Privacy zones

Software (OSD Menu)

The camera is equipped with an advanced OSD (On-Screen Display) menu, which is fully accessible and remotely configurable via a compatible Dahua recorder using a coaxial cable (Coaxial Control function). The software interface allows for precise calibration of image parameters, including adjustment of the wide dynamic range WDR (120dB), 2D/3D-DNR noise reduction systems, and privacy zone configuration. The user has the option to remotely change the output signal standard (CVI/TVI/AHD/CVBS) and adjust exposure, white balance, and day/night mode parameters, eliminating the need for manual setup of the camera at heights.

Power supply

12 V DC / 490 mA (Power consumption ≤ 5.9 W)

Housing and resistance

Dome type, Material: Metal + Plastic, Color: White, IP67 protection rating

Operating temperature

-40°C ... 60°C

Dimensions, Weight

Product dimensions: 122 x 122 x 99 mm (D x W x H)

Package dimensions: 135 x 150 x 135 mm (D x W x H)

Product weight: 420 g

Weight with packaging: 600 g
