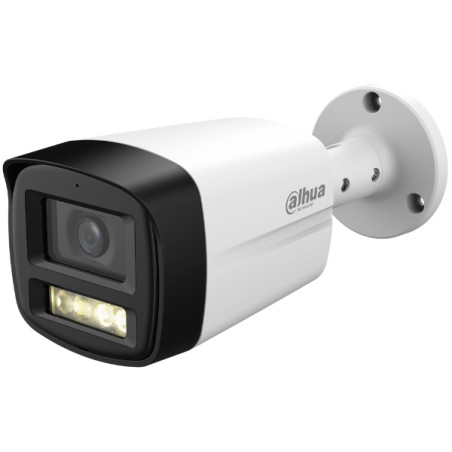

4K 8MP Smart Dual Light Hybrid Camera IR LED 40m External Microphone IP67 4-in-1 DIP Switch Wide Angle DAHUA HAC-HFW1801TLM-IL-A
zł448.95
Tax included
The modern HAC-HFW1801TLM-IL-A-0280B-S3-DIP hybrid camera is an advanced video surveillance solution that combines unprecedented 4K Ultra HD image quality with innovative Smart Dual Light technology. This device is designed for users seeking uncompromising precision in object detection and identification both day and night.
A key advantage of this model is the intelligent illumination system, which uses invisible infrared (up to 40 meters) in standard night mode and automatically switches to strong white LED light upon motion detection. Thanks to this, the camera not only deters a potential intruder but, above all, provides a color image full of detail at critical moments of an event. The device features a high-sensitivity built-in microphone, which allows for recording audio tracks transmitted directly via coaxial cable (Audio-over-Coax technology for the HD-CVI standard), significantly reducing installation costs by eliminating the need for additional audio wiring.
The robust metal-plastic housing with an IP67 ingress protection rating ensures reliable operation in the toughest weather conditions, such as heavy rain, snow, or extreme temperatures from -40°C to 60°C. The camera supports four transmission standards: AHD, HD-CVI, HD-TVI, and analog CVBS, with switching performed via convenient DIP switches, making it an extremely versatile tool for upgrading older surveillance systems. Additional image enhancement systems, such as 3D NR digital noise reduction and the Super Adapt function, ensure every frame is clear and free of interference, regardless of the lighting conditions in the monitored area. The product's advantages mainly include high 8MP resolution, intelligent hybrid illumination, and simple Plug&Play installation.
4K 8MP Smart Dual Light Hybrid Camera IR LED 40m External Microphone IP67 4-in-1 DIP Switch Wide Angle
Model: DAHUA HAC-HFW1801TLM-IL-A-0280B-S3-DIP
EAN: 6931240080160 SKU: 931080166
- 4K Ultra HD resolution (8 megapixels) provides crystal clear image quality
- Smart Dual Light technology - intelligent switching between IR and LED
- Infrared and white light illuminator range up to 40 meters
- Built-in microphone supporting audio over coaxial cable (HD-CVI only)
- Wide 106-degree viewing angle thanks to 2.8 mm lens
- Super Adapt function - automatic real-time image optimization
- Multi-system: AHD, HD-CVI, HD-TVI, CVBS with a convenient DIP switch
- IP67 ingress protection rating - full resistance to weather conditions
- Advanced image features: D-WDR, 3D NR, BLC, HLC, AGC
- Robust housing made of a combination of metal and high-quality plastic
Description
The modern HAC-HFW1801TLM-IL-A-0280B-S3-DIP hybrid camera is an advanced video surveillance solution that combines unprecedented 4K Ultra HD image quality with innovative Smart Dual Light technology. This device is designed for users seeking uncompromising precision in object detection and identification both day and night.
A key advantage of this model is the intelligent illumination system, which uses invisible infrared (up to 40 meters) in standard night mode and automatically switches to strong white LED light upon motion detection. Thanks to this, the camera not only deters a potential intruder but, above all, provides a color image full of detail at critical moments of an event. The device features a high-sensitivity built-in microphone, which allows for recording audio tracks transmitted directly via coaxial cable (Audio-over-Coax technology for the HD-CVI standard), significantly reducing installation costs by eliminating the need for additional audio wiring.
The robust metal-plastic housing with an IP67 ingress protection rating ensures reliable operation in the toughest weather conditions, such as heavy rain, snow, or extreme temperatures from -40°C to 60°C. The camera supports four transmission standards: AHD, HD-CVI, HD-TVI, and analog CVBS, with switching performed via convenient DIP switches, making it an extremely versatile tool for upgrading older surveillance systems. Additional image enhancement systems, such as 3D NR digital noise reduction and the Super Adapt function, ensure every frame is clear and free of interference, regardless of the lighting conditions in the monitored area. The product's advantages mainly include high 8MP resolution, intelligent hybrid illumination, and simple Plug&Play installation.
Specification
Signal Standard
AHD, HD-CVI, HD-TVI, CVBS (analog)
Sensor and Matrix
CMOS sensor, Sensor size: 8 MP (Megapixels)
Resolution
3840 x 2160 - 8 MP 4K UHD @ 15 fps, 960 x 576 - 960H @ 25 fps (PAL)
Lens and Viewing Angle
Focal length: 2.8 mm, Viewing angle: 106 °
Night Illuminator
IR range: 40 m, LED range (white light): 40 m, Power regulation: Automatic
Video Output
AHD / HD-CVI / HD-TVI / CVBS, 1 Vpp / 75 Ω, Adjustable via DIP switches on the cable
Audio
Built-in microphone, Audio support via coaxial cable (feature available only in HD-CVI standard)
Software and Interface
The device uses an advanced set of system instructions with a Super Adapt algorithm, which enables automatic and instantaneous adjustment of image parameters (brightness, contrast, saturation) to dynamically changing outdoor lighting conditions. Intelligent software controls the Smart Dual Light system, deciding on switching between IR mode and white light based on object detection in the monitored area. The OSD (On-Screen Display) menu is available via coaxial cable (UTC), offering full control over functions such as 3D-NR, D-WDR, BLC/HLC, as well as privacy zones and mirroring. The system supports Audio-over-Coax technology, encoding sound within the video signal without extra cables.
Image Enhancement Features
Smart Dual Light (automatic IR/LED switching), Smart Light+ (power regulation), Smart Area Lighting (zone brightness optimization), Super Adapt, D-WDR (wide dynamic range), 3D NR (noise reduction), BLC/HLC (backlight and strong light compensation), Day/Night mode, ICR (mechanical infrared filter), AGC, Mirror (mirror image), White balance, Sharpness
Power Supply and Consumption
12 V DC / 600 mA, Power consumption: ≤ 7.2 W
Construction and Color
Type: Bullet, Material: Metal + Plastic, Color: White + Black
Environmental Conditions
Ingress protection: IP67, Operating temperature: -40 °C ... 60 °C
Physical Parameters
Weight: 0.32 kg, Dimensions: 198.4 x 80.2 x 76.2 mm
Warranty
3 years
Content
1x Camera
1x Set of wall plugs and mounting screws
1x Mounting template
1x User manual
Dimensions, Weight
Product dimensions: 198 x 80 x 76 mm (D x W x H)
Package dimensions: 225 x 110 x 105 mm (D x W x H)
Product weight: 320 g
Weight with packaging: 488 g
