- New

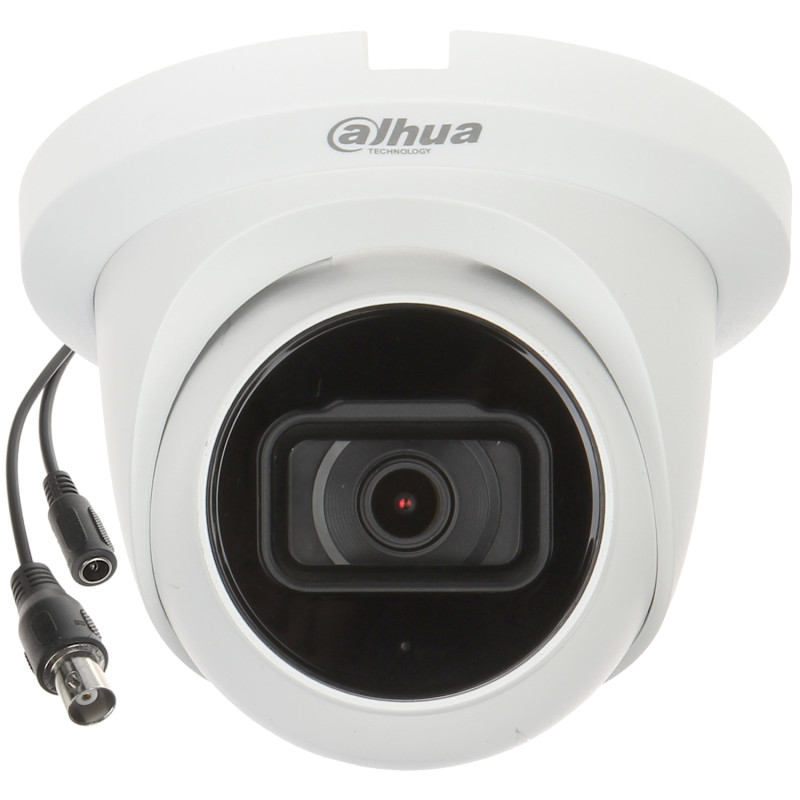

4in1 Analog Camera 1080p IP67 IR 60m WDR 130dB Microphone DAHUA HAC-HDW1231TMQ-A-028
zł487.08
Tax included
We present the advanced Dahua HAC-HDW1231TMQ-A-0280B dome camera, an excellent solution for modern video surveillance systems working in 4-in-1 technology. This device is characterized by exceptional versatility, supporting HD-CVI, HD-TVI, AHD standards, and the classic PAL analog system (CVBS). This makes the camera compatible with almost every recorder available on the market, making it an ideal choice for both new installations and modernization of existing systems.
At the heart of the camera is a high-class 1/2.8-inch Progressive Scan CMOS sensor, which generates a crystal-clear image in Full HD 1080p resolution. A key advantage of this model is the use of True WDR technology with 130 dB dynamics. This allows for a clear image in extremely difficult lighting conditions, where there are large differences between overexposed and shaded areas – for example, when mounted opposite glass entrances. Additionally, the built-in infrared illuminator with an impressive range of up to 60 meters ensures full visibility in total darkness, making this camera a powerful tool for 24/7 security.
The camera is equipped with an integrated microphone, allowing for sound recording without the need for additional cabling (in the CVI system, audio is transmitted via the same coaxial cable as the image). The sturdy housing made of a combination of metal and plastic has an IP67 protection rating, which guarantees full resistance to rain, dust, and extreme temperatures from -40 to +60 degrees Celsius. The 2.8 mm wide-angle lens offers a field of view exceeding 100 degrees, which allows for monitoring large areas using fewer camera points. This is savings and efficiency in one device, supported by a 3-year manufacturer's warranty.
4in1 Analog Camera 1080p IP67 IR 60m WDR 130dB Microphone
Model: DAHUA HAC-HDW1231TMQ-A-028
EAN: 6931240044896 SKU: 931044897
- Full HD 1080p resolution (1920x1080)
- 4-in-1 standard: AHD, HD-CVI, HD-TVI, CVBS
- Very high image dynamics WDR 130 dB
- Powerful IR infrared illuminator with a range of up to 60m
- Built-in high-quality microphone
- Wide-angle fixed 2.8 mm lens
- Durable housing with IP67 tightness class
- Mechanical ICR infrared filter for 24/7 operation
- 3D-DNR digital noise reduction
- 12V DC power supply with low power consumption
Description
We present the advanced Dahua HAC-HDW1231TMQ-A-0280B dome camera, an excellent solution for modern video surveillance systems working in 4-in-1 technology. This device is characterized by exceptional versatility, supporting HD-CVI, HD-TVI, AHD standards, and the classic PAL analog system (CVBS). This makes the camera compatible with almost every recorder available on the market, making it an ideal choice for both new installations and modernization of existing systems.
At the heart of the camera is a high-class 1/2.8-inch Progressive Scan CMOS sensor, which generates a crystal-clear image in Full HD 1080p resolution. A key advantage of this model is the use of True WDR technology with 130 dB dynamics. This allows for a clear image in extremely difficult lighting conditions, where there are large differences between overexposed and shaded areas – for example, when mounted opposite glass entrances. Additionally, the built-in infrared illuminator with an impressive range of up to 60 meters ensures full visibility in total darkness, making this camera a powerful tool for 24/7 security.
The camera is equipped with an integrated microphone, allowing for sound recording without the need for additional cabling (in the CVI system, audio is transmitted via the same coaxial cable as the image). The sturdy housing made of a combination of metal and plastic has an IP67 protection rating, which guarantees full resistance to rain, dust, and extreme temperatures from -40 to +60 degrees Celsius. The 2.8 mm wide-angle lens offers a field of view exceeding 100 degrees, which allows for monitoring large areas using fewer camera points. This is savings and efficiency in one device, supported by a 3-year manufacturer's warranty.
Specification
Transmission standards
HD-CVI, HD-TVI, AHD, CVBS (Analog PAL)
Image sensor
1/2.8" Progressive Scan CMOS
Sensor size
2.1 Mpx (Megapixels)
Resolution and formats
1920 x 1080 (1080p), 960 x 576 (960H)
Infrared (IR) illuminator
Range up to 60 meters, automatic power control
Optics and lens
Focal length 2.8 mm, fixed lens
Field of view
107° (according to manufacturer data), 101° (according to laboratory tests)
Video output
1 Vpp / 75 Ω, BNC (switchable standards)
Audio system
Built-in microphone, audio transmission over coaxial cable available in HD-CVI standard
Advanced correction functions (WDR)
WDR - 130 dB - True Wide Dynamic Range
Noise reduction and exposure
3D-DNR (Digital Noise Reduction), BLC/HLC (Backlight/Highlight Compensation), AGC (Automatic Gain Control), Automatic White Balance (WB)
Software and OSD configuration
The camera firmware allows for advanced configuration of image parameters via an intuitive OSD menu, accessible directly from a compatible recorder (Control over Coax function). The user has access to a wide range of settings, including precise adjustment of Day/Night mode, WDR sensitivity (130dB), and 3D-DNR noise reduction management. The menu also allows for the configuration of 8 independent privacy zones, which is crucial in places requiring the protection of personal data of bystanders. Additionally, the interface allows for adjustment of gain (AGC), white balance (WB), mirror function (Mirror), and sharpness. The system allows for easy switching between transmission standards (CVI, TVI, AHD, CVBS) without the need for physical access to the camera.
Privacy management
Support for up to 8 privacy zones (masking image fragments), Mirror mode
Mechanical and environmental parameters
Dome (Eyeball) housing, material: Metal + Plastic, Color: White, Protection rating: IP67, Operating temperature: -40°C ... 60°C
Power supply and energy efficiency
Power supply: 12 V DC / 430 mA, Power consumption: ≤ 5.1 W
Contents
1x Dahua HAC-HDW1231TMQ-A-0280B Camera
1x Set of wall plugs and mounting screws
1x Mounting template
1x User manual
Dimensions, Weight
Product dimensions: 99 x 122 x 122 mm (Depth x Width x Height)
Packaging dimensions: 135 x 140 x 150 mm (Depth x Width x Height)
Product weight: 410 g
Weight with packaging: 614 g
