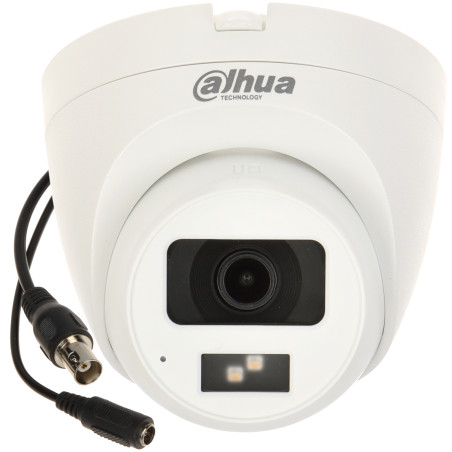

Full HD 1080p Smart Dual Light IR LED Security Camera Microphone IP67 2.8mm Wide Angle DAHUA HAC-HDW1200CLQ-IL-A-0280B-S6
zł313.65
Tax included
The megapixel camera HAC-HDW1200CLQ-IL-A-0280B-S6 is an advanced 4-in-1 surveillance device that successfully supports the most popular analog transmission standards: AHD, HD-CVI, HD-TVI, and PAL. Equipped with a high-class Progressive Scan CMOS sensor, it generates a Full HD 1080p image characterized by exceptional detail and natural color reproduction. One of the device's most important advantages is Smart Dual Illumination technology. It allows for intelligent management of two types of night lighting: infrared (IR) and white light (LED). In smart mode, the white light activates automatically only after an object is detected in the monitored zone, which not only allows for obtaining a color image at night but also acts as a preventive measure, informing an intruder of the presence of a monitoring system.
The camera has been designed to operate in the toughest environmental conditions. A solid IP67-rated housing ensures complete protection against dust ingress and strong water jets, enabling fault-free outdoor installation. A wide viewing angle (approx. 102 degrees) obtained thanks to the 2.8 mm lens allows for effective monitoring of large areas using a minimum number of cameras. The device has a built-in microphone, which transmits audio signal directly over the coaxial cable in HD-CVI systems, eliminating the need for additional cabling. Advanced functions such as D-WDR (digital wide dynamic range) and 3D-DNR (noise reduction) are responsible for image optimization, working together to ensure the clarity of recordings in difficult lighting conditions, such as strong contrasts or insufficient scene illumination.
Full HD 1080p Smart Dual Light IR LED Security Camera Microphone IP67 2.8mm Wide Angle
Model: DAHUA HAC-HDW1200CLQ-IL-A-0280B-S6
EAN: 6931240099810 SKU: 931099810
- Full HD resolution 1920 x 1080 pixels (2 Mpx)
- Smart Dual Illumination technology - intelligent IR and LED lighting up to 20m
- Built-in high-sensitivity microphone with Audio-over-Coax (CVI) support
- 4-in-1 hybrid standard: AHD / HD-CVI / HD-TVI / CVBS
- 2.8 mm wide-angle lens providing a viewing angle of approx. 102°
- IP67 sealed housing resistant to weather conditions
- Image enhancement functions: D-WDR, 3D-DNR, BLC, HLC
- Wide operating temperature range from -40°C to 60°C
- Discreet installation possible thanks to the compact Dome housing
Description
The megapixel camera HAC-HDW1200CLQ-IL-A-0280B-S6 is an advanced 4-in-1 surveillance device that successfully supports the most popular analog transmission standards: AHD, HD-CVI, HD-TVI, and PAL. Equipped with a high-class Progressive Scan CMOS sensor, it generates a Full HD 1080p image characterized by exceptional detail and natural color reproduction. One of the device's most important advantages is Smart Dual Illumination technology. It allows for intelligent management of two types of night lighting: infrared (IR) and white light (LED). In smart mode, the white light activates automatically only after an object is detected in the monitored zone, which not only allows for obtaining a color image at night but also acts as a preventive measure, informing an intruder of the presence of a monitoring system.
The camera has been designed to operate in the toughest environmental conditions. A solid IP67-rated housing ensures complete protection against dust ingress and strong water jets, enabling fault-free outdoor installation. A wide viewing angle (approx. 102 degrees) obtained thanks to the 2.8 mm lens allows for effective monitoring of large areas using a minimum number of cameras. The device has a built-in microphone, which transmits audio signal directly over the coaxial cable in HD-CVI systems, eliminating the need for additional cabling. Advanced functions such as D-WDR (digital wide dynamic range) and 3D-DNR (noise reduction) are responsible for image optimization, working together to ensure the clarity of recordings in difficult lighting conditions, such as strong contrasts or insufficient scene illumination.
Specification
Standard
AHD, HD-CVI, HD-TVI, CVBS (PAL)
Sensor
Progressive Scan CMOS
Sensor size
2.1 Mpx
Resolution
1920 x 1080 px (1080p) @ HD-CVI / HD-TVI / AHD @ 25 fps; 960 x 576 px (960H) @ PAL @ 25 fps
Lens
2.8 mm
Viewing angle
102 ° (manufacturer data), 103 ° (our tests)
IR illuminator range
20 m (with automatic power control)
LED illuminator range
20 m (white light)
Video output
BNC - AHD / HD-CVI / HD-TVI / CVBS, 1 Vpp / 75 Ω
Audio
Built-in microphone, audio support via coaxial cable (only in HD-CVI mode)
Image functions
Smart Dual Illumination (IR or LED night mode with automatic switching after detection), D-WDR (wide dynamic range), 3D-DNR (digital noise reduction), BLC/HLC (backlight/strong light compensation), ICR (mechanical infrared filter), AGC (automatic gain control), Automatic White Balance (AWB), Mirror (mirror image), Sharpness (contour sharpening)
OSD menu
Yes, available from the recorder level
Privacy zones
Maximum 8 zones
Housing and resistance
Dome type (spherical), Plastic, white color, IP67 protection class, No vandalism resistance
Power supply and consumption
12 V DC / 220 mA, Power consumption ≤ 2.6 W
Software and access
The camera works with hybrid recorders supporting Dahua SmartPSS software (PC/Mac) and the DMSS mobile application (Android/iOS). The DMSS application allows the user to remotely view live images, playback recordings, and receive alarm notifications. The application interface allows for full configuration of push notifications and management of image settings and Smart Dual Illumination modes directly from a smartphone, ensuring constant supervision of the facility from any location with internet access.
Physical parameters
Operating temperature: -40 °C ... 60 °C, Weight: 0.21 kg, Dimensions: Ø 97 x 94 mm
Contents
1x Hybrid camera
1x Mounting kit (dowels and screws)
1x Mounting template
1x Quick start guide
Dimensions, Weight
Product dimensions: 97 x 97 x 94 mm (D x W x H)
Package dimensions: 125 x 120 x 110 mm (D x W x H)
Product weight: 210 g
Weight with packaging: 308 g
