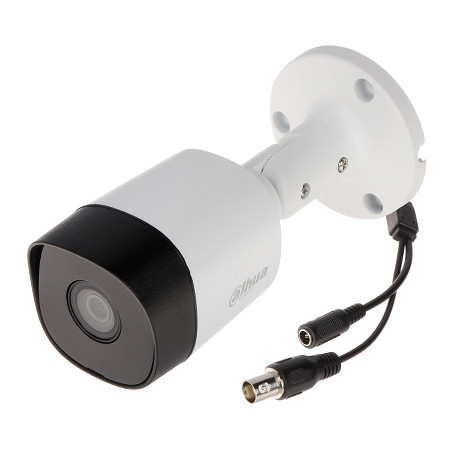

4-in-1 Full HD 1080p IR 20m IP67 Bullet Camera 3.6mm Lens External CCTV Aluminum

Model: DAHUA HAC-B2A21-0360B

EAN: 6931240074879 SKU: 931074870

• Standard support: AHD, HD-CVI, HD-TVI, PAL (4-in-1)
• Full HD 1080p resolution (1920x1080)
• 3.6 mm focal length lens with approx. 93° field of view
• IR infrared illuminator range up to 20 meters
• Durable aluminum housing with IP67 ingress protection rating
• Advanced image functions: D-WDR, 2D-DNR, BLC, HLC, ICR
• 3-Axis bracket for mounting on any plane
• OSD menu accessible directly from the recorder

Description

The DAHUA megapixel camera is an advanced monitoring system solution, combining high Full HD image quality with versatility thanks to 4-in-1 technology. This device supports AHD, HD-CVI, HD-TVI, and traditional analog PAL standards, making it an ideal choice for both modern installations and upgrading older surveillance systems without replacing cabling.

Specification

The camera is designed for operation in harsh outdoor conditions. The solid aluminum housing with an IP67 rating guarantees full protection against dust, dirt, and powerful water jets, as well as resistance to variable weather conditions in a wide temperature range from -40 to +60 degrees Celsius.

The main advantage of the camera is its 1/2.7" Progressive Scan CMOS sensor, which generates a crystal-clear image at a resolution of 1920 x 1080 pixels. This ensures every detail is perfectly visible, which is crucial for the security of a monitored object. Additionally, the 3.6 mm focal length lens provides a wide field of view of approximately 93 degrees, allowing for monitoring a significant area using just one device.

Installation of the camera is extremely simple thanks to the 3-Axis bracket, which allows for position adjustment in three planes, enabling precise directing of the lens to a chosen target. The aesthetic white color and compact dimensions mean the device discreetly blends into the building's architecture while maintaining its defensive and deterrent functions.

At night, the device uses an integrated infrared illuminator with a range of up to 20 meters, which automatically adjusts its power, ensuring a clear image even in total darkness. Advanced image enhancement functions, such as D-WDR (Digital Wide Dynamic Range) and 2D-DNR (Digital Noise Reduction), eliminate problems related to overexposure or underexposure of a scene, offering balanced and readable video footage under any conditions.

Transmission standard

AHD, HD-CVI, HD-TVI, PAL

Image sensor

1/2.7 " Progressive Scan CMOS

Sensor size

2.1 Mpx (Megapixel)

Resolution

1920 x 1080 - 1080p, 1280 x 720 - 720p, 960 x 576 - 960H, PAL

Lens

3.6 mm (fixed focus)

Viewing angle

93 ° (manufacturer data), 90 ° (test results)

IR illuminator

Range up to 20 m, automatic power regulation

Video output

AHD / HD-CVI / HD-TVI / PAL, 1 Vpp / 75 Ω

Selected image functions

D-WDR - Digital Wide Dynamic Range; 2D-DNR - Digital Noise Reduction; BLC/HLC - Backlight / High Light Compensation; ICR - Mechanical infrared filter; Sharpness - Contour sharpening; AGC - Automatic Gain Control; Privacy zones; Automatic white balance

Power supply and consumption

12 V DC / 220 mA; Power consumption ≤ 2.7 W

Housing and construction

Compact type, material: Aluminum, color: White

Ingress protection class

IP67 (weatherproof)

Operating conditions

Temperature: -40 °C ... 60 °C

Dimensions, Weight

Product dimensions: 158 x 70 x 70 mm (D x W x H)

Packaging dimensions: 180 x 90 x 95 mm (D x W x H)

Product weight: 250 g

Weight with packaging: 298 g
