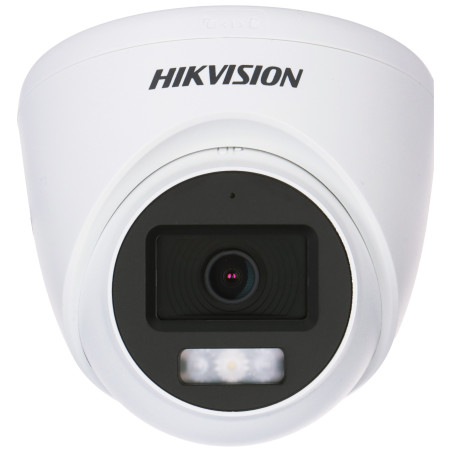

4K UHD Smart Hybrid Light Camera 8.3 Mpx IR 40m LED 20m IP67 2.8mm Lens CCTV Surveillance Hikvision DS-2CE78U0T-LF(2.8MM)
zł551.04
Tax included
The DS-2CE78U0T-LF is a modern megapixel camera that sets new standards in analog surveillance systems. Equipped with an advanced Progressive Scan CMOS sensor, it delivers images in stunning 4K UHD (8.3 Mpx) resolution. Due to such high resolution, every detail, such as facial features or license plate numbers, becomes clear and legible, which is crucial in professional security systems.
The innovative Smart Hybrid Light technology is a true breakthrough in night surveillance. The camera intelligently manages two types of lighting: traditional IR infrared with a range of up to 40 meters and visible white LED light with a range of up to 20 meters. In smart mode, the device monitors the surroundings using a discreet IR illuminator, and upon detecting an object (e.g., a person or vehicle), it automatically activates the white LEDs. Such a solution not only allows for obtaining full-color images in complete darkness but also acts as a preventive measure, signaling to an intruder that they have been recorded.
The device is extremely versatile due to support for four transmission standards: AHD, HD-CVI, HD-TVI, and CVBS. The ability to easily switch between systems using a dedicated button makes the camera an ideal choice both for new installations and when modernizing older CCTV systems without the need to replace cabling. The robust IP67-rated enclosure, made of a durable combination of metal and plastic, ensures full resistance to rain, snow, and dust, guaranteeing trouble-free operation in extreme temperatures from -40°C to +60°C. The 2.8mm wide-angle lens offers a field of view of up to 108 degrees, which allows for effective monitoring of large areas using fewer camera points. Advanced digital image processing functions, including D-WDR, BLC, and HLC, optimize display parameters in difficult lighting conditions, eliminating overexposure and extracting details from shadows.
4K UHD Smart Hybrid Light Camera 8.3 Mpx IR 40m LED 20m IP67 2.8mm Lens CCTV Surveillance
Model: Hikvision DS-2CE78U0T-LF(2.8MM)
EAN: 6931240010570 SKU: 931010576
- High resolution 8.3 Mpx - 4K UHD (3840 x 2160)
- Smart Hybrid Light technology - intelligent switching between IR and white LED light
- IR illuminator range up to 40 meters
- White LED light illuminator range up to 20 meters
- Universal 4-in-1 standard: AHD / HD-CVI / HD-TVI / CVBS
- Wide-angle 2.8 mm lens with 108° field of view
- IP67 ingress protection rating - full weather resistance
- D-WDR function for improved image dynamics
- Mechanical ICR infrared filter
- 12V DC power supply with low power consumption up to 4.8W
Description
The DS-2CE78U0T-LF is a modern megapixel camera that sets new standards in analog surveillance systems. Equipped with an advanced Progressive Scan CMOS sensor, it delivers images in stunning 4K UHD (8.3 Mpx) resolution. Due to such high resolution, every detail, such as facial features or license plate numbers, becomes clear and legible, which is crucial in professional security systems.
The innovative Smart Hybrid Light technology is a true breakthrough in night surveillance. The camera intelligently manages two types of lighting: traditional IR infrared with a range of up to 40 meters and visible white LED light with a range of up to 20 meters. In smart mode, the device monitors the surroundings using a discreet IR illuminator, and upon detecting an object (e.g., a person or vehicle), it automatically activates the white LEDs. Such a solution not only allows for obtaining full-color images in complete darkness but also acts as a preventive measure, signaling to an intruder that they have been recorded.
The device is extremely versatile due to support for four transmission standards: AHD, HD-CVI, HD-TVI, and CVBS. The ability to easily switch between systems using a dedicated button makes the camera an ideal choice both for new installations and when modernizing older CCTV systems without the need to replace cabling. The robust IP67-rated enclosure, made of a durable combination of metal and plastic, ensures full resistance to rain, snow, and dust, guaranteeing trouble-free operation in extreme temperatures from -40°C to +60°C. The 2.8mm wide-angle lens offers a field of view of up to 108 degrees, which allows for effective monitoring of large areas using fewer camera points. Advanced digital image processing functions, including D-WDR, BLC, and HLC, optimize display parameters in difficult lighting conditions, eliminating overexposure and extracting details from shadows.
Specification
Standard
AHD / HD-CVI / HD-TVI / CVBS - 4-in-1 technology allowing for compatibility with any HD analog recorder.
Sensor
Progressive Scan CMOS - guarantees a smooth image without flickering and high light sensitivity.
Resolution
3840 x 2160 (8.3 Mpx) 4K UHD @ 12.5 fps, 5 Mpx @ 20 fps, 4 Mpx @ 25 fps, 1080p @ 25 fps.
Lens
2.8 mm fixed focal length; fixed aperture; wide field of view.
Field of View
Horizontal: 108 °, Vertical: 59 °, Diagonal: 127 °.
IR Illuminator
Range up to 40 m; Smart IR function preventing overexposure of objects close to the camera.
White Light Illuminator (LED)
Range up to 20 m; allows for color image recording at night.
Smart Hybrid Light Technology
Enables mode selection: IR only, LED only, or hybrid mode (LED activation after motion detection by the recorder).
Selected Image Functions
D-WDR (Wide Dynamic Range), BLC (Backlight Compensation), HLC (Highlight Compensation), AGC (Automatic Gain Control), 2D DNR (Noise Reduction), Sharpness.
OSD Menu
Available via coaxial cable (HIKVISION-C). The camera software allows for precise tuning of sensor parameters. The user can manage the night mode switching threshold, adjust Smart Hybrid Light parameters, and optimize noise reduction and image enhancement functions. The system also enables configuration of exposure and white balance parameters directly from the camera menu, which is crucial for achieving optimal colors in various external lighting conditions.
Video Output
1 Vpp / 75 Ω - BNC connector; standard switching possible via a button on the cable.
Ingress Protection Rating
IP67 - dust-tight and waterproof enclosure.
Power Supply
12 V DC / 400 mA; Power consumption: ≤ 4.8 W.
Housing and Operating Conditions
Dome type; material: Metal + Plastic; Operating temperature: -40 °C ... 60 °C; Color: White.
Warranty
3 years from the manufacturer.
Content
1x Camera DS-2CE78U0T-LF(2.8MM)
1x Mounting plug kit
1x Drilling template
1x User manual
Dimensions, Weight
Product dimensions: 110 x 110 x 98 mm (D x W x H)
Package dimensions: 110 x 135 x 135 mm (D x W x H)
Product weight: 340 g
Weight with packaging: 464 g
