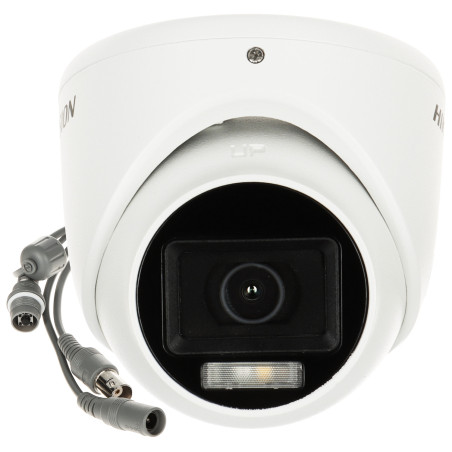

4K 8.3Mpx AHD CVI TVI PAL Smart Hybrid Light Camera IR 30m White Light 20m IP67 Metal Dome

Model: Hikvision DS-2CE76U0T-LMF 2.8MM

EAN: 6931240061596 SKU: 931061594

• High resolution 8.3 Mpx - 3840 x 2160 4K UHD ensures crystal clear images
• Smart Hybrid Light technology - intelligent selection between IR illuminator and white light
• 4-in-1 standard: supports AHD, HD-CVI, HD-TVI and PAL CVBS systems
• Wide 108° field of view lens - ideal for general surveillance
• Durable metal dome housing with IP67 ingress protection rating
• Advanced image enhancement features: D-WDR, BLC, HLC, AGC
• Mechanical ICR infrared filter ensuring true color reproduction during the day
• Easy configuration via intuitive OSD menu available from the recorder level
• No latency in image transmission over coaxial cable
• Capable of operating in extreme temperatures from -40°C to 60°C

Description

The presented camera is a modern solution in the field of video surveillance, offering unprecedented 4K UHD 8.3 Mpx image quality. It is a multi-system device that successfully works with recorders in AHD, HD-CVI, HD-TVI standards, as well as the classic analog PAL system. Such wide compatibility makes it an ideal choice both for building new security systems and for upgrading existing installations without the need to replace structural cabling.

Specification

One of the greatest advantages of the device is the innovative Smart Hybrid Light technology. It allows for intelligent night lighting management. The user has a choice between a classic, discreet infrared IR mode with a range of up to 30 meters or a white light LED mode with a range of 20 meters, which enables the recording of color images in total darkness. Crucially, in smart mode, the camera activates the LED lighting only after detecting motion in the monitored zone, which not only deters potential intruders but also ensures the highest quality evidentiary recording.

The camera is enclosed in a solid, metal housing with an IP67 protection class, which guarantees its complete resistance to difficult weather conditions, dust, and heavy rainfall. A wide viewing angle of 108 degrees, achieved thanks to a high-class 2.8 mm lens, allows for monitoring a large area using only a single camera point. The lack of latency in the transmission of the analog signal ensures smooth live viewing, which is crucial in professional property protection systems.

Video Standard

AHD / HD-CVI / HD-TVI / CVBS PAL

Image Sensor

8.3 Mpx Progressive Scan CMOS

Resolution and recording speed

TVI: 8Mpx @ 12.5/15 fps, 4Mpx @ 25/30 fps, 1080p @ 25/30 fps; CVI: 8Mpx @ 12.5/15 fps; AHD: 8Mpx @ 12.5/15 fps; CVBS: 960H

Lens

2.8 mm, horizontal field of view 108°, vertical 59°, diagonal 127°

Night illuminator

Smart Hybrid Light: IR range up to 30m, white light range LED up to 20m; Automatic power control

Image functions

D-WDR Digital Wide Dynamic Range - digital dynamic range extension allowing visibility in high-contrast scenes; BLC - back light compensation; HLC - high light compensation; AGC - automatic gain control; Sharpness - sharpness adjustment

White balance

Automatic ATW and manual MWB for correct color reproduction in all conditions

Day/Night

Mechanical ICR filter - automatic mode switching depending on light intensity

OSD Menu

Available via coaxial cable Coaxial Control - allows for remote changes to image settings and operating modes without the need for physical contact with the camera.

Software and Interface

The camera has built-in firmware enabling advanced control of the Smart Hybrid Light function. The OSD On-Screen Display interface allows for precise setting of exposure parameters, night mode only IR, only white light, or smart mode coupled with detection in the recorder, and configuration of video parameters such as brightness, contrast, and saturation. The system supports the Hikvision-C protocol, which allows for full control of the camera using a coaxial cable directly from the DVR interface without additional RS-485 cables.

Housing

Dome, material: Metal, color: White

Ingress protection class

IP67 - full protection against dust and effects of immersion in water up to 1m

Power supply and power consumption

12 V DC / 380 mA; Power consumption maximum 4.6 W

Dimensions, Weight

Product dimensions: 85 x 85 x 80 mm D x W x H

Package dimensions: 100 x 100 x 90 mm D x W x H

Product weight: 300 g

Weight with packaging: 360 g
