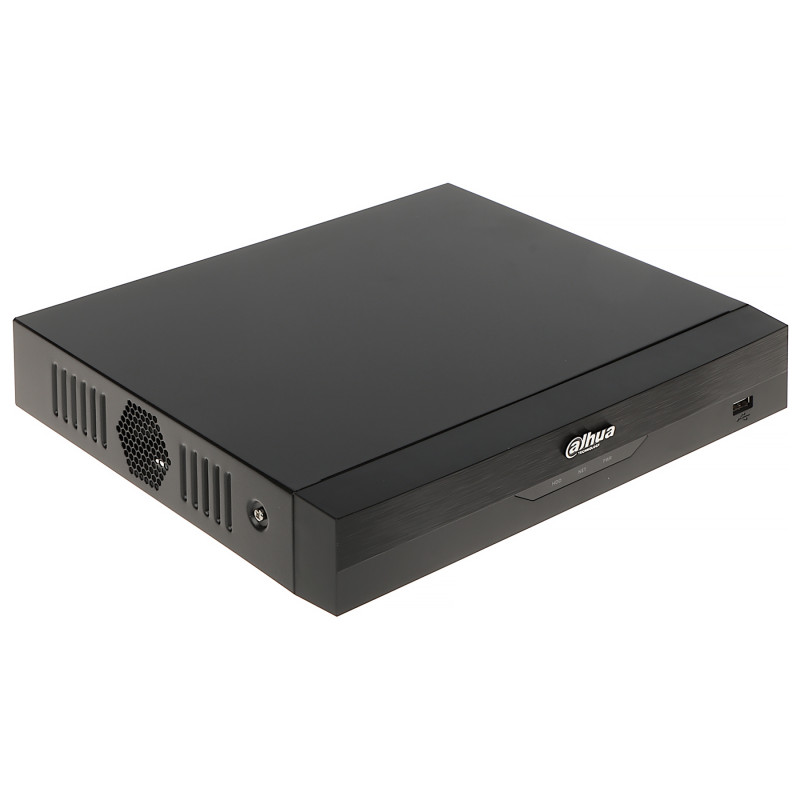

5-in-1 Digital XVR Recorder 4 Channels 4K UHD WizSense AI AcuPick Pentabrid CCTV AHD CVI TVI CVBS IP

Model: DAHUA XVR5104HS-4KL-I3/T

EAN: 6931240090930 SKU: 931090937

• Support for 5 standards: AHD, HD-CVI, HD-TVI, CVBS, IP
• Recording resolution up to 8 Mpx (4K UHD)
• Advanced WizSense AI analysis: perimeter protection and face recognition
• AcuPick technology for instant search of people and vehicles
• SMD Plus – intelligent motion detection with object classification
• AI Coding / H.265+ compression saving disk space
• Audio support over coaxial cable (4 channels)
• Remote access via DMSS mobile application (P2P)
• 4K HDMI and VGA video output
• Support for SATA hard drives up to 16 TB

Description

The Dahua DH-XVR5104HS-4KL-I3/T digital recorder is an ultra-modern device from the WizSense series, offering support for the highest 4K UHD resolutions. It is a penta-brid solution, which means full compatibility with AHD, HD-CVI, HD-TVI, CVBS, and IP systems. This makes the device extremely versatile and allows for the upgrade of existing analog systems to digital quality without the need for rewiring. The main advantage of the model is the implementation of advanced artificial intelligence, which dramatically increases the level of security.

Specification

The device is equipped with an HDMI output supporting 4K resolution, which allows for viewing images in incredible detail. The intuitive graphical menu makes configuration and daily operation simple, even for those without specialized technical knowledge. The ability to connect additional IP cameras (up to 8 channels in total) makes the system scalable and ready for future expansion. A solid housing and high quality of operation are characteristic features of the Dahua brand, guaranteeing reliable monitoring 24 hours a day, 7 days a week.

WizSense technology uses independent AI chips and deep learning algorithms, allowing for precise recognition of people and vehicles. This allows the system to eliminate false alarms caused by animals, falling leaves, or rain, focusing the operator's attention on actual threats. Another breakthrough is the AcuPick function, which enables the instant retrieval of specific objects from vast archives of recordings, saving hours of tedious work. The recorder supports SATA drives with a capacity of up to 16 TB, ensuring long storage times for video footage using AI Coding or H.265+ high compression.

Standard

AHD, HD-CVI, HD-TVI, CVBS, IP

Video Inputs

4 pcs. BNC

Video Outputs

1 pc. HDMI 4K, 1 pc. VGA (SPOT configuration possible)

Audio

Input: 1 pc. CINCH + 4 channels via coaxial; Output: 1 pc. CINCH

Video Compression Method

AI Coding / H.265+ / H.265 / H.264+ / H.264

Recorded Image Resolution

AHD/CVI/TVI: 8 Mpx (4K UHD), 6 Mpx, 5 Mpx, 4 Mpx, 1080p, 720p; CVBS: 960H; IP: max 8 Mpx

Recording Speed

8 Mpx @ 7 fps, 4K-N @ 15 fps, 6 Mpx @ 10 fps, 5 Mpx @ 12 fps, 4 Mpx @ 15 fps, 1080p @ 25 fps

Operating Modes

4x Analog (any standard) + 4x IP (up to 8 IP channels in total)

Supported Hard Drives

1x SATA III up to 16 TB

Network Functions

Built-in web server, support for up to 128 online users, remote backup of recordings, e-mail notifications

Artificial Intelligence (AI)

Perimeter protection (4 channels), SMD Plus (4 channels), Face recognition (2 channels), AcuPick (4 channels), AI Coding

Software and Application

The device works with the professional Dahua ecosystem. Mobile management is handled by the free DMSS application available for Android and iOS (iPhone) systems, which allows for live preview, playback of archived recordings, and receiving Push notifications about alarm events directly to the phone. The system supports P2P (cloud) technology, eliminating the need for a static IP address or complex port forwarding on the router. Dedicated SmartPSS Lite and SmartPSS software is available for PC/MAC computers, offering centralized management of multiple recorders and cameras. The built-in web interface (Web Server) allows for full configuration of image parameters, AI functions, and recording schedules from any web browser.

IVS Analysis and Functions

Line crossing detection, intrusion detection, human and vehicle classification, POS support (data from payment terminals), face searching in databases (up to 20,000 images, 10 databases)

Additional Interfaces

2x USB 2.0, 1x RS-485 (PTZ control Pelco-D/P), 1x RJ-45 (10/100 Mbps)

Power Supply and Power Consumption

12V DC / 2A (power adapter included), power consumption < 7W (without disk)

Physical Parameters

Dimensions: 260 x 238 x 48 mm (Compact 1U housing), Weight: 0.9 kg, Color: Black

Dimensions, Weight

Product dimensions: 238 x 260 x 48 mm (D x W x H)

Package dimensions: 315 x 333 x 89 mm (D x W x H)

Product weight: 900 g

Weight with package: 1550 g
