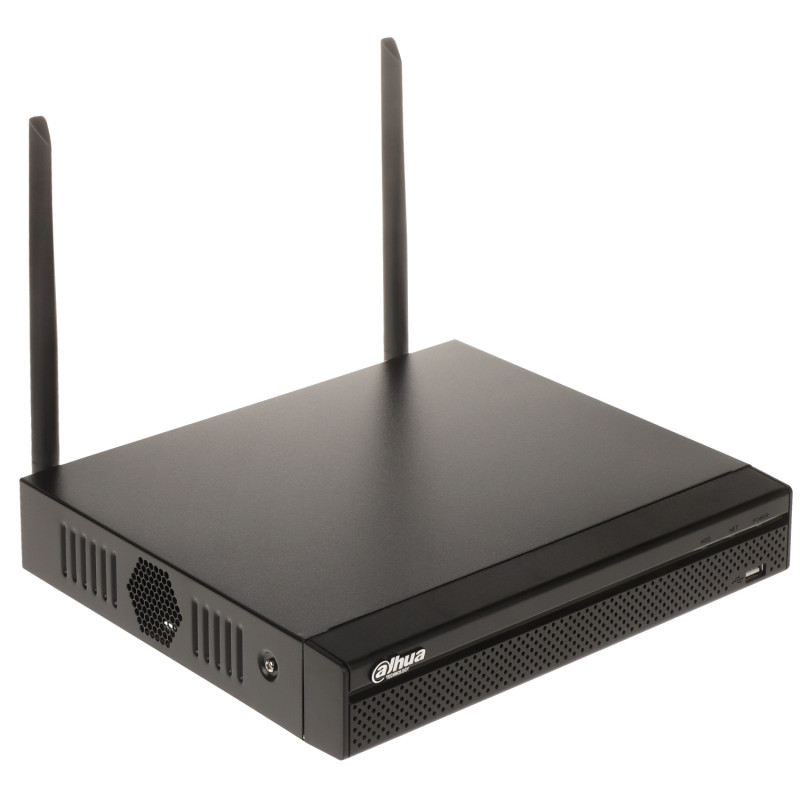

4 Channel Wireless Network Video Recorder Wi-Fi 6MP H.265 HDMI VGA P2P Mobile Access Cloud Onvif IP Monitoring

Model: DAHUA NVR1104HS-W-S2-CE

EAN: 6931240085066 SKU: 931085066

• Support for up to 4 IP cameras at resolutions up to 6 Mpx
• Built-in 2.4 GHz Wi-Fi module for wireless camera connection
• Cutting-edge Smart H.265 / H.265 image compression for storage efficiency
• Support for hard drives with a capacity of up to 16 TB
• Remote mobile access via P2P cloud and DMSS app
• Synchronous HDMI and VGA video outputs
• Full compatibility with ONVIF standard
• Continuous, schedule-based, or motion detection recording options
• Two-way audio support (CINCH input/output)
• Multilingual interface including Polish and stable 24/7 operation

Description

A modern network video recorder designed for monitoring systems requiring high reliability and full wireless connectivity. The device supports up to 4 IP cameras with impressive resolutions of up to 6 megapixels, ensuring exceptional image detail and security at the highest level. Thanks to the built-in Wi-Fi module operating in the 802.11 b/g/n (2.4 GHz) standard, system installation is simpler than ever before – there is no need to run cumbersome network cables to each camera, which significantly reduces installation costs and maintains interior aesthetics.

Specification

The greatest advantage of the device is the ability to perform instantaneous remote viewing via the free DMSS app available for Android and iOS systems. Thanks to modern P2P (cloud) technology, remote access configuration is limited to simply scanning a QR code on the device housing, eliminating the need for a static IP address or complex router port forwarding. A solid metal housing and passive cooling ensure quiet, stable, and fault-free operation in 24/7 continuous mode. It is an ideal solution for homes, offices, and small retail outlets.

The use of advanced Smart H.265 and H.265 compression allows for massive hard drive storage savings while maintaining crystal-clear video quality. The recorder supports professional SATA hard drives with capacities up to 16 TB, ensuring exceptionally long data archiving times without the need for frequent file overwriting. An intuitive user interface and full support for the ONVIF standard ensure the device is compatible with a wide range of IP cameras from various manufacturers, providing great flexibility when expanding the system.

Standard and Resolution

Standard: TCP/IP. Supported resolutions: max. 6 Mpx (3072 x 2048 px). Bitrate: max. 40 Mb/s (wired), max. 16 Mb/s (Wi-Fi).

Video and Audio Outputs

Video outputs: 1 pc. HDMI, 1 pc. VGA. Audio support: 4 channels - audio from cameras. Audio inputs: 1 pc. CINCH. Audio outputs: 1 pc. CINCH.

Compression and Archiving

Image compression methods: Smart H.265 / H.265 / Smart H.264 / H.264 / MJPEG. Drive support: 1x SATA III with capacity up to 16 TB. Archiving: USB (flash drive, external drive).

Recording and Playback

Recording modes: Manual, motion detection, schedule. Search: by time and event type (to the second). Synchronous playback: 1 or 4 channels, Smart Playback function.

Network Interface

1x RJ-45 10/100 Base-TX. Wi-Fi: built-in 2.4 GHz module, IEEE 802.11 b/g/n. External Wi-Fi antennas.

Network Functions

Dahua camera collaboration: automatic pairing, remote configuration, management. Built-in web server. Protocols: HTTP, HTTPS, TCP/IP, IPv4, RTSP, UDP, NTP, DHCP, DNS, Alarm Server, P2P.

DMSS Software

DMSS (Digital Mobile Surveillance System) is an advanced mobile application created by Dahua, enabling remote monitoring access from anywhere. The app offers live view, recording playback, push notifications about events, and device management via P2P cloud (QR code scanning). It supports two-way audio communication and remote parameter configuration. Available for Android and iOS.

Access and Ports

Default IP address: 192.168.1.108. Web access ports: 80, 37777. PC/mobile app ports: 37777. RTSP URL: rtsp://admin:password@192.168.1.108:554/cam/realmonitor.

Integration and Analysis

ONVIF: Yes (compatibility with other manufacturers). Motion detection: Yes. Intelligent image analysis: No. PTZ control: Support for IP speed dome cameras.

Additional Interfaces

USB: 2 pcs. USB 2.0 (mouse support, flash drive). Serial ports: None. Alarm inputs/outputs: None.

Selected Functions

Privacy zones (area masking), VIDEO signal loss alarm, Mouse support (included).

Power Supply and Consumption

Power supply: 12 V DC / 1.5 A (power adapter included). Power consumption: ≤ 10 W (without HDD installed).

Physical Parameters

Operating temperature: -10 °C ... 45 °C. Weight: 0.83 kg. Dimensions: 260 x 248 x 48 mm.

Languages and Production

Supported languages: Polish, English, and 17 others. Brand: DAHUA. Warranty: 3 years.

Dimensions, Weight

Product dimensions: 248 x 260 x 48 mm (D x W x H)

Package dimensions: 375 x 305 x 115 mm (D x W x H)

Product weight: 830 g

Package weight: 1508 g

Zum Download

• CE Declaration
• SAFETY COMPLIANCE
