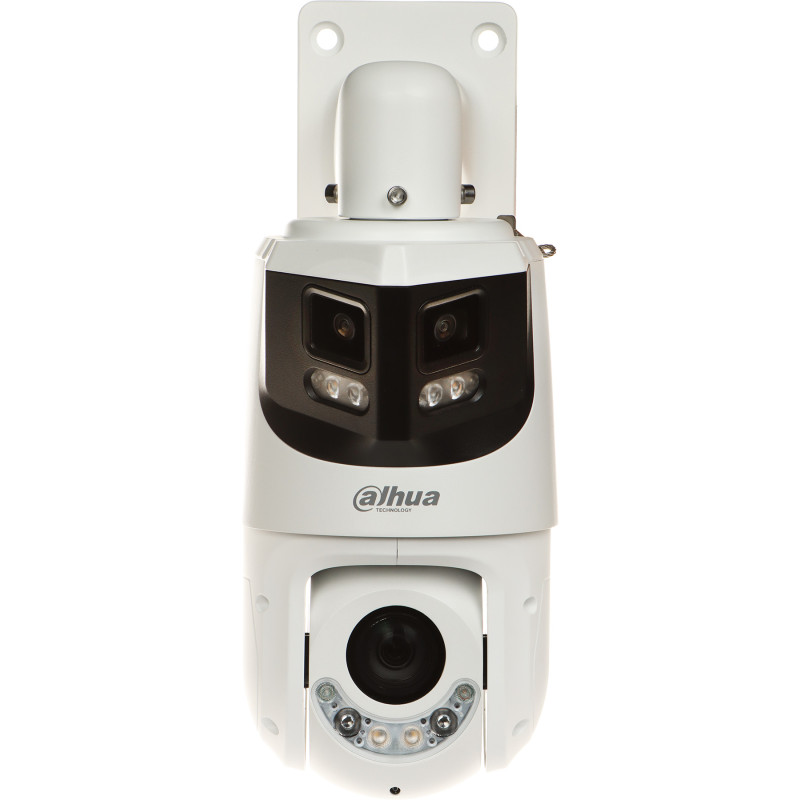

TiOC WizSense Dual Light AI Panoramic 4MP PTZ 8MP IP Camera 24/7 Full Colour

Model: DAHUA SDT4E425-8P-GB-APV1

EAN: 6931240089873 SKU: 931089870

• Integrated dual-camera system: panoramic (8 MP) and PTZ (4 MP)
• TiOC technology - 24/7 full-colour imaging, WizSense AI, and active deterrence
• 25x optical zoom for precise long-range identification
• Smart Tracking with human/vehicle classification
• Smart Dual Light - automatic switching between infrared and white light
• Active deterrence: built-in siren and flashing red and blue lights
• High weather resistance with IP66 rating and 6kV surge protection
• Advanced H.265+ compression for network bandwidth and storage efficiency

Description

Introducing an advanced video surveillance solution: a high-speed IP camera that integrates two independent modules in one housing: a PTZ camera and a panoramic camera. The device belongs to the prestigious TiOC (Three-in-One Camera) series, combining three breakthrough technologies: Dahua Full-Color for 24/7 color imaging, Wiz-Sense based on advanced artificial intelligence algorithms, and active audio-visual deterrence. Thanks to this combination, the camera does not just record events but actively prevents incidents by emitting warning signals in the form of flashing red-blue lights and audible messages.

Specification

Standard: IP; PTZ Camera: 1/2.8 " STARVIS™ CMOS; Panoramic Camera: 2 x 1/2.7 " Progressive Scan CMOS. Starlight technology ensures high sensitivity in night conditions.

The key advantage of this model is the cooperation of both modules – when the panoramic camera detects a target in a wide field of view (180°), the PTZ module automatically takes over tracking, offering a powerful 25x optical zoom to capture the finest details. Smart Dual Light technology allows for intelligent lighting management: at night, the camera can work in infrared mode, and upon detecting a person or vehicle, it immediately activates the white light illuminator, allowing for the identification of clothing colors or license plates. The IP66-rated housing guarantees trouble-free operation in the harshest weather conditions, which, combined with 6kV surge protection, makes it an ideal choice for protecting large areas such as parking lots, construction sites, airports, or industrial facilities.

PTZ Camera: 2560 x 1440 (4 MP), 2304 x 1296 (3 MP), 1080p, 720p; Panoramic Camera: 4096 x 1860 (7.6 MP), 2048 x 928, 1080p, 720p.

Standard and Sensor

PTZ Camera: 5 mm ... 125 mm (25x optical zoom), viewing angle 52 ° ... 3 °; Panoramic Camera: 2 x 2.8 mm, horizontal viewing angle 180 °.

Resolution

IR range: 100 m (PTZ), 30 m (Panorama); LED range (white light): 50 m (PTZ), 30 m (Panorama). Smart Dual Illumination feature automatically activates white light upon object detection.

Lens and Viewing Angle

Pan range: 360 ° (continuous) horizontal, -15 ° ... 90 ° vertical; Preset speed: 180 °/s (horizontal), 90 °/s (vertical); Presets count: 300; Tours: 8.

IR and LED Illuminator

Smart H.265+ / H.265 / Smart H.264+ / H.264B / H.264M / H.264H / MJPEG. Ensures high quality with minimal storage and bandwidth requirements.

PTZ Rotation Parameters

Alarm Input/Output: 2 / 1; Audio: Built-in speaker (siren), audio input/output, supports Two-way audio, audio detection.

Image Compression

Interface: RJ-45 (10/100 Base-T); Micro SD card support up to 512GB; Protocols: ONVIF, RTSP, P2P; Max 20 online users; Default IP address: 192.168.1.108.

Interfaces and Audio

Line crossing, intrusion, perimeter protection, loitering detection, abandoned/missing object, crowd estimation, human and vehicle detection (SMD 4.0), Smart Tracking.

Network and Storage

WDR - 120 dB, 2D-DNR, 3D-DNR, F-DNR (Defog), EIS (image stabilization), ROI (8 zones), BLC/HLC, ICR (mechanical filter), AGC, Automatic White Balance (AWB).

Intelligent Image Analysis (AI)

Remote access is provided via the built-in WEB Server and the free DMSS mobile application (available for Android and iOS). The DMSS app enables live viewing from anywhere in the world via the P2P cloud, playback of archived footage from the SD card, control of the PTZ camera rotation, and receipt of instant push notifications about intruder detection, line crossing, or entry into a protected zone. The software also allows for remote activation of the alarm siren and two-way conversation with individuals located near the camera.

Image Functions

PoE+ (802.3at) or 12 V DC / 3 A; Power consumption: typically ≤ 14 W, maximum 25 W (with illuminators and PTZ movement active).

Software and Application

Operating temperature: -40 °C ... 70 °C; Enclosure rating: IP66; Surge protection: 6 kV; Casing: Metal + Plastic, Speed Dome type; Color: White + Black.

Power Supply and Consumption

Dimensions: approx. 160 x 160 x 295 mm; Resistance to atmospheric discharges and heavy rainfall. Wall or ceiling mounting possible (depending on the mount).

Operating Conditions and Construction

1x High-speed PTZ camera with panoramic module

Mechanical Parameters

Dimensions, Weight

Product dimensions: 160 x 160 x 295 mm (D x W x H)

Package dimensions: 250 x 250 x 400 mm (D x W x H)

Product weight: 2500 g

Weight with packaging: 3800 g
