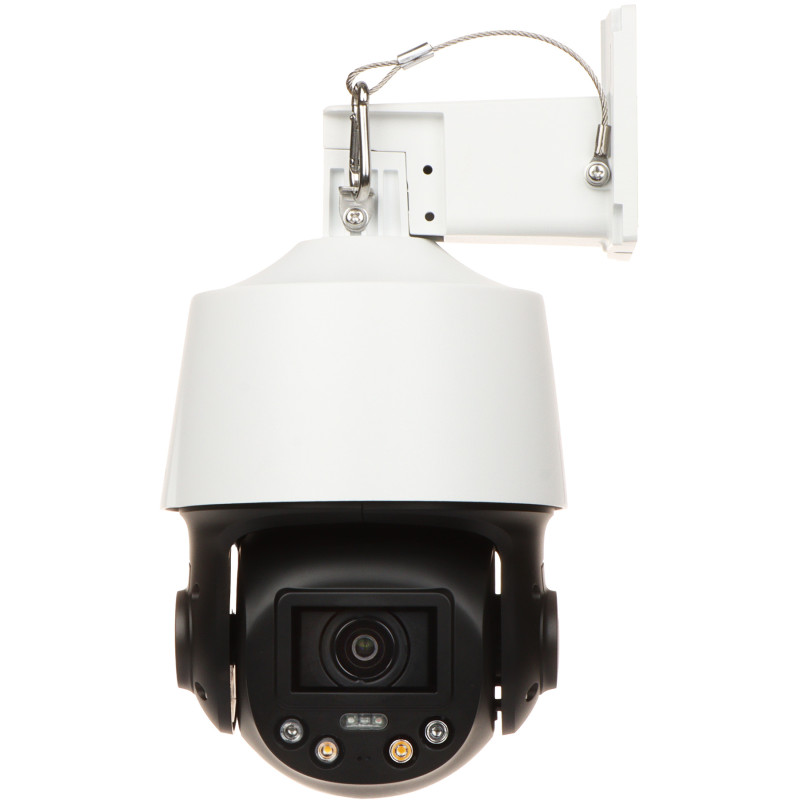

Dahua PTZ IP Camera 3.7MP 5x Zoom WizSense TiOC Active Deterrence Full-Color Microphone Siren

Model: DAHUA SD3E405DB-GNY-A-PV1

EAN: 6931240038680 SKU: 931038688

• TiOC Technology - Full-Color, WizSense and Active Deterrence in one
• High resolution 3.7 MP (2560 x 1440) for detailed images
• 5x optical zoom allowing close-ups without quality loss
• Active deterrence: flashing red and blue lights and a sound siren
• AI Artificial Intelligence: human and vehicle classification, perimeter protection
• 24/7 colour monitoring thanks to Full-Color technology and LED illuminator
• IR illuminator range up to 50 meters and white light up to 30 meters
• Built-in microphone and speaker for two-way audio communication
• Robust IP66 rated housing with built-in heater
• MicroSD card support up to 512GB for local storage
• PoE (802.3at) power supply for easier installation

Description

The Dahua SD3E405DB-GNY-A-PV1 IP camera is an advanced device from the innovative TiOC (Three-in-One Camera) series, representing a breakthrough in active surveillance. The device integrates three key technologies: Full-Color, allowing for bright and color images 24/7; WizSense, using AI artificial intelligence algorithms to accurately recognize humans and vehicles; and active deterrence technology. Upon detecting an unwanted event, the camera reacts immediately, activating flashing red and blue warning lights and emitting a loud siren sound or predefined voice messages. As a result, the system not only records evidence but effectively prevents incidents.

Specification

Equipped with a 5x optical zoom and a PTZ rotating head, the camera allows for monitoring large areas without blind spots. The 3.7 MP resolution ensures crystal clear images, while advanced features such as 120dB WDR or 3D-DNR digital noise reduction maintain detail visibility even in difficult lighting conditions, such as strong backlighting or darkness. The device features a built-in heater with a thermostat, which combined with the IP66 rating makes it a reliable solution for outdoor operation in extreme temperatures from -30°C to 60°C. Support for PoE (Power over Ethernet) makes installation simple, requiring only one transmission cable. By choosing the SD3E405DB-GNY-A-PV1 model, you are investing in intelligent security that actively protects your property.

Standard and Resolution

Standard: IP; Resolution: 2560 x 1440 - 3.7 Mpx, 2304 x 1296 - 3 Mpx, 1920 x 1080 - 1080p, 1280 x 720 - 720p; Speed: 25 fps @ 4Mpx.

Sensor and Lens

Sensor: 1/2.8 " Progressive Scan CMOS; Lens: 2.7 ... 13.5 mm (varifocal); Angle of view: 95 ° ... 30 °.

Zoom

Optical zoom: 5x; Digital zoom: 16x.

Night illumination

IR illuminator range: 50 m; White light illuminator range (LED): 30 m; Full-Color technology (24/7 color image).

PTZ parameters

Rotation range: 0 ° ... 355 ° (horizontal), -15 ° ... 90 ° (vertical); Manual control speed: up to 36 °/s (horizontal); Presets: 300 (speed up to 36 °/s).

Image compression

H.265+ / H.265 / H.264+ / H.264 / MJPEG.

Audio

Built-in microphone and speaker; External microphone input; Two-way audio support; AAC compression.

Interface and Network

Network interface: RJ-45 (10/100 Base-T); Protocols: ONVIF, built-in WEB Server; Max. 20 on-line users.

Access and Software

Mobile access: Port 37777, DMSS app (Android/iOS); Default IP address: 192.168.1.108; Default login: admin.

Intelligent Video Analysis (IVS)

Intrusion, line crossing, face detection (capture), human and vehicle classification, crowd gathering detection, loitering and parking detection.

Advanced video features

WDR - 120 dB (Wide Dynamic Range), 2D/3D-DNR (Noise reduction), EIS (Image stabilization), F-DNR (Defog), ROI (Region of Interest), BLC/HLC, ICR (Mechanical filter), Mirror.

Active Deterrence

Flashing blue and red light; Sound siren; AI event-triggered voice messages.

Power and Power consumption

PoE (802.3at), 12 V DC / 1.25 A; Power consumption: typically 4.5 W, maximum 15 W.

Operating Conditions and Housing

Protection class: IP66; Operating temperature: -30 °C ... 60 °C; Built-in heater with thermostat; Housing: Metal + Plastic (Speed Dome).

Software capabilities

The DMSS (Digital Mobile Surveillance System) mobile app is a professional tool for managing Dahua surveillance systems on mobile devices. The software enables instant live viewing from anywhere in the world via a secure P2P cloud connection. The user receives immediate Push notifications upon motion or intruder detection, allowing for a quick response. DMSS supports full control of PTZ cameras, two-way audio communication, and remote playback of archived recordings saved on a memory card. Additionally, the application allows for manual activation of deterrence functions (lights and siren) and configuration of image parameters directly from the phone. The interface is fully localized.

Dimensions, Weight

Product dimensions: 236 x 143 x 140 mm (D x W x H)

Package dimensions: 300 x 200 x 200 mm (D x W x H)

Product weight: 1350 g

Package weight: 1750 g
