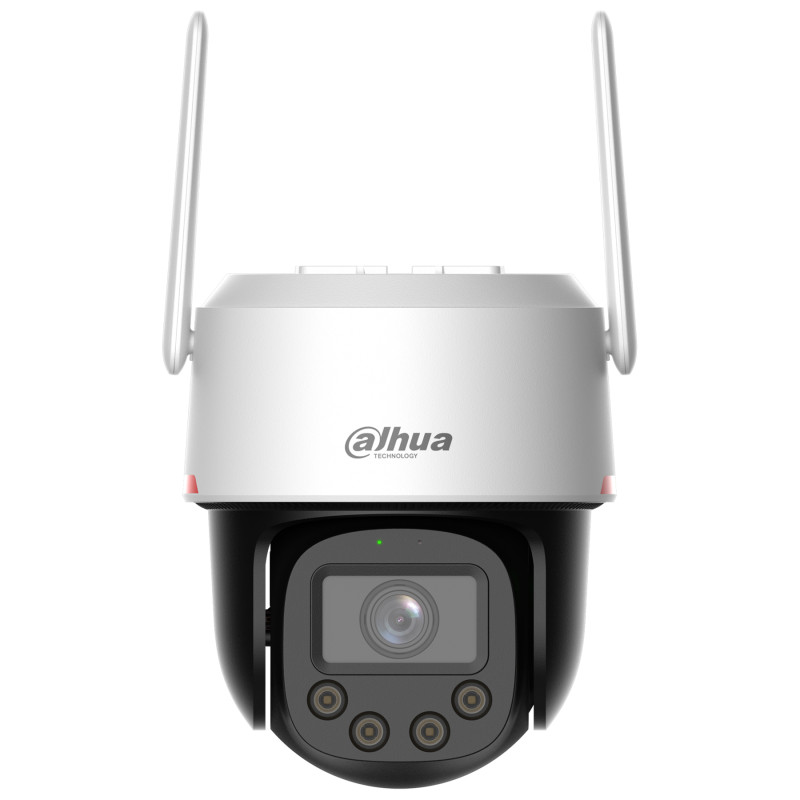

Dahua PTZ WiFi 6 3MPx 2K IP Camera with Night Color Vision and Human Detection

Model: DAHUA P3F-PV-0360B-PRO

EAN: 6931240090442 SKU: 931090441

• 3 Mpx resolution (2304 x 1296) for high image detail
• WizColor technology - full-color night imaging in low light without glare
• Supports modern Wi-Fi 6 (802.11ax) standard for improved range and stability
• Active intruder deterrence via built-in white light and siren
• Intelligent IVS image analysis: intrusion, line crossing, and human detection
• Smart Tracking function - automatic tracking of moving objects
• Two-way audio communication with built-in microphone and speaker
• Wide Dynamic Range (WDR) 120dB for perfect images in high-contrast lighting
• Micro SD card slot supporting media up to 512 GB
• IP66 ingress protection rating - complete resistance to water and dust in outdoor conditions

Description

The Dahua P3F-PV-0360B-PRO PTZ IP camera from the innovative Picoo F1 series is an advanced monitoring tool setting new standards in property protection. Utilizing modern Wi-Fi 6 technology, the device offers an extremely stable and fast wireless connection, eliminating issues with lag and interference, which is critical for security systems. The camera generates high-resolution 3-megapixel (2K) imagery, resulting in crystal-clear details for precise facial and license plate recognition.

Specification

The main advantage of this model is WizColor technology, which, combined with an efficient AI-ISP algorithm and a large 1/2.8" sensor, enables full-color recording even in total darkness. Unlike traditional cameras, WizColor minimizes motion blur and preserves natural colors by utilizing even minimal sources of ambient light. The device features an active deterrent function - a built-in LED spotlight and sound siren can be triggered automatically upon detecting an intruder, effectively discouraging uninvited guests from entering the property.

The camera is fully adapted for outdoor operation thanks to its IP66 ingress protection rating, ensuring trouble-free performance in harsh weather conditions. The user has full control through the PTZ (pan and tilt) mechanism, allowing monitoring of a wide area with a single camera. Additionally, two-way audio (built-in microphone and speaker) enables conversations with people near the camera directly via the DMSS mobile app. Support for Micro SD cards up to 512GB allows for large amounts of local storage without the need for an external NVR.

Standard and Resolution

IP; 3 Mpx - 2304 x 1296, 1080p - 1920 x 1080, 720p - 1280 x 720

Sensor and Lens

1/2.8 " Progressive Scan CMOS; Fixed lens 3.6 mm; View angle: 82 °

PTZ Rotation Range

Pan: 0 ° ... 345 ° (rotation limited by limit switch); Tilt: 0 ° ... 90 °

Night Mode and Lighting

White light (LED) range: 30 m; WizColor technology (color at night); ICR - Mechanical infrared filter

Image Compression

Smart H.265+ / H.265 / Smart H.264+ / H.264B / H.264M / H.264H / MJPEG

Image Fluidity

Main stream: 15 fps @ 3 Mpx

Network Interfaces

Wi-Fi 6 - 2.4 GHz IEEE 802.11 b/g/n/ax; Ethernet - 10/100 Base-T (RJ-45)

Audio

Built-in microphone; Built-in speaker; Audio detection; Two-way audio support

Intelligent IVS Analysis

Intrusion, line crossing, tripwire tracking, motion detection based on human detection

Selected Image Features

WDR - 120 dB (Wide Dynamic Range), Day/night mode, Intelligent object tracking, Active deterrence (light and sound)

Memory and Recording

Micro SD card slot up to 512GB

Power Supply and Consumption

12 V DC / 1 A (power adapter not included); Power consumption: ≤ 9 W

Construction and Environment

Speed Dome type housing, plastic; White color; IP66 ingress protection; Operating temperature: -30 °C ... 55 °C

Access and Software

Embedded WEB Server, NVR compatibility, ONVIF; Mobile access: Port 37777, DMSS app (Android/iOS). DMSS is a professional Dahua mobile application enabling remote live viewing, recording playback, and push notifications for alarm events. It allows full control of PTZ functions, camera parameter configuration via P2P cloud, and two-way voice communication from anywhere in the world. The application interface is optimized for high performance and intuitive CCTV system management.

Dimensions, Weight

Product dimensions: 130 x 130 x 154 mm (D x W x H)

Packaging dimensions: 150 x 200 x 180 mm (D x W x H)

Product weight: 600 g

Shipping weight: 997 g
