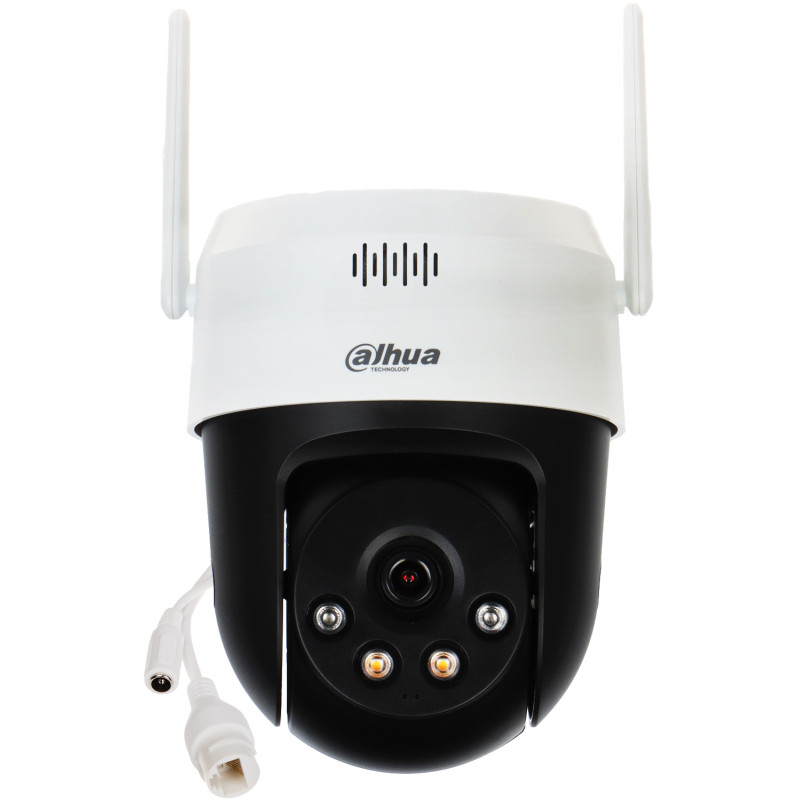

PTZ Full-Color WiFi IP Camera 3Mpx IR 30m LED 30m AI Active Deterrence SMD 3.0

Model: DAHUA P3AE-PV

EAN: 6931240051047 SKU: 931051049

• High 3 Mpx resolution (2304 x 1296) for detailed images
• Full-Color technology – color image at night
• Smart Dual Light – intelligent switching between IR and LED
• Active deterrence – built-in siren and light alarm
• SMD 3.0 – object classification (human/vehicle) and false alarm reduction
• Smart Tracking function – automatic tracking of moving objects
• Two-way audio communication – built-in microphone and speaker
• Wireless Wi-Fi and wired LAN (RJ-45) connectivity
• Support for Micro SD memory cards up to 256GB
• Weatherproof IP66 rating

Description

The DAHUA P3AE-PV IP camera from the Picoo series is a modern monitoring device that redefines safety standards in the Smart Home and professional systems segment. Equipped with advanced Full-Color technology, it allows for the recording of color-saturated, clear images around the clock, even in total darkness. This is possible thanks to the innovative Smart Dual Light system, which intelligently switches between discreet infrared (IR) lighting and intense white LED light upon detecting an intruder.

Specification

One of the key advantages of the device is the active deterrence function. A built-in speaker and light system allow for automatic generation of warning signals after a protected zone is breached, which effectively discourages a potential burglar from taking further actions. Thanks to Artificial Intelligence (AI) and the SMD 3.0 algorithm, the camera accurately recognizes human silhouettes and vehicles, eliminating false alarms caused by animals or plant movement.

The integrated 2.4 GHz Wi-Fi module ensures a stable wireless connection, which significantly simplifies installation and reduces cabling costs. The camera offers full PTZ control, which, combined with an 87-degree wide viewing angle, allows for monitoring vast areas using only one device. A robust IP66-rated housing guarantees failure-free operation in difficult weather conditions, from heavy rain to freezing winters. It is an ideal choice for those seeking an intelligent, reliable, and easy-to-use security system.

Standard

IP

Resolution

2304 x 1296 - 3 Mpx, 1920 x 1080 - 1080p, 1280 x 720 - 720p

Sensor

1/2.8 " Progressive Scan CMOS

Lens

4 mm

Viewing angle

87 °

IR / LED illuminator range

30 m (Infrared) / 30 m (White light)

Rotation range

Pan: 0 ° ... 345 ° (limit by mechanical stop), Tilt: 0 ° ... 80 °

Rotation speed

Manual control: up to 74 °/s (pan) / 36 °/s (tilt); Presets: up to 62 °/s (pan) / 36 °/s (tilt)

Video compression method

H.265+ / H.264 / H.265 / MJPEG / H.264+

Network interface

Wi-Fi - 2.4 GHz IEEE 802.11 b/g/n, Ethernet 10/100 Base-T (RJ-45)

Audio

Built-in microphone and speaker, two-way audio support, sound detection

Intelligent image analysis

SMD 3.0 (humans and vehicles), line crossing, intrusion, intelligent object tracking

Selected features

D-WDR (Wide Dynamic Range), BLC (Backlight Compensation), HLC (Highlight Compensation), ICR (Mechanical IR Filter), Smart Dual Light, Active deterrence (light and sound)

DMSS software

The DMSS (Digital Mobile Surveillance System) application is an advanced tool for managing the Dahua monitoring system from Android/iOS mobile devices. It offers high-resolution live view, remote playback of recordings from a memory card, and instant push notifications about AI events (human/vehicle detection). It enables full control over PTZ functions, two-way conversations through the camera speaker, and remote activation of the alarm siren. The system supports P2P cloud connectivity, eliminating the need for a static IP address.

Power supply and power consumption

12 V DC / 1 A (power adapter included), Power consumption ≤ 11 W

Operating conditions

Temperature: -30 °C ... 55 °C, Ingress protection rating: IP66

Housing

Speed Dome, material: Plastic, color: White

Memory slot

Micro SD up to 256GB

Dimensions, Weight

Product dimensions: 111 x 111 x 141 mm (D x W x H)

Packaging dimensions: 145 x 220 x 145 mm (D x W x H)

Product weight: 440 g

Weight with packaging: 742 g
