Indoor PTZ Wi-Fi IP Camera 3Mpx 3.6mm IR 10m Audio SD Card P2P Cloud AI Tracking

Model: DAHUA H3B

EAN: 6931240042632 SKU: 931042631

• High resolution 3 Mpx (2K) for detailed images
• Full PTZ rotation: 350° horizontal and 85° vertical
• Two-way audio communication via built-in microphone and speaker
• Wireless Wi-Fi 6 (802.11ax) connectivity for stable transmission
• Intelligent AI analysis: human/pet detection and motion tracking
• Support for Micro SD cards up to 256 GB for local recording
• Remote access via free DMSS mobile app (Android/iOS)
• Night mode with IR illuminator up to 10 meters
• Efficient H.265 video compression to save storage space
• D-WDR feature to improve visibility in high-contrast lighting

Description

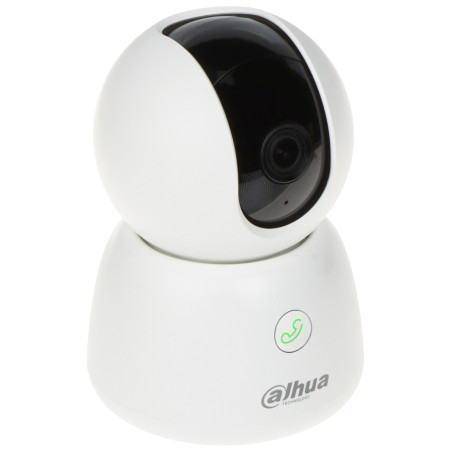

The H3B Hero B1 camera is a modern and versatile indoor monitoring solution that combines high-quality 3 Mpx imaging with full PTZ rotation functionality. With a resolution of 2304 x 1296 pixels, the user receives a crystal-clear view, allowing for the identification of details that standard Full HD cameras cannot capture. The device is designed with home security and comfort in mind – it works perfectly as an advanced baby monitor. A built-in microphone and speaker enable two-way audio communication, allowing for remote conversations with children or household members, or deterring an uninvited guest directly from the mobile app.

Specification

Standard: IP; Resolution: 2304 x 1296 px - 3 Mpx; Sensor: 1/3.2 " Progressive Scan CMOS

The use of the latest Wi-Fi 6 (IEEE 802.11ax) standard in the 2.4 GHz band guarantees exceptional connection stability, greater range, and resistance to interference, which is crucial for smooth video streaming without delays. The Hero B1 camera supports efficient H.265 compression, which drastically reduces network bandwidth consumption and storage usage on the Micro SD card (supports up to 256GB). Intelligent AI functions, such as human silhouette recognition and automatic movement tracking (Auto Tracking), ensure the camera independently follows a moving target, informing the user of important events via push notifications. Thanks to its wide rotation range (350 degrees horizontally and 80 degrees vertically), the H3B eliminates dead spots, offering a full view of the entire room. Simple configuration via the P2P cloud in the DMSS app makes the system ready to work in minutes, without requiring specialized technical knowledge or a public IP address.

Lens: 3.6 mm; Angle of view: 79 ° (horizontal); IR illuminator range: 10 m

Standard and Resolution

Horizontal rotation range: 0 ° ... 350 ° (rotation limited by limit switch); Vertical rotation range: -5 ° ... 80 °

Optics and Angle of View

Built-in microphone; Built-in speakers; Supports two-way audio (Full Duplex)

PTZ Rotation Parameters

Image compression method: H.265; Main stream transmission speed: 25 fps @ 3 Mpx

Audio

10/100 Base-T (RJ-45); Wi-Fi : IEEE 802.11 b/g/n/ax (Wi-Fi 6), 2.4 GHz; Wi-Fi range up to 50 m in open space

Compression and Video

Cloud access (P2P); No built-in WEB Server; Configuration only via mobile app; Default IP address: DHCP

Network Interface

The DMSS (Digital Mobile Surveillance System) app is a professional mobile tool created by Dahua for comprehensive security system management from a smartphone or tablet. The software enables instant device addition by scanning QR codes (P2P technology), which eliminates the need to forward ports on the router. Key features of the application include real-time viewing, remote playback of archive recordings from the memory card, control of PTZ rotating heads, and two-way voice communication support. The system supports advanced Push notifications sent immediately upon detecting motion or zone violation, allowing for an immediate response. DMSS offers a clear interface and a high level of data encryption for complete user security.

Access and Configuration

Intelligent human silhouette recognition; Human movement tracking (Auto Tracking); Motion detection with distinction between humans and animals

DMSS Software

D-WDR (Wide dynamic range of light); Image rotation and mirroring (Mirror); Motion detection (max. 4 zones)

Intelligent Image Analysis

Memory card slot: Supports Micro SD cards up to 256GB; RTSP protocol for integration with recorders

Image Functions

Power supply: 5 V DC / 1 A (power adapter included); Power consumption: 1.6 W (typical), 3.8 W (maximum)

Memory and Recording

Housing: Plastic, white color; Operating temperature: -10 °C ... 45 °C; Application: Indoor

Power Supply and Power Consumption

Camera dimensions: Ø 84 x 124 mm; Device weight: 0.21 kg; Gross weight (with packaging): 0.388 kg

Construction and Environment

1x H3B Camera

1x 5V DC / 1A Power adapter

1x Power cable

1x Mounting template

1x Set of wall plugs and screws

1x Quick start guide

Dimensions and Weight

Dimensions, Weight

Product dimensions: 84 x 84 x 124 mm (Depth x Width x Height)

Packaging dimensions: 100 x 180 x 100 mm (Depth x Width x Height)

Product weight: 210 g

Weight with packaging: 388 g
