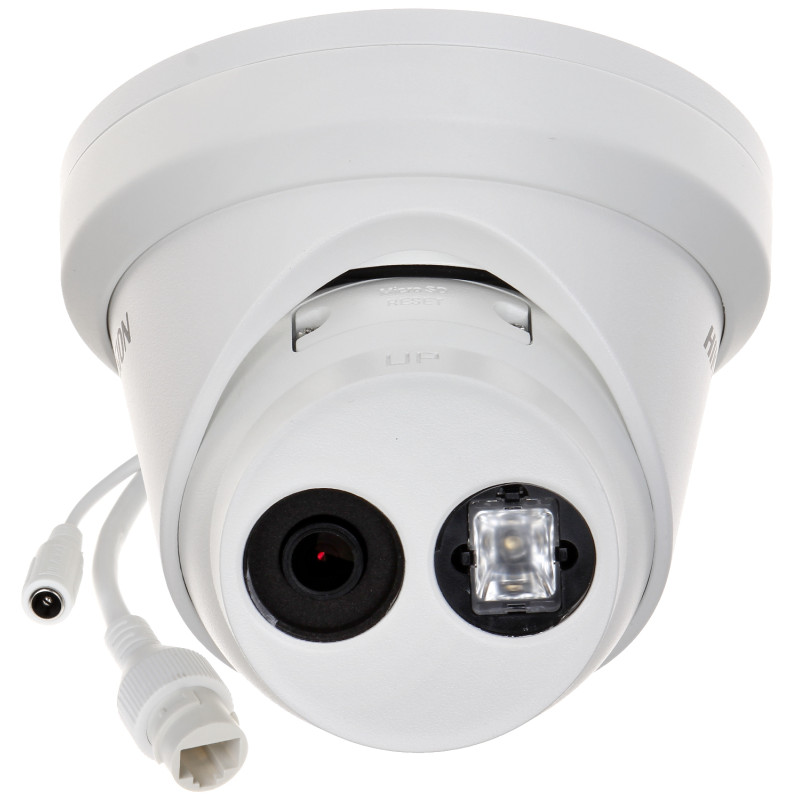

Hikvision 1080p 2MP Full HD IR 30m WDR AcuSense IP Security Camera IP67 SD Slot ONVIF Face Detection

Model: Hikvision DS-2CD2323G2-I 2.8MM

EAN: 6931240023532 SKU: 931023536

• High resolution 2 Mpx - 1080p for detailed images
• AcuSense technology - intelligent human and vehicle classification
• WDR 120dB - wide dynamic range for better visibility in high-contrast scenes
• H.265+ compression - lower bandwidth and storage requirements
• EXIR illuminator with a range of up to 30m for excellent night vision
• IP67 protection class - full resistance to water and dust
• MicroSD card support up to 256GB for local storage
• Powered via PoE 802.3af or 12V DC
• IVS image analysis: line crossing, intrusion, face detection
• Remote access via Hik-Connect application iOS/Android

Description

The professional Hikvision DS-2CD2323G2-I IP camera is an advanced video surveillance solution offering Full HD 1080p high-resolution images. Thanks to the use of a modern 1/2.8 Progressive Scan CMOS sensor, the device generates extremely clear and detailed recordings, which are crucial for the identification of people and events. The main advantage of this model is the AcuSense technology, which uses deep learning algorithms to classify objects. This allows for precise filtering of false alarms caused by leaves, animals, or rain, focusing the system's attention only on humans and vehicles.

Specification

An additional advantage is the support for modern H.265+ compression, which significantly reduces network bandwidth requirements and hard drive space while maintaining the highest image quality. The camera has a built-in slot for microSD cards with a capacity of up to 256GB, which enables local video storage and serves as excellent protection in case of network failure (ANR function). Support for the PoE (Power over Ethernet) standard simplifies installation by allowing power and data to be transmitted using a single twisted-pair cable. Remote access via the Hik-Connect mobile application allows you to view images from anywhere in the world.

The camera is equipped with a 2.8 mm lens, providing a wide viewing angle of approximately 107 degrees, ideal for monitoring large areas. The use of an IR illuminator with a range of up to 30 meters using EXIR technology guarantees excellent visibility even in complete darkness, ensuring uniform lighting of the entire scene without overexposing the center of the image. The IP67-rated metal housing provides full resistance to harsh weather conditions, making the camera an ideal choice for outdoor installation on building facades.

Standard and Resolution

Standard: IP; Resolution: 1920 x 1080 (1080p), 1280 x 720 (720p); Transmission speed: 25 fps @ 1080p

Sensor and Lens

Sensor: 1/2.8 Progressive Scan CMOS; Lens: 2.8 mm; Viewing angle: 107 (manufacturer data), 104 (our tests)

Night Illumination

IR illuminator range: 30 m; EXIR technology - uniform scene illumination; Mechanical IR cut filter (ICR)

Compression and Streams

Compression methods: H.265+ / H.265 / H.264+ / H.264 / MJPEG; Main and sub-stream support; SVC (Scalable Video Coding)

Image Functions

WDR - 120 dB (Wide Dynamic Range); 3D-DNR (Digital Noise Reduction); ROI (Region of Interest); BLC/HLC (Backlight/Strong Light Compensation); Anti-Flicker; Sharpness

Intelligent Analysis (IVS)

AcuSense - false alarm filtering (humans/vehicles); Line crossing; Intrusion; Face detection

Network and Protocols

Interface: RJ-45 (10/100 Base-T); ONVIF: 18.12; RTSP; WEB Server: Built-in; Max. 6 online users

Data Storage

Memory card slot: Micro SD up to 256GB; NAS (Network Attached Storage) support; ANR - synchronization after network failure

Software

The device works with advanced Hik-Connect and iVMS-4200 software. Hik-Connect is a mobile application designed for Android and iOS systems, which allows for instant live preview from anywhere in the world via the P2P cloud. The user receives push notifications about alarm events, such as motion detection or area intrusion. iVMS-4200 is professional PC software used for comprehensive monitoring system management, allowing for configuration of image parameters, management of recordings on a NAS drive or SD card, and precise filtering of intelligent image analysis (VCA) events. Default IP address is 192.168.1.64, access port 8000.

Power Supply and Consumption

Power supply: PoE (802.3af) or 12 V DC / 450 mA; Power consumption: <= 6.5 W (PoE), <= 5.5 W (12V)

Construction and Durability

Housing: Dome, Metal; Color: White; Protection class: IP67; Operating temperature: -30 C ... 60 C

Configuration and Security

Default login: admin; Administrator password set upon first launch; Configurable privacy zones; Motion detection; Mirror

Physical Parameters

Dimensions: O 127 x 96 mm; Weight: 0.6 kg; Material: Metal + plastic

Supported Languages

Polish, English, Bulgarian, Croatian, Czech, Danish, Estonian, Finnish, French, Greek, Spanish, Dutch, German, Norwegian, Portuguese, Russian, Romanian, Slovak, Swedish, Italian and others

Dimensions, Weight

Product dimensions: 127 x 127 x 96 mm (D x W x H)

Package dimensions: 150 x 150 x 140 mm (D x W x H)

Product weight: 600 g

Weight with packaging: 820 g
