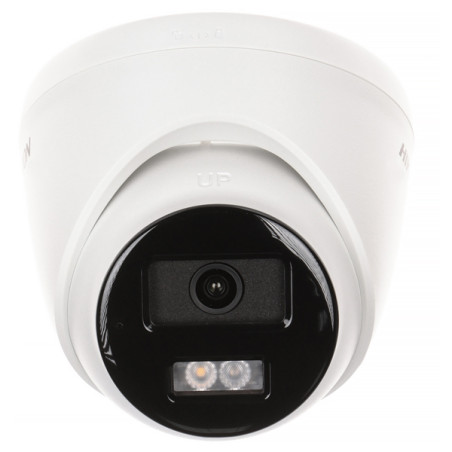

4MP Smart Hybrid Light IP Camera with LED IR Illumination Human and Vehicle Detection Microphone Speaker SD

Model: Hikvision DS-2CD1343G2-LIUF/SL(2.8MM)/PL

EAN: 6931240042533 SKU: 931042536

• High 4MP resolution for detailed 2K images
• Smart Hybrid Light technology - intelligent IR/LED switching
• Intelligent motion detection with human and vehicle classification
• Built-in microphone and speaker for two-way audio communication
• Visual and auditory alarm for active deterrence
• Support for Micro SD cards up to 512 GB for local storage
• IP67 ingress protection rating ensuring full weather resistance
• PoE (802.3af) power supply for simple and fast one-cable installation
• Wide Dynamic Range (WDR) 120 dB for excellent images in difficult lighting

Description

The 4-megapixel (2560 x 1440) high-resolution IP camera is an advanced monitoring device that combines modern image processing technologies with a robust construction adapted for operation in harsh outdoor conditions. The main advantage of this model is the innovative Smart Hybrid Light technology, which allows the user to intelligently manage night lighting. The system automatically switches between a discreet IR illuminator and bright white LED light when an intruder is detected, allowing for the recording of high-clarity color evidence at critical moments. The device has been designed for maximum installation versatility, offering power via a traditional 12V DC power supply or a convenient PoE (802.3af) standard, which significantly simplifies cabling.

Specification

Standard: IP; Resolution: 2560 x 1440 - 4 Mpx, 1920 x 1080 - 1080p, 1280 x 720 - 720p; Sensor: 1/3 " Progressive Scan CMOS

The security of the monitored object is enhanced by a built-in intelligent image analysis algorithm that precisely classifies objects, distinguishing between humans and vehicles. Thanks to this, the number of false alarms caused by animals or vegetation movement is reduced to a minimum. Additionally, the camera features a built-in speaker and microphone, which enables two-way audio communication and the deterrence of potential burglars using voice messages or sound signals. The weather-resistant housing with an IP67 rating ensures reliable operation even in rain or heavy dust. A wide viewing angle of 98 degrees allows large areas to be covered by a single camera, making it an ideal choice for protecting homes, offices, and warehouses. The use of efficient H.265+ codecs allows for disk space savings while maintaining the highest recording quality.

Lens: 2.8 mm; Viewing angle: 98 °

Standard and Image

White light (LED) illumination range: 30 m; IR illumination range: 30 m; Smart Hybrid Light technology - IR or white light mode activated by object detection

Optics

Audio: Built-in microphone, Built-in speaker, Audio transmission over network, AAC standard compatibility, Noise and echo reduction; Visual and auditory alarm

Night Illumination

Image compression method: H.265+ / H.265 / H.264+ / H.264 / MJPEG; Memory card slot: Support for Micro SD cards up to 512GB (not included)

Audio and Communication

Interface: 10/100 Base-T (RJ-45); ONVIF: Yes; WEB Server: Built-in; Max. number of on-line users: 6; Default IP address: 192.168.1.64

Compression and Archiving

Main stream: 20 fps @ 4 Mpx, 25 fps @ 1080p

Network and Protocols

Intelligent image analysis: Intelligent motion detection (with human and vehicle distinction), Video tampering detection

Transmission Speed

WDR - 120 dB - Wide Dynamic Range; 3D-DNR - Digital Noise Reduction; ROI - enhancement of selected image fragments; BLC - Back Light Compensation; HLC - High Light Compensation; Image rotation and mirror; Sharpness - Edge sharpening; Configurable privacy zones

Intelligent Analysis

Power supply: PoE (802.3af), 12 V DC / 660 mA; Power consumption: ≤ 9.5 W @ PoE, ≤ 8 W @ 12 V DC

Image Features

Housing: Dome, Metal + Plastic; Color: White; Ingress protection: IP67

Power Supply and Consumption

Operating temperature: -30 °C ... 60 °C

Construction and Resistance

Mobile access: Port: 8000 or P2P cloud, Android/iOS application Hik-Connect; Web access ports: 80; Access ports via PC application: Port: 8000 (iVMS-4200)

Operating Conditions

The Hik-Connect software is an advanced mobile platform that allows for instant viewing of images from cameras on smartphones and tablets. The application supports two-way voice communication, enables remote playback of recorded files, and receiving instant alarm notifications. iVMS-4200 for Windows and Mac systems is a professional tool for managing extensive video systems, offering full camera parameter configuration, advanced event searching, and object mapping. Both solutions are free and regularly updated, ensuring the highest level of security and user convenience.

Remote Access

1x IP Camera

1x Mounting kit

1x Quick Start Guide

Software

Dimensions, Weight

Product dimensions: 110 x 110 x 93 mm (D x W x H)

Package dimensions: 140 x 150 x 150 mm (D x W x H)

Product weight: 390 g

Weight with packaging: 590 g
