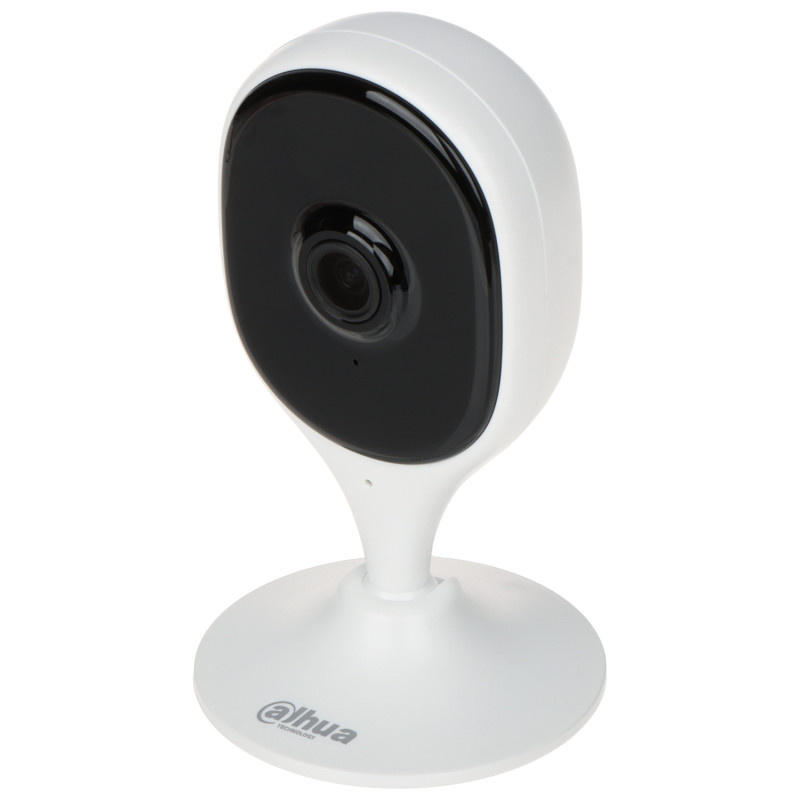

Dahua IP Wi-Fi Cube Camera 3 Mpx 2.8 mm 10m IR H.265 WDR Wi-Fi 6 IP66 Bluetooth DMSS P2P DAHUA C3A
zł150.55
Tax included
The Dahua C3A Cube A1 Wi-Fi IP camera is a professional monitoring solution housed in a compact, aesthetic Cube-type casing. Equipped with a high-class 3 Mpx sensor, it generates a detailed image with a resolution of 2304 x 1296 pixels, allowing for accurate identification of people and events. Thanks to the use of the modern Wi-Fi 6 (802.11ax) standard, the device provides a stable wireless connection with long range and high interference resistance, which is crucial in modern home and office installations. The main advantage of the model is the two-way audio transmission feature, thanks to the built-in microphone and speaker, making the camera ideal as a baby monitor or intercom.
Dahua IP Wi-Fi Cube Camera 3 Mpx 2.8 mm 10m IR H.265 WDR Wi-Fi 6 IP66 Bluetooth DMSS P2P
Model: DAHUA C3A
EAN: 6931240028414 SKU: 931028417
- High 3 Mpx resolution (2304 x 1296) for crystal-clear images
- Modern Wi-Fi 6 (802.11ax) connectivity for stability and speed
- Built-in microphone and speaker enabling two-way communication
- Intelligent motion detection with human and animal distinction
- IP66 ingress protection rating allowing for operation in harsh conditions
- IR illuminator with a range of up to 10 meters at night
- Wide 99-degree viewing angle thanks to a 2.8 mm lens
- Support for Micro SD cards up to 256 GB for local storage
- Fast configuration and pairing via Bluetooth module
- Remote P2P viewing in the free DMSS mobile app
Description
The Dahua C3A Cube A1 Wi-Fi IP camera is a professional monitoring solution housed in a compact, aesthetic Cube-type casing. Equipped with a high-class 3 Mpx sensor, it generates a detailed image with a resolution of 2304 x 1296 pixels, allowing for accurate identification of people and events. Thanks to the use of the modern Wi-Fi 6 (802.11ax) standard, the device provides a stable wireless connection with long range and high interference resistance, which is crucial in modern home and office installations. The main advantage of the model is the two-way audio transmission feature, thanks to the built-in microphone and speaker, making the camera ideal as a baby monitor or intercom.
Specification
Standard: IP; Resolution: 2304 x 1296 px - 3 Mpx; Frame rate: 25 fps @ 3 Mpx
Safety and functionality go hand in hand with advanced IVS image analytics, which can distinguish human and animal movement, minimizing the number of false alarms. The camera supports efficient H.265 compression, saving space on the Micro SD card (support for up to 256GB). The high IP66 ingress protection rating allows for installation in areas exposed to moisture, and the integrated IR illuminator with a 10-meter range guarantees clear viewing even in total darkness. The device is extremely easy to install thanks to the magnetic mount and fast Bluetooth pairing function, which allows the system to be up and running in minutes using the DMSS mobile app. This is a versatile tool that combines image precision with the convenience of wireless operation.
Sensor: 1/3.2 " Progressive Scan CMOS; Lens: 2.8 mm; Viewing angle: 99 °
Standard and Resolution
IR illuminator range: 10 m; Day/night mode: Automatic with ICR filter
Optics and Sensor
Image compression method: H.265; RTSP URL: rtsp://admin:password@192.168.1.108:554/cam/realmonitor?channel=1&subtype=0 (Main)
Night vision
Built-in microphone; Built-in speaker; Two-way audio support; Audio detection
Compression and Streaming
Wi-Fi interface: 2.4 GHz IEEE 802.11 b/g/n/ax (Wi-Fi 6); Fast pairing: Bluetooth; Wi-Fi range: up to 50 m (open space)
Audio
Access from phone: Android/iOS (DMSS app); App port: 37777. The DMSS (Digital Mobile Surveillance System) app is an advanced Dahua tool for managing monitoring systems from mobile devices. It enables live viewing, playback of recordings from an SD card, and receiving push notifications about detected motion or IVS events. It supports two-way audio communication, remote configuration of camera parameters, and sharing devices with other users. The intuitive interface allows for quick addition of cameras using QR codes and ensures a stable connection via the P2P cloud without the need for a static IP address.
Wireless connectivity
Functions: Intrusion, tripwire; Intelligent motion detection: Distinction of humans and animals
DMSS software
D-WDR - Digital Wide Dynamic Range; BLC - Back Light Compensation; Image rotation; Mirroring
Intelligent IVS analysis
Memory card slot: Micro SD card support up to 256GB (local storage)
Image processing
Power supply: 5 V DC / 1 A (Micro USB socket); Power consumption: 1.49 W (typical), max. 2.48 W
Mass storage
Casing: Plastic, white; Ingress protection: IP66; Operating temperature: -10 °C ... 45 °C
Power supply and power consumption
Default login: admin; Default IP: 192.168.1.108; Max. number of users: 20; Supported languages: English
Construction and environment
Dimensions: Ø 68 x 119 mm; Weight: 0.1 kg
Access and security
1x C3A Camera
1x Magnetic mount
1x 5V Power adapter
1x Power cable
1x Mounting kit
1x Quick start guide
Dimensions and weight
Dimensions, Weight
Product dimensions: 68 x 68 x 119 mm (D x W x H)
Package dimensions: 175 x 80 x 80 mm (D x W x H)
Product weight: 100 g
Weight with packaging: 274 g
