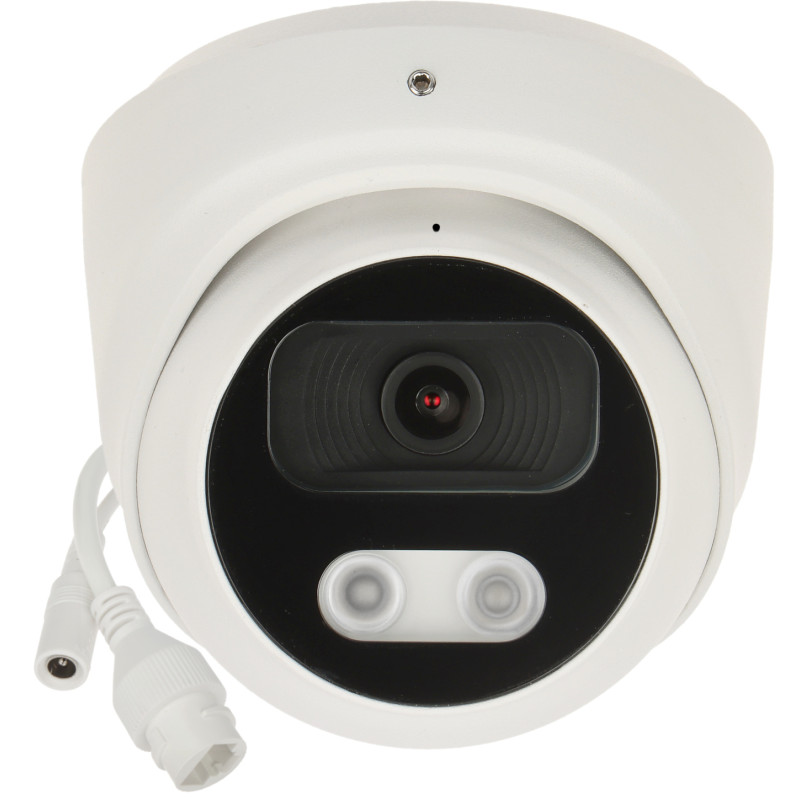

8MP IP Dome Camera 2.8mm IR 25m D-WDR PoE IP67 NDAA Fixed Lens Sony Starvis

Model: APTI APTI-AI803V2-28W

EAN: 6931240075593 SKU: 931075591

• High resolution 8 MP (3840 x 2160) for detailed images
• 1/2.8" SONY Starvis Back-illuminated CMOS high-sensitivity sensor
• Built-in IR illuminator with a range of up to 25 meters
• PoE (802.3af) or 12V DC power supply for versatile installation
• Advanced Intelligent Video Surveillance (IVS): intrusion, line crossing
• Built-in microphone for audio recording over network
• Durable metal housing with IP67 protection rating
• NDAA security certification compliant

Description

The APTI-AI803V2-28W IP camera is an advanced video surveillance solution that combines ultra-high 8 Megapixel resolution with modern intelligent video analysis features. The device is equipped with a high-class 1/2.8" SONY Starvis Back-illuminated CMOS sensor, which provides excellent sensitivity and high image quality even in difficult lighting conditions. With a resolution of 3840 x 2160 pixels, the camera captures every detail with incredible precision, which is crucial for identifying people or objects in the monitored area.

Specification

The main advantages of the product include support for the H.265+ compression standard, which significantly reduces network bandwidth requirements and hard drive storage space on the recorder while maintaining a crystal-clear image. The camera has a built-in IR illuminator with a range of up to 25 meters, enabling effective observation in total darkness. An additional advantage is the metal housing with IP67 rating, which makes the device completely resistant to the toughest weather conditions such as heavy rain or dust.

The camera supports advanced image enhancement functions such as D-WDR (Digital Wide Dynamic Range), which allows details to be extracted from overexposed and shaded parts of the scene, and 3D-DNR (Digital Noise Reduction), which eliminates image interference in low light. Users will also appreciate the built-in microphone, which allows for audio recording without the need for additional audio modules. The device is fully NDAA certified, confirming the security of the electronic components used. Power can be supplied traditionally from a 12V DC power adapter or via Ethernet network using PoE technology (802.3af), which significantly simplifies the installation process by reducing the number of cables required to a single twisted-pair cable.

Standard and Resolution

Standard: IP; Resolution: 3840 x 2160 - 8 Mpx, 2560 x 1440 - 3.7 Mpx, 1920 x 1080 - 1080p, 1280 x 720 - 720p

Sensor and Lens

Sensor: 1/2.8 " SONY Starvis Back-illuminated CMOS; Lens: 2.8 mm; Viewing angle: 106 °

Illuminator and Night Mode

IR illuminator range: 25 m; Type: Mechanical ICR infrared filter; Day/night mode

Compression and Streams

Image compression method: H.265+ / H.265 / H.264+ / H.264 / MJPEG; Main stream transmission speed: max. 20 fps @ 8 Mpx

Audio

Built-in microphone; Audio transmission over network; Audio codecs supported by network protocol

Network Interface

Connector: 10/100 Base-T (RJ-45); ONVIF protocol: version 19.12; Access ports: 80

Software and Applications

WEB Server: Built-in (port 80). Support via web browsers. Mobile phone access: Port 80 or P2P cloud. BitVision mobile application (Android/iOS) offers live preview, remote playback of recordings, push notifications, and camera parameter configuration. PC Software: iVMS320 allows for central system management, map creation, alarm handling, and archive management. SearchTool allows for quick IP address configuration in the local network.

Intelligent Video Surveillance (IVS)

Motion detection; Human and vehicle classification; Intrusion into area; Line crossing; Loitering detection; Crowd detection; Entrance/Exit of designated area

Image Functions

D-WDR - Digital Wide Dynamic Range; 3D-DNR - Digital Noise Reduction; Flicker Control - Technology to eliminate flickering; ROI - Quality improvement of selected segments; BLC - Backlight Compensation; HLC - High Light Compensation

Image Configuration

Privacy zones (3); Automatic White Balance (AWB); Mirror - Mirror image; Sharpness - Edge sharpening; Ability to change resolution, quality, and bandwidth

Network Parameters

Default IP address: 192.168.1.168; Default login: admin; Password: 123456; Maximum number of on-line users: 10; RTSP URL: rtsp://user:password@ip_address:80/0

Power Supply and Consumption

Power supply: PoE (802.3af), 12 V DC / 700 mA; Power consumption: ≤ 8.4 W

Design and Housing

Type: Dome; Material: Metal; Color: White; Protection class: IP67 (resistance to water and dust)

Operating Environment

Working temperature: -20 °C ... 60 °C; Relative humidity: up to 95%

Dimensions, Weight

Product dimensions: 97 x 97 x 91 mm (D x W x H)

Package dimensions: 110 x 110 x 100 mm (D x W x H)

Product weight: 480 g

Weight with packaging: 558 g
