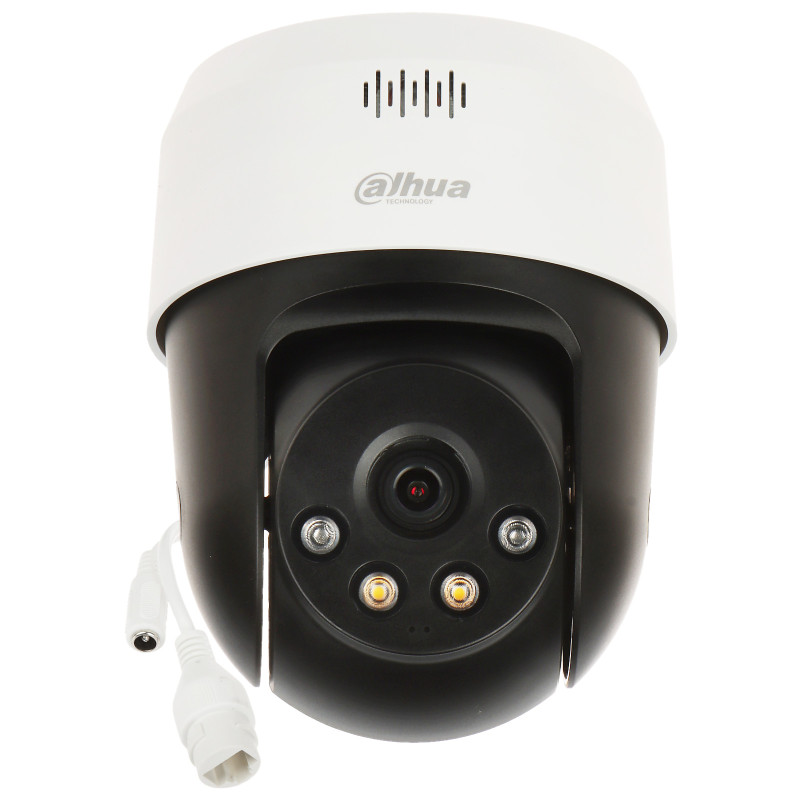

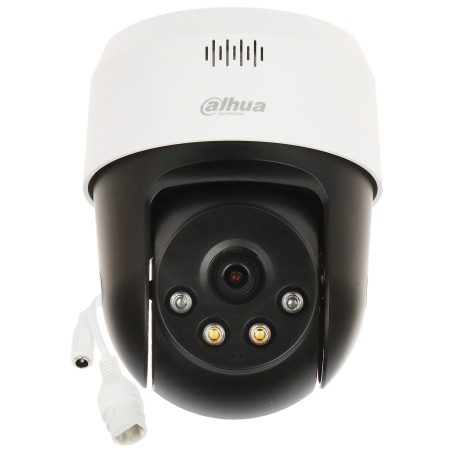

Dahua WizSense 5MP 4mm AI Smart Dual Light PTZ IP Camera

Model: DAHUA SD2A500NB-GNY-A-PV

EAN: 6931240023532 SKU: 931023537

• High 5MP resolution for detailed imagery 2560 x 1920
• Smart Dual Light technology - IR and LED range up to 30 meters
• Intelligent WizSense analysis - human and vehicle classification (SMD 3.0)
• Active deterrence - built-in spotlight and alarm siren
• PoE (802.3af) or 12V DC power supply for greater flexibility
• Full PTZ control (Pan 345°, Tilt 80°)
• Built-in microphone and speaker for two-way audio
• IP66 ingress protection rating - rain and dust resistant housing
• MicroSD card slot supporting media up to 256 GB
• Integrated heater with thermostat for stable operation in freezing weather

Description

The modern Dahua SD2A500NB-GNY-A-PV WizSense series PTZ IP camera is an advanced outdoor surveillance tool that combines high 5MP resolution with intelligent Smart Dual Light technology. The device captures crystal clear images in any condition, offering both Infrared (IR) and white light modes that activate automatically upon intruder detection.

The camera features active deterrence using light and sound signals to discourage unauthorized persons from entering protected areas. With integrated Artificial Intelligence (AI) algorithms, the camera precisely recognizes human silhouettes and vehicles, eliminating false alarms caused by animals or plant movement.

The device design ensures full weather resistance with an IP66 rating, combined with a built-in heater and thermostat to guarantee reliable operation in temperatures from -30°C to 55°C. The PoE (Power over Ethernet) system simplifies installation, allowing data and power transmission via a single network cable. The camera supports two-way audio with a built-in microphone and speaker, enabling interaction with individuals within the lens range.

Specification

Standard and Matrix

Standard: IP; Sensor: 1/2.8 " STARVIS™ CMOS; Resolution: 2560 x 1920 (5 MP), 2560 x 1440 (3.7 MP), 2304 x 1296 (3 MP), 1920 x 1080 (1080p), 1280 x 720 (720p)

Optics

Lens: 4 mm; Viewing angle: 80 °; Optical zoom: None; Digital zoom: None

Night Illumination

IR illuminator range: 30 m; White light (LED) illuminator range: 30 m; Smart Dual Light mode: Automatic IR/LED switching upon object detection

PTZ Mechanics

Horizontal rotation range: 0 ° ... 345 ° (limited by limit switch); Vertical rotation range: 0 ° ... 80 °; Rotation speed (manual): 0.1 °/s ... 74 °/s (horizontal), 0.1 °/s ... 36 °/s (vertical); Preset speed: 62 °/s (horizontal), 36 °/s (vertical); Number of presets: 300

Compression and Video

Compression method: H.265+ / H.265 / H.264+ / H.264 / MJPEG; Main stream transmission speed: 25 fps @ 5 MP

Audio

Built-in microphone: Yes; Built-in speaker: Yes; Communication: Two-way; Codecs: AAC; Sound detection function: Yes

Network and Protocols

Network interface: RJ-45 10/100 Base-T; ONVIF: 21.06; WEB Server: Built-in; Max. number of on-line users: 20; Default IP address: 192.168.1.108; Access ports: 80, 37777; RTSP: rtsp://admin:password@192.168.1.108:554/cam/realmonitor?channel=1&subtype=0

Intelligent Analysis IVS

AI features: SMD 3.0 - searching for people and vehicles; Line crossing; Intrusion; Intelligent motion detection

Image Functions

D-WDR - Wide Dynamic Range; 2D-DNR, 3D-DNR - Digital Noise Reduction; F-DNR (Defog) - Atmospheric noise reduction; ROI - Improving quality of selected areas; BLC/HLC - Backlight and highlight compensation; ICR - Mechanical IR filter; Mirror - Mirror image; Configurable privacy zones

Active Deterrence

Light alarm: LED spotlight; Sound alarm: Siren / Voice messages; Action: Automatic after intruder detection by IVS/SMD

Storage and Memory

Memory card slot: Supports Micro SD cards up to 256GB (card not included)

Operating Parameters

Ingress protection rating: IP66; Operating temperature: -30 °C ... 55 °C; Heater: Built-in with thermostat

Power Supply and Consumption

Power supply: PoE (802.3af), 12 V DC / 1090 mA; Power consumption: Typically ≤ 3.5 W, Maximum 9 W

Design

Housing: Speed Dome, Plastic; Color: White and black; Weight: 0.44 kg; Dimensions: Ø 111 x 140.5 mm (without bracket)

Software

DMSS (Digital Mobile Surveillance System) is a dedicated Dahua application for Android and iOS systems, enabling professional security system management from a smartphone. The software offers instant live preview in high resolution, remote playback of recordings from an SD card, and full control over PTZ functions for rotating cameras. Thanks to Push notifications, the user receives instant alerts about motion detection or AI (WizSense) events. The application supports P2P cloud connections, eliminating the need for a static IP address, and allows two-way voice communication via the speaker and microphone built into the camera. The interface is clear, intuitive, and allows for the operation of multiple devices simultaneously.

Content

1x IP Camera

1x Integrated wall bracket

1x Mounting accessory kit

1x Quick start guide

Dimensions, Weight

Product dimensions: 111 x 111 x 141 mm (D x W x H)

Packaging dimensions: 180 x 180 x 160 mm (D x W x H)

Product weight: 440 g

Weight with packaging: 850 g

Zum Download

• User Manual
• CE Declaration
• SAFETY COMPLIANCE
