Buffer Tank Temperature Sensor Tbt1 Tbt2 Midea M-Thermal Heat Pump 8m

Model: ACTii AC1680

EAN: 6931240016800 SKU: 168050108

• High-quality precision temperature sensor
• Uses a specialized flexible copper control cable BiT LiYY 2x0.5mm, voltage: 300/300V, operating temperature: -40℃ to 80℃ compliant with EU standard: LVD 2014/35/EU
• Sensor housed in a stainless steel sleeve, diameter: 6mm, length: 50mm
• Every sensor is tested at 3 different temperatures to ensure measurement accuracy compared to a reference sensor.
• Water protection - Sensor coated with high-temperature flexible silicone. Leakage is a common issue with temperature sensors, leading to damage from moisture.
• Our temperature sensors are of superior quality. Unlike the competition, we only use 100% thick copper certified control cable manufactured in the EU with thick and flexible insulation. We use branded sensors. Every sensor is checked by us for measurement accuracy against a reference sensor.
• Sensor finished with a connector that fits the socket on the heat pump motherboard. Connecting the sensor only requires plugging it into the appropriate spot on the motherboard.

Description

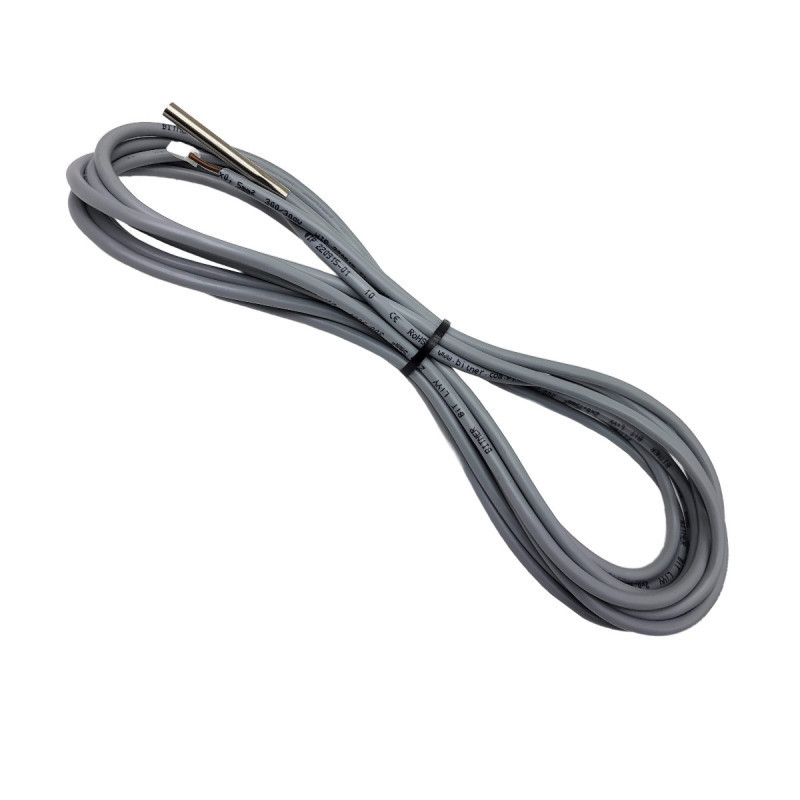

Buffer tank temperature sensor Tbt1 Tbt2, designed for Midea heat pumps (Tbt1 - Upper part of the buffer tank, Tbt2 - Lower part of the buffer tank)

Sensor designed for all Midea M-Thermal series heat pumps

Sensor cable length: 8m

Sensor finished with a connector compatible with the socket on the heat pump motherboard. Connecting the sensor only requires plugging it into the appropriate spot on the motherboard.

Lack of seal is a common problem with temperature sensors, resulting in damage due to moisture. Our sensors provide water protection - the sensor is coated with high-temperature flexible silicone.

Specification

Sensor Parameters

Sensor compatible with Midea M-Thermal series

Application: Midea Heat Pumps

Sensor measuring range: from -40 to +400 °C

Ingress protection: IP68

Sensor housed in a sleeve with diameter: 6mm and length: 50mm, made of stainless steel

Cable termination: Plastic connector compatible with the socket on the heat pump motherboard.

Cable length: 8m (315 inches)

Cable Parameters

Cable parameters:

Cable type: Control / Signal cable

Operating voltage: 300/300V

Voltage test: ≤ 0.34mm2 1200 V , ≥ 0.5 mm2 1500 V

Insulation resistance: 20 MΩ x km

Capacitance: (at 800Hz): 0.14mm2 120pF/m, ≥0.25 mm2 150pF/m

Inductance: 0.65 mH/km

Min. bending radius flexible connection: 7.5 x Ø

Min. bending radius fixed connection: 4 x Ø

Operating temperature: Fixed installation: -40℃ to 80℃ , Flexible installations: -5℃ to 80℃

Laying conditions: Indoor cable, Min. installation temperature: -5℃

Environmental resistance: Flame retardant on a single cable

Certificates / Approvals: CPR - Certificates / DoP

Cable construction:

Conductor material: Copper conductors

Working conductor structure: Class 5 (per EN 60228, IEC 60228)

Core construction: multi-core cable

Application: Cables designed for control and signaling circuits in industrial applications, measurement technology, and for data transmission via analog and digital signals in industrial electronics and automation installations. For fixed installation and mobile devices. Suitable for indoor operation, in dry and damp rooms.

Other Information

Our range includes temperature sensors with different cable lengths

Set contents

Temperature sensor with 8m cable

Certificates and standards

CE, RoHS

Dimensions, Weight

Product dimensions: 50 x 200 x 200 mm (Depth x Width x Height)

Package dimensions: 100 x 200 x 50 mm (Depth x Width x Height)

Product weight: 250 g

Weight with packaging: 270 g
